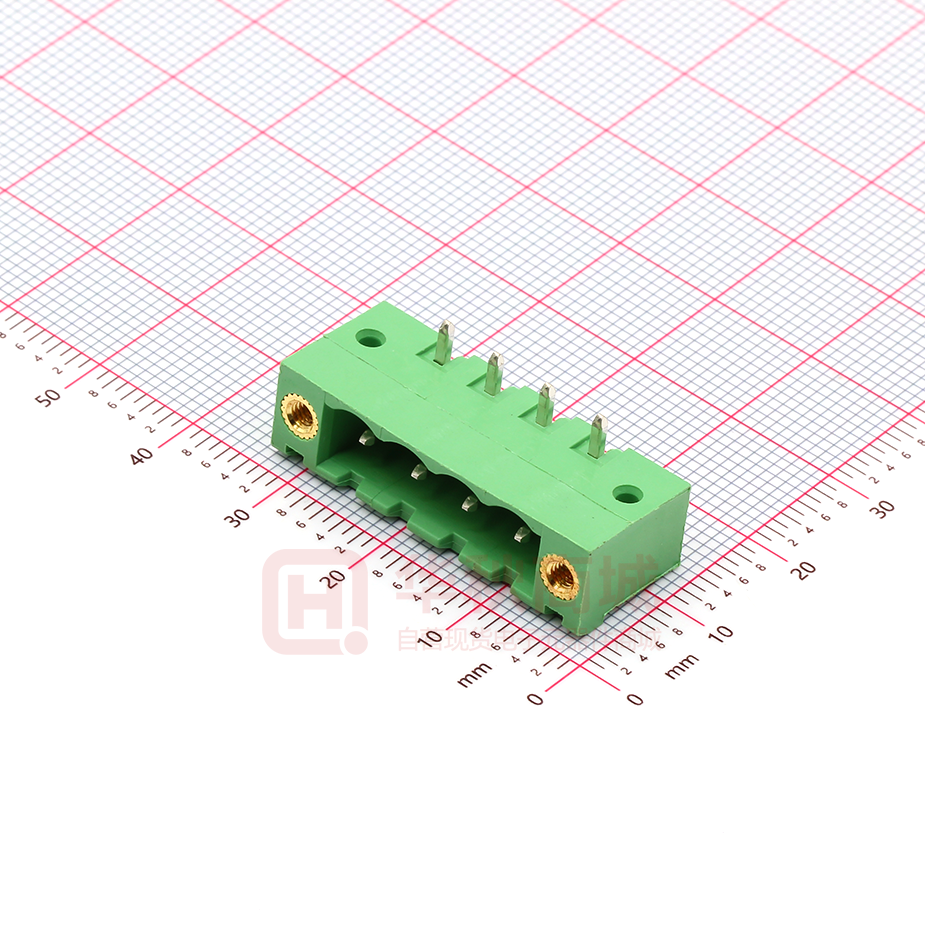

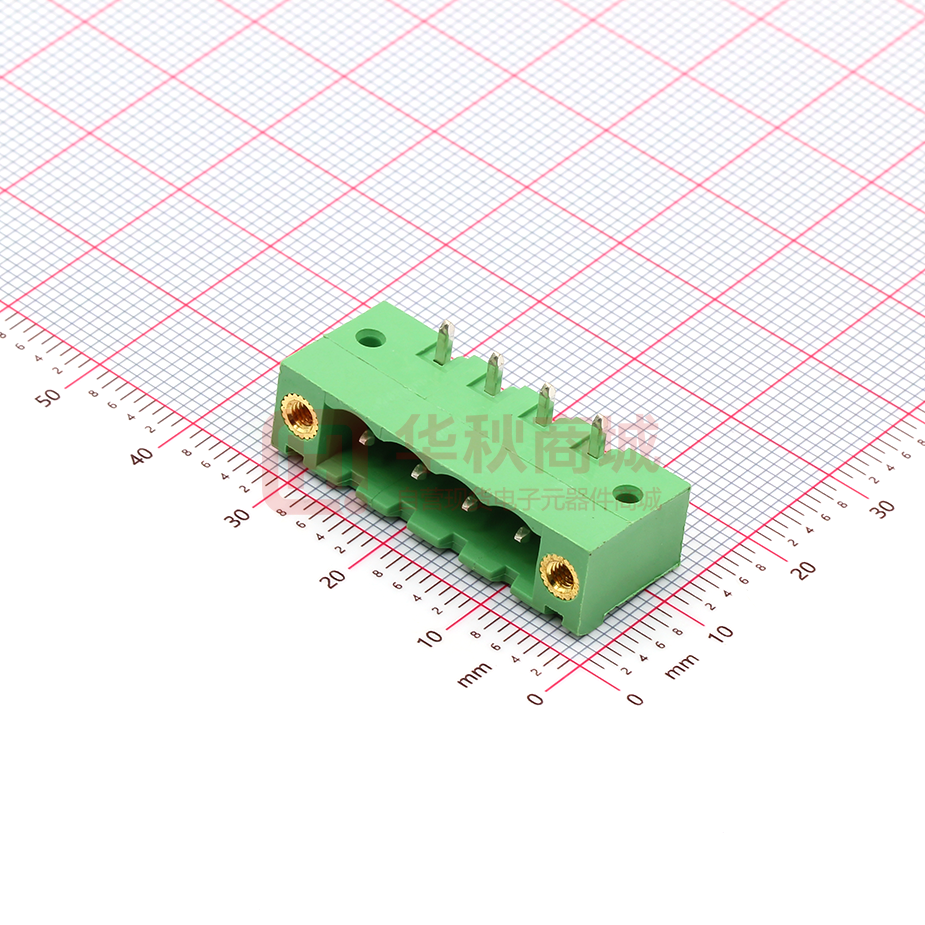

https://www.phoenixcontact.com/us/products/1776524 Feed-through header - MSTB 2,5/ 4-GF-5,08 - 1776524 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB headers, nominal current: 12 A, number of positions: 4, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering The figure shows a 10-position version of the product Your advantages  Maximum flexibility when it comes to device design – one header for connectors with different connection technologies  Easy PCB replacement thanks to plug-in modules  Well-known mounting principle allows worldwide use  Plug-in direction parallel to the PCB  Screwable flange for superior mechanical stability Key Commercial Data Packing unit 1 pc GTIN GTIN 4017918038694 Weight per Piece (excluding packing) 3.410 g Custom tariff number 85366930 Country of origin Germany Technical data Dimensions Length [ l ] 12 mm Width 30.48 mm Pitch 5.08 mm Dimension a 15.24 mm 09/06/2019   Page 1 / 12 https://www.phoenixcontact.com/us/products/1776524 Feed-through header - MSTB 2,5/ 4-GF-5,08 - 1776524 Technical data Dimensions Width [ w ] 30.48 mm Height [ h ] 12.1 mm Height 8.6 mm Length of the solder pin 3.5 mm Pin dimensions 1 x 1 mm Length 12 mm General Range of articles MSTB 2,5/..-GF Insulating material group IIIa Rated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/3) 250 V Rated voltage (III/2) 320 V Rated voltage (II/2) 400 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Maximum load current 12 A Insulating material PBT Flammability rating according to UL 94 V0 Color green Number of positions 4 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Environmental Product Compliance Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings 09/06/2019   Page 2 / 12 https://www.phoenixcontact.com/us/products/1776524 Feed-through header - MSTB 2,5/ 4-GF-5,08 - 1776524 Drilling diagram 09/06/2019   Page 3 / 12 https://www.phoenixcontact.com/us/products/1776524 Feed-through header - MSTB 2,5/ 4-GF-5,08 - 1776524 Diagram Type: FKCT 2,5/...-STF-5,08 with MSTB 2,5/...-GF-5,08 Diagram Type: MVSTBR 2,5/...-STF-5,08 with MSTB 2,5/...-GF-5,08 09/06/2019   Page 4 / 12 https://www.phoenixcontact.com/us/products/1776524 Feed-through header - MSTB 2,5/ 4-GF-5,08 - 1776524 Diagram Type: MSTBT 2,5/...-STF-5,08 with MSTB 2,5/...-GF-5,08 Diagram Type: FRONT-MSTB 2,5/...-STF-5,08 with MSTB 2,5/...-GF-5,08 09/06/2019   Page 5 / 12 https://www.phoenixcontact.com/us/products/1776524 Feed-through header - MSTB 2,5/ 4-GF-5,08 - 1776524 Dimensional drawing Classifications eCl@ss eCl@ss 4.0 27260700 eCl@ss 4.1 27260700 eCl@ss 5.0 27260700 eCl@ss 5.1 27260700 eCl@ss 6.0 27260700 eCl@ss 7.0 27440402 eCl@ss 8.0 27440402 eCl@ss 9.0 27440402 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002637 ETIM 5.0 EC002637 ETIM 6.0 EC002637 ETIM 7.0 EC002637 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 09/06/2019   Page 6 / 12 https://www.phoenixcontact.com/us/products/1776524 Feed-through header - MSTB 2,5/ 4-GF-5,08 - 1776524 Classifications UNSPSC UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals DNV GL / CSA / RS / IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized Ex Approvals Approval details DNV GL    https://approvalfinder.dnvgl.com/  TAE00001EY CSA    http://www.csagroup.org/services-industries/product-listing/  13631   B D Nominal voltage UN 300 V 300 V Nominal current IN 10 A 10 A RS    http://www.rs-head.spb.ru/en/index.php  17.00014.272 IECEE CB Scheme    http://www.iecee.org/  DE1-60988-B1B2     Nominal voltage UN 250 V Nominal current IN 12 A 09/06/2019   Page 7 / 12 https://www.phoenixcontact.com/us/products/1776524 Feed-through header - MSTB 2,5/ 4-GF-5,08 - 1776524 Approvals VDE Gutachten mit Fertigungsüberwachung    http://www2.vde.com/de/Institut/Online-Service/ VDE-gepruefteProdukte/Seiten/Online-Suche.aspx     Nominal voltage UN 250 V Nominal current IN 12 A  40004701 EAC      B.01742 cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E60425-19931011   B D Nominal voltage UN 300 V 150 V Nominal current IN 15 A 15 A Accessories Accessories Coding element Coding section - CR-MSTB - 1734401 Coding section, inserted into the recess in the header or the inverted plug, red insulating material     Filler plug Accessories - MSTB-BL - 1755477 Keying cap, for forming sections, plugs onto header pin, green insulating material     09/06/2019   Page 8 / 12 https://www.phoenixcontact.com/us/products/1776524 Feed-through header - MSTB 2,5/ 4-GF-5,08 - 1776524 Accessories Labeled terminal marker Marker card - SK 5,08/3,8:FORTL.ZAHLEN - 0804293 Marker card, Card, white, labeled, Horizontal: consecutive numbers 1 ... 10, 11 ... 20, etc. up to 91 ... (99)100, mounting type: adhesive, for terminal block width: 5.08 mm, lettering field size: 5.08 x 3.8 mm     Additional products Printed-circuit board connector - TVMSTB 2,5/ 4-STF-5,08 - 1719118 PCB connector, nominal current: 12 A, number of positions: 4, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, color: green, contact surface: Tin     Printed-circuit board connector - FKCN 2,5/ 4-STF-5,08 - 1754814 PCB connector, nominal current: 12 A, number of positions: 4, pitch: 5.08 mm, connection method: Push-in spring connection, color: green, contact surface: Tin     Printed-circuit board connector - FRONT-MSTB 2,5/ 4-STF-5,08 - 1777824 PCB connector, nominal current: 12 A, number of positions: 4, pitch: 5.08 mm, connection method: Front screw connection, color: green, contact surface: Tin     Printed-circuit board connector - MSTB 2,5/ 4-STF-5,08 - 1778001 PCB connector, nominal current: 12 A, number of positions: 4, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, color: green, contact surface: Tin     09/06/2019   Page 9 / 12 https://www.phoenixcontact.com/us/products/1776524 Feed-through header - MSTB 2,5/ 4-GF-5,08 - 1776524 Accessories Printed-circuit board connector - MSTBT 2,5/ 4-STF-5,08 - 1805327 PCB connector, nominal current: 12 A, number of positions: 4, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, color: green, contact surface: Tin     Printed-circuit board connector - MSTBC 2,5/ 4-STZF-5,08 - 1809750 PCB connector, nominal current: 12 A, number of positions: 4, pitch: 5.08 mm, connection method: Crimp connection, color: green, Corresponding female crimp contacts with current [A] and conductor cross section range [mm²] data: 10A/MSTBC-MT 0,5-1,0 (3190564); 10A/MSTBC-MT 0,5-1,0 BA (3190645); 12A/MSTBC-MT 1,5-2,5 (3190551); 12A/ MSTBC-MT 1,5-2,5 BA (3190658). BA = Bandkontakte     Printed-circuit board connector - MVSTBW 2,5/ 4-STF-5,08 - 1834929 PCB connector, nominal current: 12 A, number of positions: 4, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, color: green, contact surface: Tin     Printed-circuit board connector - MVSTBR 2,5/ 4-STF-5,08 - 1835119 PCB connector, nominal current: 12 A, number of positions: 4, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, color: green, contact surface: Tin     Printed-circuit board connector - TMSTBP 2,5/ 4-STF-5,08 - 1853120 PCB connector, nominal current: 12 A, number of positions: 4, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, color: green, contact surface: Tin, The plug allows conductors to be looped through from module to module.     09/06/2019   Page 10 / 12 https://www.phoenixcontact.com/us/products/1776524 Feed-through header - MSTB 2,5/ 4-GF-5,08 - 1776524 Accessories Printed-circuit board connector - FKC 2,5/ 4-STF-5,08 - 1873223 PCB connector, nominal current: 12 A, number of positions: 4, pitch: 5.08 mm, connection method: Push-in spring connection, color: green, contact surface: Tin     Printed-circuit board connector - FKCVW 2,5/ 4-STF-5,08 - 1873825 PCB connector, nominal current: 12 A, number of positions: 4, pitch: 5.08 mm, connection method: Push-in spring connection, color: green, contact surface: Tin     Printed-circuit board connector - FKCVR 2,5/ 4-STF-5,08 - 1874125 PCB connector, nominal current: 12 A, number of positions: 4, pitch: 5.08 mm, connection method: Push-in spring connection, color: green, contact surface: Tin     Printed-circuit board connector - QC 1/ 4-STF-5,08 - 1883378 PCB connector, nominal current: 10 A, number of positions: 4, pitch: 5.08 mm, connection method: Displacement connection, color: green, contact surface: Tin     Printed-circuit board connector - FKCT 2,5/ 4-STF-5,08 - 1902327 PCB connector, nominal current: 12 A, number of positions: 4, pitch: 5.08 mm, connection method: Push-in spring connection, color: green, contact surface: Tin     09/06/2019   Page 11 / 12 https://www.phoenixcontact.com/us/products/1776524 Feed-through header - MSTB 2,5/ 4-GF-5,08 - 1776524 Accessories Printed-circuit board connector - TFKC 2,5/ 4-STF-5,08 - 1962710 PCB connector, nominal current: 12 A, number of positions: 4, pitch: 5.08 mm, connection method: Push-in spring connection, color: green, contact surface: Tin     Printed-circuit board connector - SMSTB 2,5/ 4-STF-5,08 - 1971086 PCB connector, nominal current: 12 A, number of positions: 4, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, color: green, contact surface: Tin     Printed-circuit board connector - FKCS 2,5/ 4-STF-5,08 - 1975286 PCB connector, nominal current: 12 A, number of positions: 4, pitch: 5.08 mm, connection method: Push-in spring connection, color: green, contact surface: Tin     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 09/06/2019   Page 12 / 12
