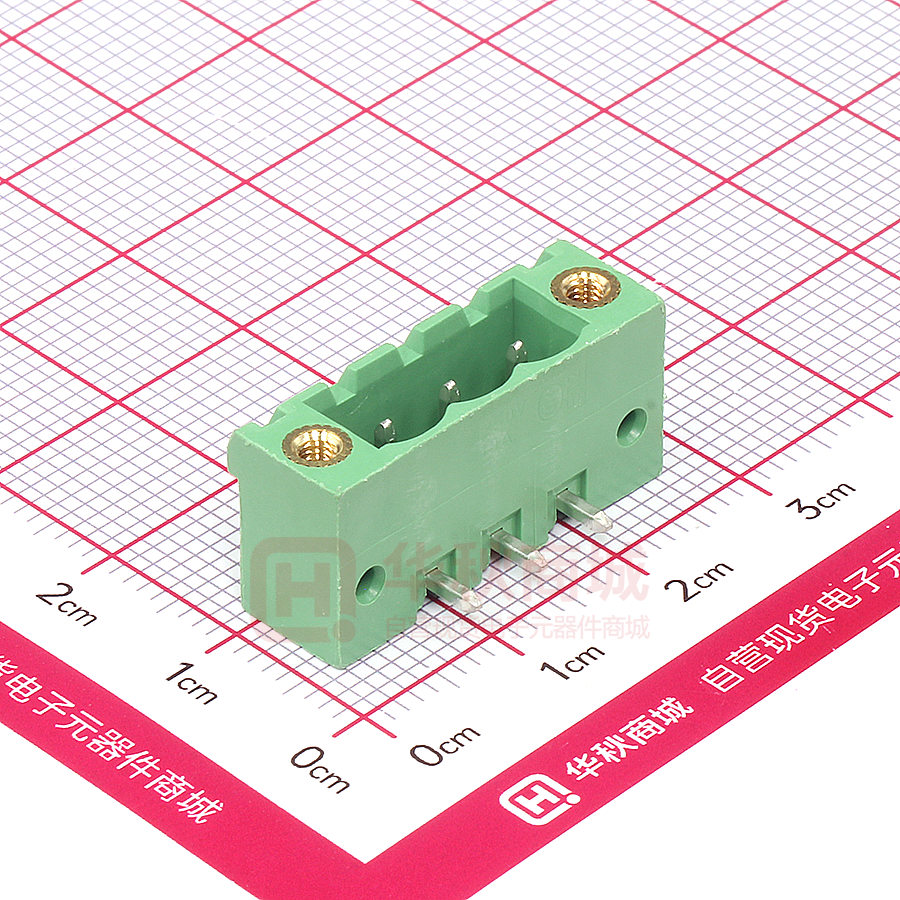

https://www.phoenixcontact.com/us/products/1776702 Base strip - MSTB 2,5/ 3-GF - 1776702 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5 mm, Color: green, Contact surface: Tin, Mounting: Wave soldering The figure shows a 10-position version of the product Product Features ■ ■ ■ ■ Other pin lengths available on request Plug-in direction parallel to the conductor axis W type with stand-off Standard pin strip for 320 V (III/2) Key Commercial Data Packing unit 1 pc GTIN Weight per Piece (excluding packing) 2.96 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length 12 mm Pitch 5.00 mm Dimension a 10 mm Width 25 mm Constructional height 8.6 mm 04/20/2016   Page 1 / 8 https://www.phoenixcontact.com/us/products/1776702 Base strip - MSTB 2,5/ 3-GF - 1776702 Technical data Dimensions Height 12.1 mm Length of the solder pin 3.5 mm Pin dimensions 1 x 1 mm Hole diameter 1.4 mm General Range of articles MSTB 2,5/..-GF Insulating material group IIIa Rated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/3) 250 V Rated voltage (III/2) 320 V Rated voltage (II/2) 400 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Maximum load current 12 A Insulating material PBT Flammability rating according to UL 94 V0 Color green Number of positions 3 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 eCl@ss 8.0 27440402 eCl@ss 9.0 27440402 04/20/2016   Page 2 / 8 https://www.phoenixcontact.com/us/products/1776702 Base strip - MSTB 2,5/ 3-GF - 1776702 Classifications ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002637 ETIM 5.0 EC002637 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals CSA / VDE Gutachten mit Fertigungsüberwachung / GL / RS / IECEE CB Scheme / EAC / cULus Recognized / EAC Ex Approvals Approvals submitted Approval details CSA    B D Nominal current IN 15 A 10 A Nominal voltage UN 300 V 300 V VDE Gutachten mit Fertigungsüberwachung      Nominal current IN 12 A 04/20/2016   Page 3 / 8 https://www.phoenixcontact.com/us/products/1776702 Base strip - MSTB 2,5/ 3-GF - 1776702 Approvals     Nominal voltage UN 250 V GL  RS  IECEE CB Scheme      Nominal current IN 12 A Nominal voltage UN 250 V EAC  cULus Recognized    B D Nominal current IN 15 A 15 A Nominal voltage UN 300 V 150 V EAC  Accessories Accessories Coding element Coding star - CR-MSTB - 1734401 Coding section, inserted into the recess in the header or the inverted plug, red insulating material     Filler plug 04/20/2016   Page 4 / 8 https://www.phoenixcontact.com/us/products/1776702 Base strip - MSTB 2,5/ 3-GF - 1776702 Accessories Accessories - MSTB-BL - 1755477 Keying cap, for forming sections, plugs onto header pin, green insulating material     Labeled terminal marker Marker card - SK 5/3,8:FORTL.ZAHLEN - 0804183 Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100, Mounting type: Adhesive, for terminal block width: 5 mm, Lettering field: 5 x 3.8 mm     Additional products Plug - QC 1,5/ 3-STF - 1718122 Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 3, Pitch: 5 mm, Connection method: Displacement connection, Color: green, Contact surface: Tin     Printed-circuit board connector - FKCN 2,5/ 3-STF - 1732975 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5 mm, Connection method: Push-in spring connection, Color: green, Contact surface: Tin     Printed-circuit board connector - FRONT-MSTB 2,5/ 3-STF - 1779657 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5 mm, Connection method: Front screw connection, Color: green, Contact surface: Tin     04/20/2016   Page 5 / 8 https://www.phoenixcontact.com/us/products/1776702 Base strip - MSTB 2,5/ 3-GF - 1776702 Accessories Printed-circuit board connector - MSTB 2,5/ 3-STF - 1786844 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5 mm, Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin     Printed-circuit board connector - MVSTBW 2,5/ 3-STF - 1835290 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5 mm, Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin     Printed-circuit board connector - MVSTBR 2,5/ 3-STF - 1835481 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5 mm, Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin     Printed-circuit board connector - FKCT 2,5/ 3-STF - 1909414 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5 mm, Connection method: Push-in spring connection, Color: green, Contact surface: Tin     Printed-circuit board connector - FKCVR 2,5/ 3-STF - 1909896 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5 mm, Connection method: Push-in spring connection, Color: green, Contact surface: Tin     04/20/2016   Page 6 / 8 https://www.phoenixcontact.com/us/products/1776702 Base strip - MSTB 2,5/ 3-GF - 1776702 Accessories Printed-circuit board connector - FKCVW 2,5/ 3-STF - 1910212 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5 mm, Connection method: Push-in spring connection, Color: green, Contact surface: Tin     Printed-circuit board connector - FKC 2,5/ 3-STF - 1910539 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5 mm, Connection method: Push-in spring connection, Color: green, Contact surface: Tin     Printed-circuit board connector - SMSTB 2,5/ 3-STF - 1970883 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5 mm, Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin     Printed-circuit board connector - FKCS 2,5/ 3-STF - 1974931 Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 3, Pitch: 5 mm, Connection method: Push-in spring connection, Color: green, Contact surface: Tin     Drawings 04/20/2016   Page 7 / 8 https://www.phoenixcontact.com/us/products/1776702 Base strip - MSTB 2,5/ 3-GF - 1776702 Drilling diagram a 5 Dimensional drawing 7,5 22 5 a+15 2,4 3,5 2,5 8,6 15 2 1,4 12 2,5 2 5 5 a Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 04/20/2016   Page 8 / 8 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Phoenix Contact: 1776702
