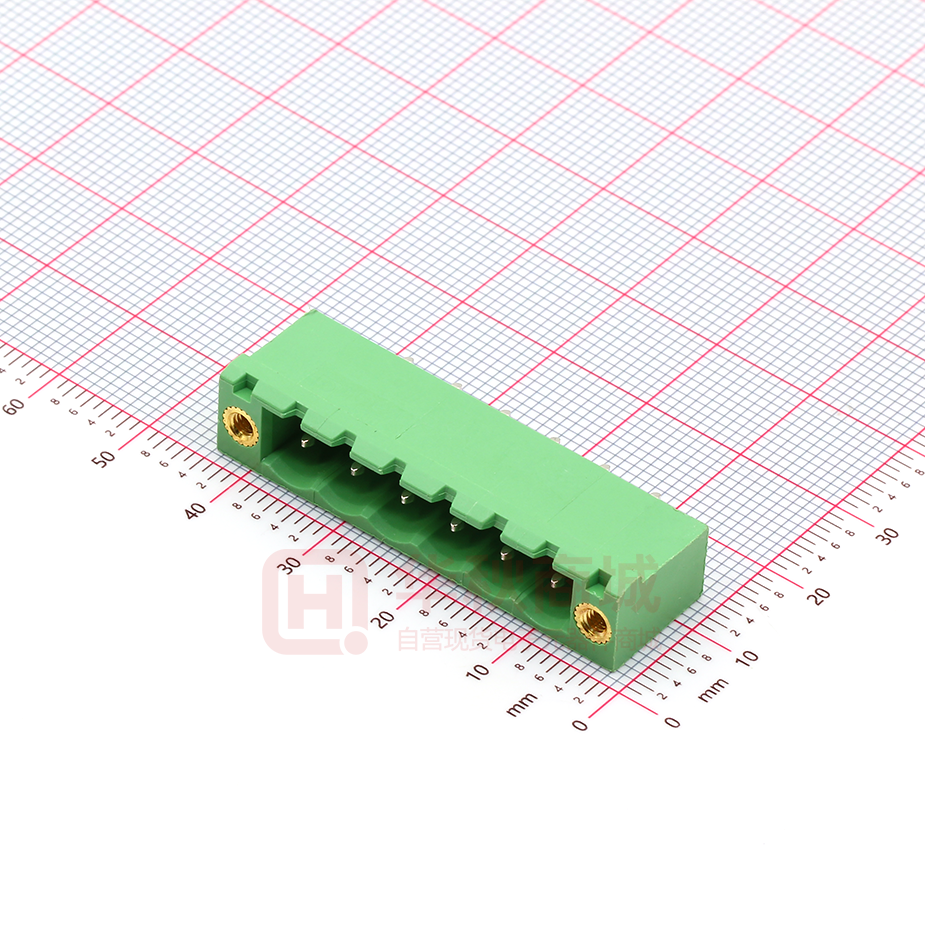

https://www.phoenixcontact.com/us/products/1777112 Base strip - MSTBV 2,5/ 6-GF-5,08 - 1777112 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 6, Pitch: 5.08 mm, Color: green, Contact surface: Tin, Mounting: Wave soldering The figure shows a 10-position version of the product Product Features ■ ■ Versions with threaded flange Plug-in direction vertical to the PCB Key Commercial Data Packing unit 1 pc GTIN Weight per Piece (excluding packing) 4.2 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length 8.6 mm Pitch 5.08 mm Dimension a 25.4 mm Width 40.64 mm Constructional height 12 mm Height 15.9 mm Length of the solder pin 3.9 mm 03/14/2016   Page 1 / 5 https://www.phoenixcontact.com/us/products/1777112 Base strip - MSTBV 2,5/ 6-GF-5,08 - 1777112 Technical data Dimensions Pin dimensions 1 x 1 mm Hole diameter 1.4 mm General Range of articles MSTBV 2,5/..-GF Insulating material group IIIa Rated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/3) 250 V Rated voltage (III/2) 320 V Rated voltage (II/2) 400 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Maximum load current 12 A Insulating material PBT Flammability rating according to UL 94 V0 Color green Number of positions 6 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 eCl@ss 8.0 27440402 eCl@ss 9.0 27440402 03/14/2016   Page 2 / 5 https://www.phoenixcontact.com/us/products/1777112 Base strip - MSTBV 2,5/ 6-GF-5,08 - 1777112 Classifications ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002637 ETIM 5.0 EC002637 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals CSA / VDE Gutachten mit Fertigungsüberwachung / GL / RS / IECEE CB Scheme / EAC / cULus Recognized Ex Approvals Approvals submitted Approval details CSA    B D Nominal current IN 12 A 10 A Nominal voltage UN 300 V 300 V VDE Gutachten mit Fertigungsüberwachung      Nominal current IN 12 A 03/14/2016   Page 3 / 5 https://www.phoenixcontact.com/us/products/1777112 Base strip - MSTBV 2,5/ 6-GF-5,08 - 1777112 Approvals     Nominal voltage UN 250 V GL  RS  IECEE CB Scheme      Nominal current IN 12 A Nominal voltage UN 250 V EAC  cULus Recognized    B D Nominal current IN 12 A 10 A Nominal voltage UN 300 V 300 V Drawings Drilling diagram a 7,62 5,08 3,8 5,08 2,4 Diagram 1,4 Type: TVMSTB 2,5/...-STF-5,08 with MSTBV 2,5/...-GF-5,08 03/14/2016   Page 4 / 5 https://www.phoenixcontact.com/us/products/1777112 Base strip - MSTBV 2,5/ 6-GF-5,08 - 1777112 15 a+15,24 " 40 60 22 ! 12 24 22 20 18 16 14 12 10 ! = 2-pos. 8 6 " = 5-pos. 4 # = 10-pos. 2 0 0 20 Dimensional drawing # 80 100 Ambient temperature [°C] 3,9 Current strength [A] Diagram 3,8 5,08 8,6 5,08 a 7,62 Type: TFKC 2,5/...-STF-5,08 with MSTBV 2,5/...-GF-5,08 Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 03/14/2016   Page 5 / 5
