1777206

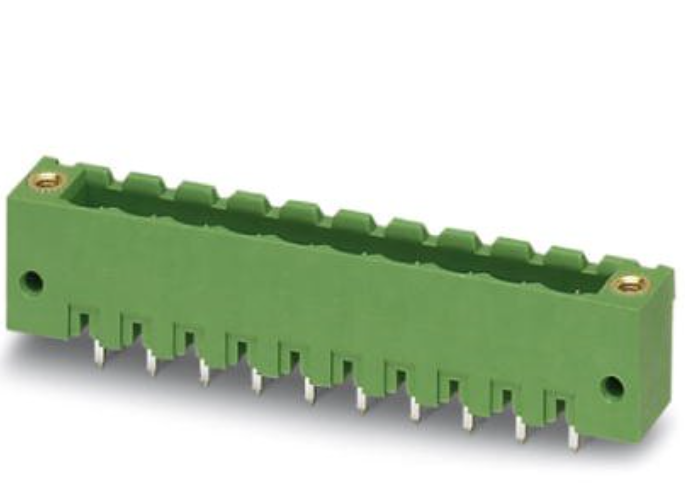

https://www.phoenixcontact.com/us/products/1777206 Base strip - MSTBV 2,5/15-GF-5,08 - 1777206 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Header, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 15, Pitch: 5.08 mm, Color: green, Contact surface: Tin, Mounting: Soldering The figure shows a 10-position version of the product Product Features  Versions with threaded flange  Plug-in direction vertical to the PCB   Key Commercial Data Packing unit 1 pc GTIN Weight per Piece (excluding packing) 7.98 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length 8.6 mm Pitch 5.08 mm Dimension a 71.12 mm Width 86.36 mm Constructional height 12 mm Height 15.9 mm Length of the solder pin 3.9 mm Pin dimensions 1 x 1 mm Hole diameter 1.4 mm 11/25/2015   Page 1 / 5 https://www.phoenixcontact.com/us/products/1777206 Base strip - MSTBV 2,5/15-GF-5,08 - 1777206 Technical data General Range of articles MSTBV 2,5/..-GF Insulating material group IIIa Rated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/3) 250 V Rated voltage (III/2) 320 V Rated voltage (II/2) 400 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Maximum load current 12 A Insulating material PBT Flammability rating according to UL 94 V0 Color green Number of positions 15 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 eCl@ss 8.0 27440402 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002637 ETIM 5.0 EC002637 11/25/2015   Page 2 / 5 https://www.phoenixcontact.com/us/products/1777206 Base strip - MSTBV 2,5/15-GF-5,08 - 1777206 Classifications UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals CSA / VDE Gutachten mit Fertigungsüberwachung / GL / RS / IECEE CB Scheme / CCA / EAC / cULus Recognized Ex Approvals Approvals submitted Approval details CSA    B D Nominal current IN 12 A 10 A Nominal voltage UN 300 V 300 V VDE Gutachten mit Fertigungsüberwachung      Nominal current IN 12 A Nominal voltage UN 250 V 11/25/2015   Page 3 / 5 https://www.phoenixcontact.com/us/products/1777206 Base strip - MSTBV 2,5/15-GF-5,08 - 1777206 Approvals GL      Nominal current IN 8A Nominal voltage UN 250 V RS  IECEE CB Scheme      Nominal current IN 12 A Nominal voltage UN 250 V CCA      Nominal current IN 12 A Nominal voltage UN 250 V EAC  cULus Recognized    B D Nominal current IN 12 A 10 A Nominal voltage UN 300 V 300 V Drawings Drilling diagram a 5,08 Dimensional drawing 7,62 15 5,08 1,4 22 3,9 12 3,8 2,4 a+15,24 3,8 5,08 8,6 5,08 a 7,62 11/25/2015   Page 4 / 5 https://www.phoenixcontact.com/us/products/1777206 Phoenix Contact 2015 © - all rights reserved http://www.phoenixcontact.com 11/25/2015   Page 5 / 5
