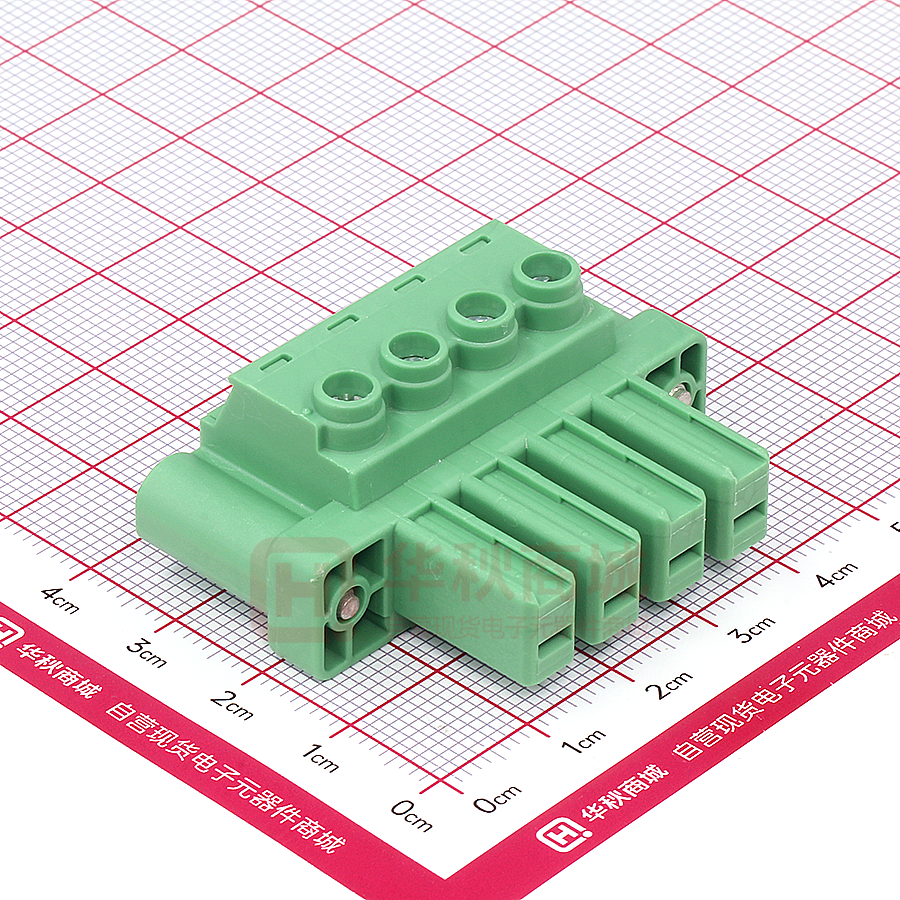

PCB connector - PC 5/ 4-STF1-7,62 1777859 https://www.phoenixcontact.com/us/products/1777859 Please be informed that the data shown in this PDF document is generated from our Online Catalog. Please find the complete data in the user documentation. Our General Terms of Use for Downloads are valid. PCB connector, nominal cross section: 6 mm2, color: green, nominal current: 41 A, rated voltage (III/2): 1000 V, contact surface: Tin, type of contact: Female connector, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: PC 5/..STF1, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, screw head form: Z1L Slotted Pozidriv, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON PC 5, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard Your advantages • Well-known connection principle allows worldwide use • Low temperature rise, thanks to maximum contact force • Allows connection of two conductors • Integrated double steel spring provides additional safety in the event of temperature and power fluctuations • 600 V UL approval in the smallest of dimensions • Screwable flange for superior mechanical stability Commercial Data Item number 1777859 Packing unit 1 pc Minimum order quantity 50 pc Sales Key A02 Product Key AADABB Catalog Page Page 525 (C-1-2013) GTIN 4046356522991 Weight per Piece (including packing) 21.393 g Weight per Piece (excluding packing) 21.393 g Customs tariff number 85366990 Country of origin DE Aug 30, 2022, 2:37 AM Page 1 (17) PCB connector - PC 5/ 4-STF1-7,62 1777859 https://www.phoenixcontact.com/us/products/1777859 Technical Data Product properties Type Standard Product line COMBICON Connectors L Product type PCB plug Number of positions 4 Pitch 7.62 mm Number of connections 4 Number of rows 1 Mounting flange Screw flange Number of potentials 4 Electrical properties Nominal current IN 41 A Nominal voltage UN 1000 V Pollution degree 3 Contact resistance 0.4 mΩ Rated voltage (III/3) 1000 V Rated surge voltage (III/3) 8 kV Rated voltage (III/2) 1000 V Rated surge voltage (III/2) 8 kV Connection data Connection technology Type Standard Connector system COMBICON PC 5 Nominal cross section 6 mm² Type of contact Female connector Interlock Locking type Screw locking Mounting flange Screw flange Tightening torque 0.3 Nm ... 0.7 Nm Conductor connection Connection method Screw connection with tension sleeve Conductor/PCB connection direction 0° Conductor cross section solid 0.2 mm² ... 10 mm² Conductor cross section flexible 0.2 mm² ... 6 mm² Conductor cross section AWG 24 ... 10 Conductor cross section flexible, with ferrule without plastic sleeve 0.25 mm² ... 6 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve 0.25 mm² ... 4 mm² Aug 30, 2022, 2:37 AM Page 2 (17) PCB connector - PC 5/ 4-STF1-7,62 1777859 https://www.phoenixcontact.com/us/products/1777859 2 conductors with same cross section, solid 0.2 mm² ... 2.5 mm² 2 conductors with same cross section, flexible 0.2 mm² ... 4 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve 0.25 mm² ... 1.5 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve 0.25 mm² ... 2.5 mm² Cylindrical gauge a x b / diameter 3.6 mm x 3.1 mm / 3.4 mm Stripping length 10 mm Tightening torque 0.5 Nm ... 0.8 Nm (≤ 4 mm² is 0.5 Nm to 0.6 Nm, > 4 mm² is 0.7 Nm to 0.8 Nm) Material specifications Material data - contact Note WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material Cu alloy Surface characteristics hot-dip tin-plated Metal surface terminal point (top layer) Tin (4 - 8 µm Sn) Metal surface contact area (top layer) Tin (4 - 8 µm Sn) Material data - housing Housing color green (6021) Insulating material PA Insulating material group I CTI according to IEC 60112 600 Flammability rating according to UL 94 V0 Glow wire flammability index GWFI according to EN 60695-2-12 850 Glow wire ignition temperature GWIT according to EN 60695-213 775 Temperature for the ball pressure test according to EN 6069510-2 125 °C Dimensions Dimensional drawing Pitch 7.62 mm Width [w] 45.71 mm Height [h] 19.7 mm Length [l] 35.5 mm Installed height 19.7 mm Mounting Aug 30, 2022, 2:37 AM Page 3 (17) PCB connector - PC 5/ 4-STF1-7,62 1777859 https://www.phoenixcontact.com/us/products/1777859 Drive form screw head Slotted Pozidriv (Z1L) Flange Tightening torque 0.3 Nm ... 0.7 Nm Notes Notes on operation In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. Mechanical tests Test for conductor damage and slackening Specification IEC 60999-1:1999-11 Result Test passed Pull-out test Specification IEC 60999-1:1999-11 Conductor cross section/conductor type/tractive force setpoint/actual value 0.2 mm² / solid / > 10 N 0.2 mm² / flexible / > 10 N 10 mm² / solid / > 90 N 6 mm² / flexible / > 80 N 6 mm² / solid / > 80 N 4 mm² / flexible / > 60 N Insertion and withdrawal forces Result Test passed No. of cycles 50 Insertion strength per pos. approx. 8N Withdraw strength per pos. approx. 6.5 N Torque test Specification IEC 60999-1:1999-11 Contact holder in insert Specification IEC 60512-15-1:2008-05 Contact holder in insert Requirements >20 N Test passed Resistance of inscriptions Specification IEC 60068-2-70:1995-12 Result Test passed Polarization and coding Specification IEC 60512-13-5:2006-02 Result Test passed Visual inspection Specification IEC 60512-1-1:2002-02 Aug 30, 2022, 2:37 AM Page 4 (17) PCB connector - PC 5/ 4-STF1-7,62 1777859 https://www.phoenixcontact.com/us/products/1777859 Result Test passed Dimension check Specification IEC 60512-1-2:2002-02 Result Test passed Environmental and real-life conditions Vibration test Specification IEC 60068-2-6:2007-12 Frequency 10 - 150 - 10 Hz Sweep speed 1 octave/min Amplitude 0.35 mm (10 - 60.1 Hz) Sweep speed 5g (60.1 - 150 Hz) Test duration per axis 2.5 h Durability test Specification IEC 60512-5:1992-08 Impulse withstand voltage at sea level 7.3 kV Contact resistance R1 0.4 mΩ Contact resistance R2 0.5 mΩ Insertion/withdrawal cycles 50 Climatic test Specification ISO 6988:1985-02 Corrosive stress 0.2 dm3 SO2 on 300 dm3/40 °C/1 cycle Thermal stress 100 °C/168 h Power-frequency withstand voltage 3.31 kV Shocks Specification IEC 60068-2-27:2008-02 Pulse shape Semi-sinusoidal Acceleration 30g Shock duration 18 ms Test directions X-, Y- and Z-axis (pos. and neg.) Ambient conditions Ambient temperature (operation) -40 °C ... 100 °C (dependent on the derating curve) Ambient temperature (storage/transport) -40 °C ... 70 °C Relative humidity (storage/transport) 30 % ... 70 % Ambient temperature (assembly) -5 °C ... 100 °C Electrical tests Thermal test | Test group C Specification IEC 60512-5-1:2002-02 Tested number of positions 12 Aug 30, 2022, 2:37 AM Page 5 (17) PCB connector - PC 5/ 4-STF1-7,62 1777859 https://www.phoenixcontact.com/us/products/1777859 Insulation resistance Specification IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions >1012 Ω Air clearances and creepage distances | Specification IEC 60664-1:2007-04 Insulating material group I Comparative tracking index (IEC 60112) CTI 600 Rated insulation voltage (III/3) 1000 V Rated surge voltage (III/3) 8 kV minimum clearance value - non-homogenous field (III/3) 8 mm minimum creepage distance (III/3) 12.5 mm Rated insulation voltage (III/2) 1000 V Rated surge voltage (III/2) 8 kV minimum clearance value - non-homogenous field (III/2) 8 mm minimum creepage distance (III/2) 8 mm Rated insulation voltage (II/2) 1000 V Rated surge voltage (II/2) 6 kV minimum clearance value - non-homogenous field (II/2) 5.5 mm minimum creepage distance (II/2) 5.5 mm Packaging specifications Type of packaging packed in cardboard Aug 30, 2022, 2:37 AM Page 6 (17) PCB connector - PC 5/ 4-STF1-7,62 1777859 https://www.phoenixcontact.com/us/products/1777859 Drawings Current strength [A] Diagram 80 72 64 56 48 40 32 24 16 8 0 1 2 1 = 2-pos. 2 = 5-pos. 3 = 12-pos. 0 20 3 40 60 80 100 Ambient temperature [°C] Type: PC 5/...-STF1-7,62 with PC 5/...-GF-7,62 Conductor cross section: 10 mm2 Current strength [A] Diagram 64 56 48 40 32 24 16 8 0 0 = 2-pos. = 5-pos. = 12-pos. 10 20 30 40 50 60 70 80 90 100 110 Ambient temperature [°C] Type: PC 5/...-ST(F)1-7,62 with PC 5/...-GU(F)-7,62 Conductor cross section: 6 mm2 Aug 30, 2022, 2:37 AM Page 7 (17) PCB connector - PC 5/ 4-STF1-7,62 1777859 Current strength [A] https://www.phoenixcontact.com/us/products/1777859 40 36 32 28 24 20 16 12 8 4 0 Diagram = 2-pos. = 5-pos. = 12-pos. 0 10 20 30 40 50 60 70 80 90 100 110 Ambient temperature [°C] Type: PC 5/...-STF1-7,62 with PCVK 4-7,62 and PCVK 4-7,62-F Current strength [A] Diagram 56 48 40 32 24 = 2-pos. = 5-pos. = 12-pos. 16 8 0 0 20 40 60 80 100 Ambient temperature [°C] Type: PC 5/...-STF1-7,62 with PC 4/...-G-7,62 and BF-PC 4 Conductor cross section: 4 mm2 Aug 30, 2022, 2:37 AM Page 8 (17) PCB connector - PC 5/ 4-STF1-7,62 1777859 https://www.phoenixcontact.com/us/products/1777859 I [A] Diagram 80 70 60 50 40 30 20 10 0 1 1 2 3 0 = 2-pos. = 5-pos. = 12-pos. 10 20 2 3 30 40 50 60 70 80 90 100 110  [°C] Type: PC 5/...-STF1-7,62 with PCV 5/...-GF-7,62 Current strength [A] Diagram 56 48 40 32 24 = 2-pos. = 5-pos. = 12-pos. 16 8 0 0 20 40 60 80 100 Ambient temperature [°C] Type: PC 5/...-STF1-7,62 with PCV 4/...-G-7,62 and BF-PC 4 Conductor cross section: 4 mm2 Aug 30, 2022, 2:37 AM Page 9 (17) PCB connector - PC 5/ 4-STF1-7,62 1777859 https://www.phoenixcontact.com/us/products/1777859 Current strength [A] Diagram 64 56 48 40 32 24 16 8 0 1 1 = 2-pos. 2 = 5-pos. 3 = 12-pos. 0 20 2 3 40 60 80 100 Ambient temperature [°C] Type: PC 5/...-STF1-7,62 with PC 5/...-GF-7,62 Conductor cross section: 6 mm2 Aug 30, 2022, 2:37 AM Page 10 (17) PCB connector - PC 5/ 4-STF1-7,62 1777859 https://www.phoenixcontact.com/us/products/1777859 Approvals  EAC Approval ID: B.01687  cULus Recognized Approval ID: E60425-19920722 Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2 600 V 41 A 24 - 12 - 41 A 24 - 8 - 41 A 24 - 12 - 41 A 24 - 8 - Use group B Multi-conductor connection Screw connection Use group C Multi-conductor connection Screw connection 600 V Aug 30, 2022, 2:37 AM Page 11 (17) PCB connector - PC 5/ 4-STF1-7,62 1777859 https://www.phoenixcontact.com/us/products/1777859 Classifications ECLASS ECLASS-9.0 27440309 ECLASS-10.0.1 27440309 ECLASS-11.0 27460202 ETIM ETIM 8.0 EC002638 UNSPSC UNSPSC 21.0 39121400 Aug 30, 2022, 2:37 AM Page 12 (17) PCB connector - PC 5/ 4-STF1-7,62 1777859 https://www.phoenixcontact.com/us/products/1777859 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Aug 30, 2022, 2:37 AM Page 13 (17) PCB connector - PC 5/ 4-STF1-7,62 1777859 https://www.phoenixcontact.com/us/products/1777859 Accessories Screwdriver Screwdriver - SZS 0,6X3,5 - 1205053 https://www.phoenixcontact.com/us/products/1205053 Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip Coding profile Coding profile - CP-PC RD - 1701967 https://www.phoenixcontact.com/us/products/1701967 Coding profile, for plugging into the coding ribs of the plug at a later date, insulating material, color: Red Aug 30, 2022, 2:37 AM Page 14 (17) PCB connector - PC 5/ 4-STF1-7,62 1777859 https://www.phoenixcontact.com/us/products/1777859 Marker card Marker card - SK 7,62/3,8:FORTL.ZAHLEN - 0804549 https://www.phoenixcontact.com/us/products/0804549 Marker card, white, labeled, horizontal: consecutive numbers 1 ... 10, 11 ... 20, etc. up to 91 ... 100, mounting type: adhesive, for terminal block width: 7.62 mm, lettering field size: 7.62 x 3.8 mm Marker card Marker card - SK 3,8 REEL P7,62 WH CUS - 0825128 https://www.phoenixcontact.com/us/products/0825128 Marker card, can be ordered: by card, white, labeled according to customer specifications, mounting type: adhesive, for terminal block width: 7.62 mm, lettering field size: continuous x 3.8 mm Aug 30, 2022, 2:37 AM Page 15 (17) PCB connector - PC 5/ 4-STF1-7,62 1777859 https://www.phoenixcontact.com/us/products/1777859 Marker card Marker card - SK U/3,8 WH:UNBEDRUCKT - 0803906 https://www.phoenixcontact.com/us/products/0803906 Marker card, Sheet, white, unlabeled, can be labeled with: PLOTMARK, CMSP1-PLOTTER, Office printing systems, mounting type: adhesive, for terminal block width: 210 mm, lettering field size: 186 x 3.8 mm, Number of individual labels: 1440 Marker strip Marker strip - SK 3,8 WH:REEL - 0805218 https://www.phoenixcontact.com/us/products/0805218 Marker strip, Roll, white, unlabeled, can be labeled with: THERMOMARK ROLL 2.0, THERMOMARK ROLL, THERMOMARK ROLL X1, THERMOMARK ROLLMASTER 300/600, THERMOMARK X1.2, mounting type: adhesive, for terminal block width: 90000 mm, lettering field size: continuous x 3.8 mm, Number of individual labels: 210000 Aug 30, 2022, 2:37 AM Page 16 (17) PCB connector - PC 5/ 4-STF1-7,62 1777859 https://www.phoenixcontact.com/us/products/1777859 Feed-through plug Feed-through plug - DFK-PC 5/ 4-STF-7,62 - 1716632 https://www.phoenixcontact.com/us/products/1716632 Feed-through connector, nominal cross section: 6 mm2, color: green, nominal current: 41 A, rated voltage (III/2): 1000 V, contact surface: Tin, type of contact: Male connector, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: DFK-PC 5/..-STF, pitch: 7.62 mm, connection method: Screw connection with tension sleeve, conductor/PCB connection direction: 0 °, plug-in system: COMBICON PC 5, Pin connector pattern alignment: Standard, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard Phoenix Contact 2022 © - all rights reserved https://www.phoenixcontact.com Phoenix Contact USA 586 Fulling Mill Road Middletown, PA 17057, United States (+717) 944-1300 info@phoenixcon.com Aug 30, 2022, 2:37 AM Page 17 (17)
