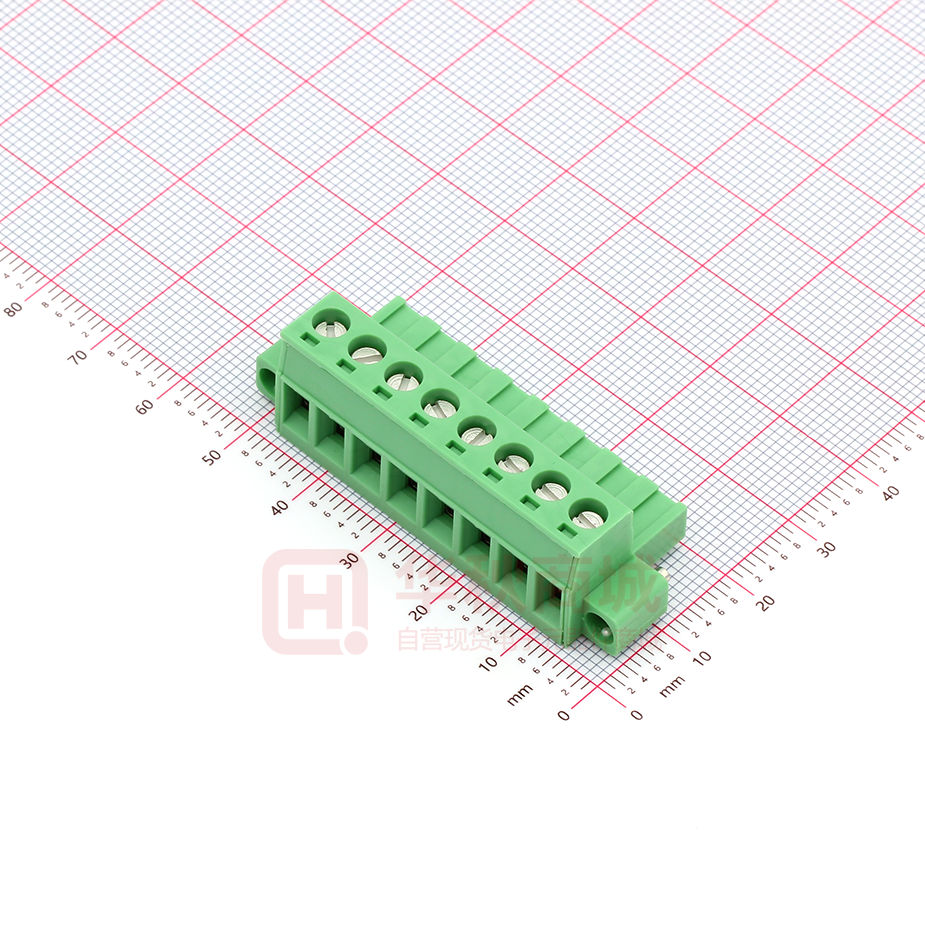

https://www.phoenixcontact.com/us/products/1778043 Printed-circuit board connector - MSTB 2,5/ 8-STF-5,08 - 1778043 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB connector, nominal current: 12 A, number of positions: 8, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, color: green, contact surface: Tin The figure shows a 10-position version of the product Your advantages  Well-known connection principle allows worldwide use  Low temperature rise, thanks to maximum contact force  Screwable flange for superior mechanical stability  Allows connection of two conductors Key Commercial Data Packing unit 1 pc GTIN GTIN 4017918039912 Weight per Piece (excluding packing) 14.830 g Custom tariff number 85366990 Country of origin United States Technical data Dimensions Length [ l ] 18.3 mm Width [ w ] 50.65 mm Height [ h ] 15 mm Pitch 5.08 mm Dimension a 35.56 mm 08/28/2019   Page 1 / 10 https://www.phoenixcontact.com/us/products/1778043 Printed-circuit board connector - MSTB 2,5/ 8-STF-5,08 - 1778043 Technical data General Range of articles MSTB 2,5/..-STF Number of positions 8 Connection method Screw connection with tension sleeve Insulating material group I Rated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/3) 250 V Rated voltage (III/2) 320 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Nominal cross section 2.5 mm² Maximum load current 12 A (with a 2.5 mm² conductor cross section) Insulating material PA Flammability rating according to UL 94 V0 Internal cylindrical gage A3 Stripping length 7 mm Screw thread M3 Tightening torque, min 0.5 Nm Tightening torque max 0.6 Nm Connection data Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm² Conductor cross section flexible, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule with plastic sleeve max. 2.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 12 2 conductors with same cross section, solid min. 0.2 mm² 2 conductors with same cross section, solid max. 1 mm² 2 conductors with same cross section, stranded min. 0.2 mm² 2 conductors with same cross section, stranded max. 1.5 mm² 08/28/2019   Page 2 / 10 https://www.phoenixcontact.com/us/products/1778043 Printed-circuit board connector - MSTB 2,5/ 8-STF-5,08 - 1778043 Technical data Connection data 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. 0.25 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. 1 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic 0.5 mm² sleeve, min. 2 conductors with same cross section, stranded, TWIN ferrules with plastic 1.5 mm² sleeve, max. Minimum AWG according to UL/CUL 30 Maximum AWG according to UL/CUL 12 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Environmental Product Compliance Lead 7439-92-1 China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Classifications eCl@ss eCl@ss 4.0 27260700 eCl@ss 4.1 27260700 eCl@ss 5.0 27260700 eCl@ss 5.1 27260700 eCl@ss 6.0 27260700 eCl@ss 7.0 27440309 eCl@ss 8.0 27440309 eCl@ss 9.0 27440309 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002638 ETIM 5.0 EC002638 ETIM 6.0 EC002638 ETIM 7.0 EC002638 08/28/2019   Page 3 / 10 https://www.phoenixcontact.com/us/products/1778043 Printed-circuit board connector - MSTB 2,5/ 8-STF-5,08 - 1778043 Classifications UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals DNV GL / CSA / RS / IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized Ex Approvals Approval details DNV GL    https://approvalfinder.dnvgl.com/  TAE00001EY CSA    http://www.csagroup.org/services-industries/product-listing/  LR13631-2585950   B D Nominal voltage UN 300 V 300 V Nominal current IN 15 A 10 A mm²/AWG/kcmil 28-12 28-12 RS    http://www.rs-head.spb.ru/en/index.php  17.00014.272 08/28/2019   Page 4 / 10 https://www.phoenixcontact.com/us/products/1778043 Printed-circuit board connector - MSTB 2,5/ 8-STF-5,08 - 1778043 Approvals IECEE CB Scheme    http://www.iecee.org/     Nominal voltage UN 250 V Nominal current IN 12 A mm²/AWG/kcmil 0.2-2.5 VDE Gutachten mit Fertigungsüberwachung    DE1-60988-B1B2  http://www2.vde.com/de/Institut/Online-Service/ VDE-gepruefteProdukte/Seiten/Online-Suche.aspx     Nominal voltage UN 250 V Nominal current IN 12 A mm²/AWG/kcmil 0.2-2.5  40004701 EAC      B.01742 cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E60425-19931011   B D Nominal voltage UN 300 V 150 V Nominal current IN 15 A 15 A mm²/AWG/kcmil 30-12 30-12 Accessories Accessories Bridge Insertion bridge - EBP 2- 5 - 1733169 Insertion bridge, fully insulated, for connectors with 5.0 or 5.08 mm pitch, no. of positions: 2     08/28/2019   Page 5 / 10 https://www.phoenixcontact.com/us/products/1778043 Printed-circuit board connector - MSTB 2,5/ 8-STF-5,08 - 1778043 Accessories Insertion bridge - EBP 4- 5 - 1733185 Insertion bridge, fully insulated, for connectors with 5.0 or 5.08 mm pitch, no. of positions: 4     Insertion bridge - EBP 5- 5 - 1733198 Insertion bridge, fully insulated, for connectors with 5.0 or 5.08 mm pitch, no. of positions: 5     Insertion bridge - EBP 3- 5 - 1733172 Insertion bridge, fully insulated, for connectors with 5.0 or 5.08 mm pitch, no. of positions: 3     Insertion bridge - EBP 6- 5 - 1733208 Insertion bridge, fully insulated, for connectors with 5.0 or 5.08 mm pitch, no. of positions: 6     Cable housing Cable housing - KGG-MSTB 2,5/ 8 - 1803921 Cable housing, pitch: 0 mm, number of positions: 8, dimension a: 40 mm, color: green     08/28/2019   Page 6 / 10 https://www.phoenixcontact.com/us/products/1778043 Printed-circuit board connector - MSTB 2,5/ 8-STF-5,08 - 1778043 Accessories Cable housing - KGS-MSTB 2,5/ 8 - 1783779 Cable housing, pitch: 0 mm, number of positions: 8, dimension a: 40 mm, color: green     Coding element Coding profile - CP-MSTB - 1734634 Coding profile, is inserted into the slot on the plug or inverted header, red insulating material     Labeled terminal marker Marker card - SK 5,08/3,8:FORTL.ZAHLEN - 0804293 Marker card, Card, white, labeled, Horizontal: consecutive numbers 1 ... 10, 11 ... 20, etc. up to 91 ... (99)100, mounting type: adhesive, for terminal block width: 5.08 mm, lettering field size: 5.08 x 3.8 mm     Marker pen Marker pen - B-STIFT - 1051993 Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm     08/28/2019   Page 7 / 10 https://www.phoenixcontact.com/us/products/1778043 Printed-circuit board connector - MSTB 2,5/ 8-STF-5,08 - 1778043 Accessories Marker pen - X-PEN 0,35 - 0811228 Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm     Screwdriver tools Screwdriver - SZS 0,6X3,5 - 1205053 Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip     Terminal marking Marker card - SK U/3,8 WH:UNBEDRUCKT - 0803906 Marker card, Sheet, white, unlabeled, can be labeled with: PLOTMARK, CMS-P1-PLOTTER, Office printing systems, mounting type: adhesive, for terminal block width: 210 mm, lettering field size: 186 x 3.8 mm     Additional products Feed-through header - MSTB 2,5/ 8-GF-5,08 - 1776566 PCB headers, nominal current: 12 A, number of positions: 8, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering     08/28/2019   Page 8 / 10 https://www.phoenixcontact.com/us/products/1778043 Printed-circuit board connector - MSTB 2,5/ 8-STF-5,08 - 1778043 Accessories Printed-circuit board connector - MSTBV 2,5/ 8-GF-5,08 - 1777138 PCB headers, nominal current: 12 A, number of positions: 8, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering     Feed-through header - MDSTB 2,5/ 8-GF-5,08 - 1842429 PCB headers, nominal current: 10 A, number of positions: 8, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering, The article can be aligned to create different nos. of positions! In combination with MVSTB or FKCV plug components, both an MVSTBW (or FKCVW) and an MVSTBR plug (or FKCVR) must be used. Combination with TMSTBP plug components is not possible!     Feed-through header - MDSTBV 2,5/ 8-GF-5,08 - 1845691 PCB headers, nominal current: 10 A, number of positions: 8, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering, The article can be aligned to create different nos. of positions! In combination with MVSTB or FKCV plug components, both an MVSTBW (or FKCVW) and an MVSTBR plug (or FKCVR) must be used. Combination with TMSTBP plug components is not possible!     Printed-circuit board connector - DFK-MSTBA 2,5/ 8-GF-5,08 - 1899045 Feed-through header, nominal current: 12 A, number of positions: 8, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering     Printed-circuit board connector - DFK-MSTBVA 2,5/ 8-GF-5,08 - 1899346 Feed-through header, nominal current: 12 A, number of positions: 8, pitch: 5.08 mm, color: green, contact surface: Tin, mounting: Wave soldering     08/28/2019   Page 9 / 10 https://www.phoenixcontact.com/us/products/1778043 Printed-circuit board connector - MSTB 2,5/ 8-STF-5,08 - 1778043 Accessories Printed-circuit board connector - CC 2,5/ 8-GF-5,08 P26THR - 1954757 PCB headers, nominal current: 12 A, number of positions: 8, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads”     Printed-circuit board connector - CC 2,5/ 8-GF-5,08 P26THRR88 - 1954867 PCB headers, nominal current: 12 A, number of positions: 8, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads”     Printed-circuit board connector - CCV 2,5/ 8-GF-5,08 P26THR - 1955691 PCB headers, nominal current: 12 A, number of positions: 8, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads”     Printed-circuit board connector - CCV 2,5/ 8-GF-5,08 P26THRR88 - 1955808 PCB headers, nominal current: 12 A, number of positions: 8, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads”     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 08/28/2019   Page 10 / 10
