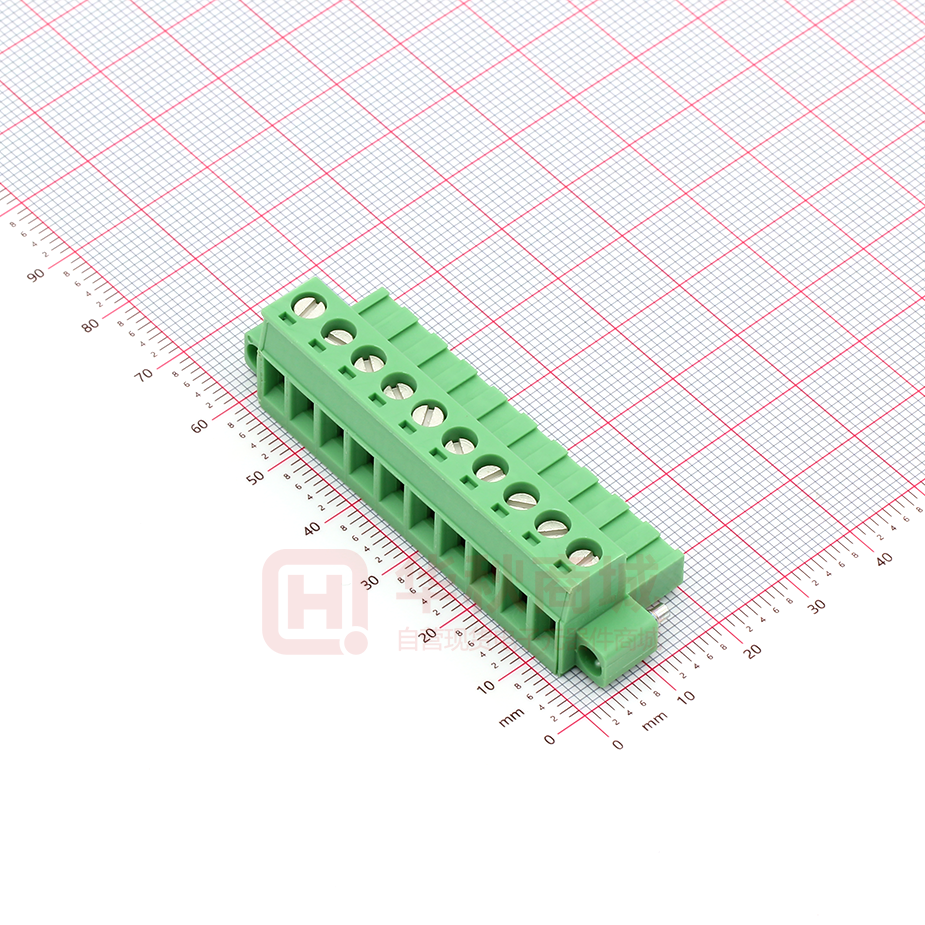

https://www.phoenixcontact.com/us/products/1778069 Printed-circuit board connector - MSTB 2,5/10-STF-5,08 - 1778069 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 10, Pitch: 5.08 mm, Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin The figure shows a 10-position version of the product Product Features ■ ■ ■ Plug-in direction parallel to the conductor axis Standard plug-in system for 320 V (III/2) Individual position coding by inserting coding profiles Key Commercial Data Packing unit 1 pc GTIN Weight per Piece (excluding packing) 18.11 g Custom tariff number 85366990 Country of origin United States Technical data Dimensions Width 60.81 mm Pitch 5.08 mm Dimension a 45.72 mm General Range of articles MSTB 2,5/..-STF Insulating material group I 03/28/2016   Page 1 / 5 https://www.phoenixcontact.com/us/products/1778069 Printed-circuit board connector - MSTB 2,5/10-STF-5,08 - 1778069 Technical data General Rated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/3) 250 V Rated voltage (III/2) 320 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Nominal cross section 2.5 mm² Maximum load current 12 A (with a 2.5 mm² conductor cross section) Insulating material PA Flammability rating according to UL 94 V0 Internal cylindrical gage A3 Stripping length 7 mm Number of positions 10 Screw thread M3 Tightening torque, min 0.5 Nm Tightening torque max 0.6 Nm Connection data Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm² Conductor cross section flexible, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule with plastic sleeve max. 2.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 12 2 conductors with same cross section, solid min. 0.2 mm² 2 conductors with same cross section, solid max. 1 mm² 2 conductors with same cross section, stranded min. 0.2 mm² 2 conductors with same cross section, stranded max. 1.5 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. 0.25 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. 1 mm² 03/28/2016   Page 2 / 5 https://www.phoenixcontact.com/us/products/1778069 Printed-circuit board connector - MSTB 2,5/10-STF-5,08 - 1778069 Technical data Connection data 2 conductors with same cross section, stranded, TWIN ferrules with plastic 0.5 mm² sleeve, min. 2 conductors with same cross section, stranded, TWIN ferrules with plastic 1.5 mm² sleeve, max. Minimum AWG according to UL/CUL 30 Maximum AWG according to UL/CUL 12 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 eCl@ss 8.0 27440309 eCl@ss 9.0 27440309 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002638 ETIM 5.0 EC002638 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals 03/28/2016   Page 3 / 5 https://www.phoenixcontact.com/us/products/1778069 Printed-circuit board connector - MSTB 2,5/10-STF-5,08 - 1778069 Approvals Approvals CSA / VDE Gutachten mit Fertigungsüberwachung / GL / RS / IECEE CB Scheme / EAC / cULus Recognized / EAC Ex Approvals Approvals submitted Approval details CSA    B D mm²/AWG/kcmil 28-12 28-12 Nominal current IN 15 A 10 A Nominal voltage UN 300 V 300 V VDE Gutachten mit Fertigungsüberwachung      mm²/AWG/kcmil 0.2-2.5 Nominal current IN 12 A Nominal voltage UN 250 V GL  RS  IECEE CB Scheme      mm²/AWG/kcmil 0.2-2.5 Nominal current IN 12 A Nominal voltage UN 250 V 03/28/2016   Page 4 / 5 https://www.phoenixcontact.com/us/products/1778069 Printed-circuit board connector - MSTB 2,5/10-STF-5,08 - 1778069 Approvals EAC  cULus Recognized    B D mm²/AWG/kcmil 30-12 30-12 Nominal current IN 15 A 15 A Nominal voltage UN 300 V 150 V EAC  Drawings Diagram 12 Current strength [A] Current strength [A] Diagram 10 8 6 = 2-pos. = 5-pos. ! = 12-pos. " = 20-pos. 4 2 0 0 20 ! " 24 20 16 ! " # 12 8 != 2-pos. " = 5-pos. # = 12-pos. 4 0 40 60 80 100 0 Ambient temperature [°C] 10 20 30 40 50 60 70 80 90 100 110 Ambient temperature [°C] Type: MSTB 2,5/...-STF-5,08 with MSTBV 2,5/...-GF-5,08 Type: MSTB 2,5/...-STF-5,08 with CC 2,5/...-GF-5,08 P26THR Dimensional drawing 4,7 a+5,69 15 18,2 8,3 5,08 5,08 a Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 03/28/2016   Page 5 / 5
