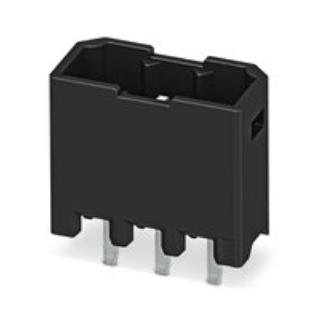

1778573

Extract from the online catalog     PTSM 0,5/ 4-HV-2,5-THR R32 Order No.: 1778573 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1778573   Header, Nominal current: 6 A, Rated voltage (III/2): 160 V, Number of positions: 4, Pitch: 2.5 mm, Color: black, Metal surface: Sn, Assembly: SMD/THT/THR   Product notes WEEE/RoHS-compliant since: 09/17/2009 Commercial data GTIN (EAN) 4 046356 529747 sales group E430 Pack 330 pcs. Customs tariff 85369010 Catalog page information Page 185 (NTK-2010) http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. Technical data Dimensions / positions Length 5 mm Pitch 2.5 mm Dimension a 7.5 mm Number of positions 4 PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 1 / 4 Apr 6, 2011 PTSM 0,5/ 4-HV-2,5-THR R32 Order No.: 1778573 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1778573 Pin dimensions 0,6 x 0,6 mm Pin spacing 2.50 mm Hole diameter 1.1 mm Technical data Range of articles PTSM 0,5/..-HV-THR Insulating material group IIIa Rated surge voltage (III/3) 2.5 kV Rated surge voltage (III/2) 2.5 kV Rated surge voltage (II/2) 2.5 kV Rated voltage (III/2) 160 V Rated voltage (II/2) 160 V Connection in acc. with standard EN-VDE Nominal current IN 6A Nominal voltage UN 50 V Maximum load current 6A Insulating material LCP Inflammability class acc. to UL 94 V0 Nominal voltage, UL/CUL Use Group B 150 V Nominal current, UL/CUL Use Group B 6A Certificates / Approvals Certification PHOENIX CONTACT Inc., USA http://www.phoenixcon.com CUL, UL Page 2 / 4 Apr 6, 2011 PTSM 0,5/ 4-HV-2,5-THR R32 Order No.: 1778573 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1778573 Diagrams/Drawings Drilling plan/solder pad geometry Dimensioned drawing PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 3 / 4 Apr 6, 2011 PTSM 0,5/ 4-HV-2,5-THR R32 Order No.: 1778573 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1778573 Address PHOENIX CONTACT Inc., USA 586 Fulling Mill Road Middletown, PA 17057,USA Phone (800) 888-7388 Fax (717) 944-1625 http://www.phoenixcon.com © 2011 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 4 / 4 Apr 6, 2011
