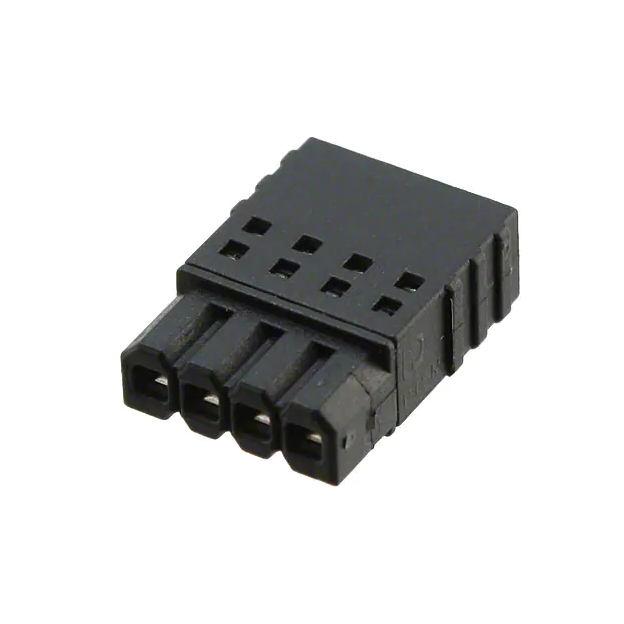

  Extract from the online catalog   PTSM 0,5/ 4-P-2,5 Order No.: 1778858 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1778858   Plug component, Nominal current: 6 A, Rated voltage (III/2): 160 V, Number of positions: 4, Pitch: 2.5 mm, Connection method: Springcage conn., Color: black, Metal surface: Sn   Product notes Commercial data GTIN (EAN) 4 046356 530064 WEEE/RoHS-compliant since: 09/17/2009 sales group Pack Customs tariff Catalog page information E410 250 pcs. 85369010 Page 183 (NTK-2010) http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. Technical data Dimensions / positions Pitch Dimension a Number of positions 2.5 mm 7.5 mm 4 PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 1 / 4 Apr 6, 2011 PTSM 0,5/ 4-P-2,5 Order No.: 1778858 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1778858 Technical data Range of articles Insulating material group Rated surge voltage (III/3) Rated surge voltage (III/2) Rated surge voltage (II/2) Rated voltage (III/2) Rated voltage (II/2) Connection in acc. with standard Nominal current IN Nominal voltage UN Nominal cross section Maximum load current Insulating material Inflammability class acc. to UL 94 Stripping length Nominal voltage, UL/CUL Use Group B Nominal current, UL/CUL Use Group B Connection data Conductor cross section solid min. Conductor cross section solid max. Conductor cross section stranded min. Conductor cross section stranded max. Conductor cross section stranded, with ferrule without plastic sleeve min. Conductor cross section stranded, with ferrule without plastic sleeve max. Conductor cross section AWG/kcmil min. Conductor cross section AWG/kcmil max Minimum AWG according to UL/CUL Maximum AWG according to UL/CUL Certificates / Approvals 0.14 mm² 0.5 mm² 0.2 mm² 0.5 mm² 0.25 mm² 0.5 mm² 24 20 26 20 PTSM 0,5/..-P I 2.5 kV 2.5 kV 2.5 kV 160 V 320 V EN-VDE 6A 100 V 0.5 mm² 6A PA V0 6 mm 150 V 5A PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 2 / 4 Apr 6, 2011 PTSM 0,5/ 4-P-2,5 Order No.: 1778858 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1778858 Certification CUL, UL Accessories Item Tools 1205202 SZS 0,4X2,0 Micro screwdriver, bladed, size: 0.4 x 2.0 x 60 mm, 2-component grip, with non-slip grip and twist cap Designation Description Diagrams/Drawings Dimensioned drawing PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 3 / 4 Apr 6, 2011 PTSM 0,5/ 4-P-2,5 Order No.: 1778858 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1778858 Address PHOENIX CONTACT Inc., USA 586 Fulling Mill Road Middletown, PA 17057,USA Phone (800) 888-7388 Fax (717) 944-1625 http://www.phoenixcon.com © 2011 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT Inc., USA http://www.phoenixcon.com Page 4 / 4 Apr 6, 2011
