Printed-circuit board connector - MC 1,5/ 3-G-3,5 P26 THR - 1788521
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

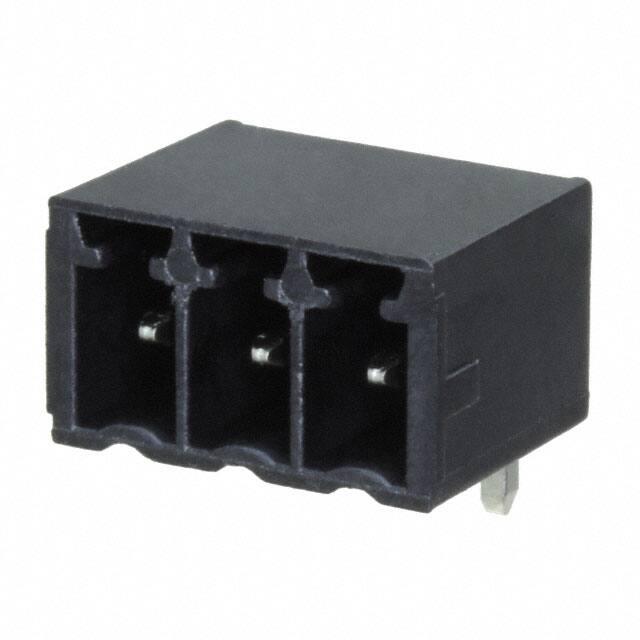

PCB headers, nominal current: 8 A, number of positions: 3, pitch: 3.5 mm, color: black, contact surface: Tin,
mounting: THR soldering
The figure shows a 10-position
version of the product
Your advantages
Designed for integration into the SMT soldering process
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Key Commercial Data
Packing unit
1 pc
Minimum order quantity
50 pc
GTIN
GTIN
4046356611657
Weight per Piece (excluding packing)
0.800 g
Custom tariff number
85366930
Country of origin
Germany
Technical data
Dimensions
Length [ l ]
9.2 mm
Width
11.89 mm
Pitch
3.5 mm
Dimension a
7 mm
Width [ w ]
11.89 mm
11/14/2019 Page 1 / 8
https://www.phoenixcontact.com/us/products/1788521
Printed-circuit board connector - MC 1,5/ 3-G-3,5 P26 THR - 1788521
Technical data
Dimensions
Height [ h ]
9.5 mm
Height
6.9 mm
Length of the solder pin
2.6 mm
Pin dimensions
0.8 x 0.8 mm
Length
9.2 mm
General
Range of articles
MC 1,5/..-G-THR
Insulating material group
IIIa
Rated surge voltage (III/3)
2.5 kV
Rated surge voltage (III/2)
2.5 kV
Rated surge voltage (II/2)
2.5 kV
Rated voltage (III/3)
160 V
Rated voltage (III/2)
160 V
Rated voltage (II/2)
250 V
Connection in acc. with standard
EN-VDE
Nominal current IN
8A
Maximum load current
8A
Insulating material
LCP
Flammability rating according to UL 94
V0
Color
black
Number of positions
3
Standards and Regulations
Connection in acc. with standard
EN-VDE
CUL
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
11/14/2019 Page 2 / 8
https://www.phoenixcontact.com/us/products/1788521
Printed-circuit board connector - MC 1,5/ 3-G-3,5 P26 THR - 1788521
Drilling diagram
Diagram
Type: MC 1,5/...-ST(F)-3,5 with MC 1,5/...-G(F)-3,5 P... THR
11/14/2019 Page 3 / 8
https://www.phoenixcontact.com/us/products/1788521
Printed-circuit board connector - MC 1,5/ 3-G-3,5 P26 THR - 1788521
Diagram
Type: FMC 1,5/...-ST-3,5 with MC 1,5/...-G-3,5 P26 THR
Dimensional drawing
Classifications
eCl@ss
eCl@ss 4.0
27260700
eCl@ss 4.1
27260700
11/14/2019 Page 4 / 8
https://www.phoenixcontact.com/us/products/1788521
Printed-circuit board connector - MC 1,5/ 3-G-3,5 P26 THR - 1788521
Classifications
eCl@ss
eCl@ss 5.0
27260700
eCl@ss 5.1
27260700
eCl@ss 6.0
27260700
eCl@ss 7.0
27440402
eCl@ss 8.0
27440402
eCl@ss 9.0
27440402
ETIM
ETIM 4.0
EC002637
ETIM 5.0
EC002637
ETIM 6.0
EC002637
ETIM 7.0
EC002637
UNSPSC
UNSPSC 6.01
30211810
UNSPSC 7.0901
39121409
UNSPSC 11
39121409
UNSPSC 12.01
39121409
UNSPSC 13.2
39121409
Approvals
Approvals
Approvals
IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized
Ex Approvals
Approval details
IECEE CB Scheme
http://www.iecee.org/
Nominal voltage UN
160 V
Nominal current IN
8A
DE1-60987-B1B2
11/14/2019 Page 5 / 8
https://www.phoenixcontact.com/us/products/1788521
Printed-circuit board connector - MC 1,5/ 3-G-3,5 P26 THR - 1788521
Approvals
VDE Gutachten mit
Fertigungsüberwachung
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
Nominal voltage UN
160 V
Nominal current IN
8A
40011723
EAC
B.01742
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
E60425-20110128
B
D
Nominal voltage UN
300 V
300 V
Nominal current IN
8A
8A
Accessories
Accessories
Fiber optic
Fiber optic - MC 1,5/10-LWL 1,5-3,5 - 1841161
MINI COMBICON fiber optics, 3.5 mm pitch, 10-pos., separable for other numbers of positions (minimum: 2-pos.), inserts
into the back of the MC header, color: transparent, dimension a: 1.5 mm
Fiber optic - MC 1,5/10-LWL 2,3-3,5 - 1841187
MINI COMBICON fiber optics, 3.5 mm pitch, 10-pos., separable for other numbers of positions (minimum: 2-pos.), inserts
into the back of the MC header, color: transparent, dimension a: 2.3 mm
11/14/2019 Page 6 / 8
https://www.phoenixcontact.com/us/products/1788521
Printed-circuit board connector - MC 1,5/ 3-G-3,5 P26 THR - 1788521
Accessories
Fiber optic - MC 1,5/10-LWL 4-3,5 - 1841200
MINI COMBICON fiber optics, 3.5 mm pitch, 10-pos., separable for other numbers of positions (minimum: 2-pos.), inserts
into the back of the MC header, color: transparent, dimension a: 4 mm
Additional products
Printed-circuit board connector - MC 1,5/ 3-ST-3,5 GY7035 - 1769061
PCB connector, nominal current: 8 A, number of positions: 3, pitch: 3.5 mm, connection method: Screw connection with
tension sleeve, color: light gray, contact surface: Tin
Printed-circuit board connector - TFMC 1,5/ 3-ST-3,5 - 1772621
PCB connector, nominal current: 8 A, number of positions: 3, pitch: 3.5 mm, connection method: Push-in spring
connection, color: green, contact surface: Tin
Printed-circuit board connector - MC 1,5/ 3-ST-3,5 - 1840379
PCB connector, nominal current: 8 A, number of positions: 3, pitch: 3.5 mm, connection method: Screw connection with
tension sleeve, color: green, contact surface: Tin
Printed-circuit board connector - MCVW 1,5/ 3-ST-3,5 - 1862865
PCB connector, nominal current: 8 A, number of positions: 3, pitch: 3.5 mm, connection method: Screw connection with
tension sleeve, color: green, contact surface: Tin
11/14/2019 Page 7 / 8
https://www.phoenixcontact.com/us/products/1788521
Printed-circuit board connector - MC 1,5/ 3-G-3,5 P26 THR - 1788521
Accessories
Printed-circuit board connector - MCVR 1,5/ 3-ST-3,5 - 1863165
PCB connector, nominal current: 8 A, number of positions: 3, pitch: 3.5 mm, connection method: Screw connection with
tension sleeve, color: green, contact surface: Tin
Printed-circuit board connector - FK-MCP 1,5/ 3-ST-3,5 - 1939921
PCB connector, nominal current: 8 A, number of positions: 3, pitch: 3.5 mm, connection method: Push-in spring
connection, color: green, contact surface: Tin
Printed-circuit board connector - FMC 1,5/ 3-ST-3,5 - 1952270
PCB connector, nominal current: 8 A, number of positions: 3, pitch: 3.5 mm, connection method: Push-in spring
connection, color: green, contact surface: Tin
Phoenix Contact 2019 © - all rights reserved
