1790364

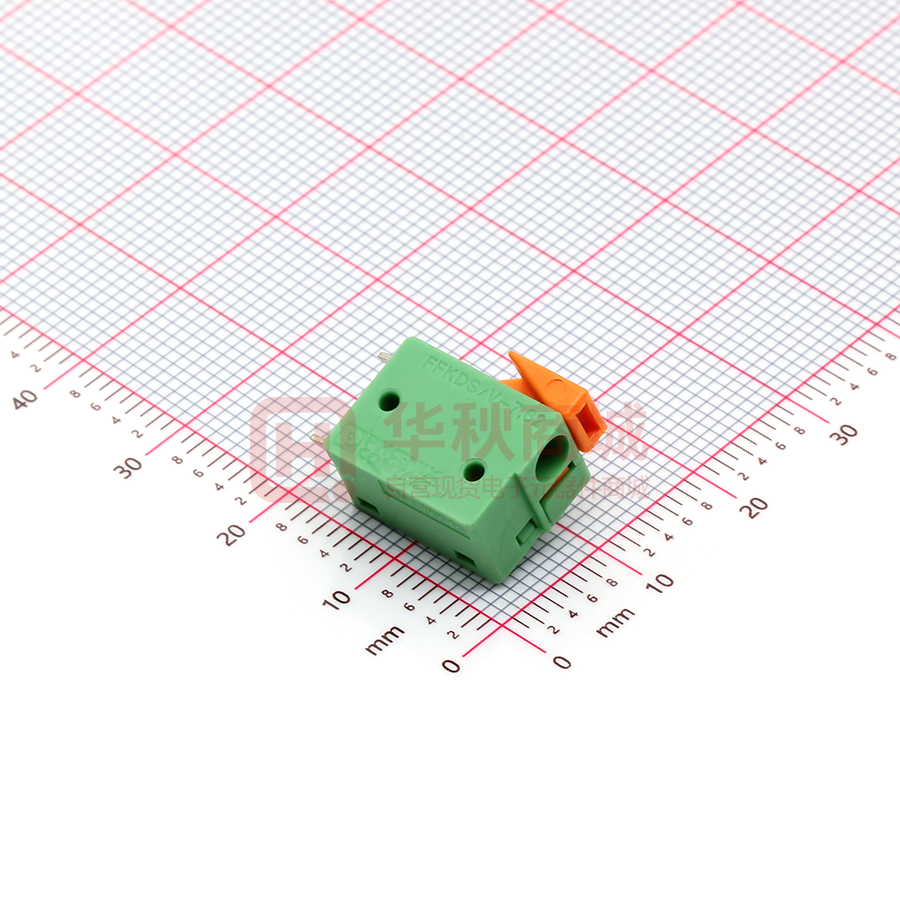

https://www.phoenixcontact.com/us/produkte/1790364 PCB terminal block - FFKDSA/V1-7,62 - 1790364 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) PC terminal block, Nominal current: 17.5 A, Nom. voltage: 630 V, Pitch: 7.62 mm, Number of positions: 1, Connection method: Spring-cage conn., Mounting: Soldering, Conductor/PCB connection direction: 90 °, Color: green, The article can be aligned to create different nos. of positions! Why buy this product  Two solder pins for a high level of stability on the PCB  Push-in direct plug-in technology for solid or stranded conductors with ferrules  Opening lever for user-friendly actuation using a screwdriver  When connecting stranded conductors without ferrules, the terminal point is opened using an orange opening lever   Key commercial data Packing unit 1 Minimum order quantity 50 Catalog page Page 143 (CC-2011) GTIN Custom tariff number 85369010 Country of origin GERMANY Technical data Dimensions / positions Length 12.7 mm Pitch 7.62 mm Number of positions 1 Pin dimensions 0,5 x 1 mm Hole diameter 1.3 mm Technical data Range of articles FFKDS(A)/V1 Insulating material group I Rated surge voltage (III/3) 6 kV Rated surge voltage (III/2) 6 kV Rated surge voltage (II/2) 6 kV 19.10.2012   Page 1 / 5 https://www.phoenixcontact.com/us/produkte/1790364 PCB terminal block - FFKDSA/V1-7,62 - 1790364 Technical data Technical data Rated voltage (III/3) 500 V Rated voltage (III/2) 630 V Rated voltage (II/2) 1000 V Connection in acc. with standard EN-VDE Nominal current IN 17.5 A Nominal cross section 1.5 mm² Maximum load current 17.5 A (with 1.5 mm2 conductor cross section) Insulating material PA Inflammability class according to UL 94 V0 Stripping length 10 mm Nominal voltage, UL/CUL Use Group B 300 V Nominal current, UL/CUL Use Group B 10 A Nominal voltage, UL/CUL Use Group D 300 V Nominal current, UL/CUL Use Group D 10 A Connection data Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 1.5 mm² Conductor cross section stranded min. 0.2 mm² Conductor cross section stranded max. 1.5 mm² Conductor cross section stranded, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section stranded, with ferrule without plastic sleeve max. 0.75 mm² Conductor cross section stranded, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section stranded, with ferrule with plastic sleeve max. 0.75 mm² Conductor cross section AWG/kcmil min. 24 Conductor cross section AWG/kcmil max 16 Minimum AWG according to UL/CUL 22 Maximum AWG according to UL/CUL 16 Classifications eclass eCl@ss 4.0 27141109 eCl@ss 4.1 27141109 eCl@ss 5.0 27141190 eCl@ss 5.1 27141190 eCl@ss 6.0 27261101 eCl@ss 7.0 27440401 19.10.2012   Page 2 / 5 https://www.phoenixcontact.com/us/produkte/1790364 PCB terminal block - FFKDSA/V1-7,62 - 1790364 Classifications etim ETIM 3.0 EC001121 ETIM 4.0 EC002643 ETIM 5.0 EC002643 unspsc UNSPSC 6.01 30211801 UNSPSC 7.0901 39121432 UNSPSC 11 39121432 UNSPSC 12.01 39121432 UNSPSC 13.2 39121432 Approvals Approvals Approvals CSA / UL Recognized / KEMA-KEUR / cUL Recognized / GOST / CCA / GOST / cULus Recognized Ex Approvals Approvals submitted Approval details CSA      B mm²/AWG/kcmil 16 16 Nominal current IN 10 A 10 A Nominal voltage UN 300 V 300 V     B Nominal current IN 13 A 13 A Nominal voltage UN 150 V 150 V D UL Recognized  D 19.10.2012   Page 3 / 5 https://www.phoenixcontact.com/us/produkte/1790364 PCB terminal block - FFKDSA/V1-7,62 - 1790364 Approvals KEMA-KEUR      mm²/AWG/kcmil 1.5 Nominal voltage UN 500 V cUL Recognized      B Nominal current IN 13 A 13 A Nominal voltage UN 150 V 150 V D GOST  CCA      mm²/AWG/kcmil 1.5 Nominal voltage UN 500 V GOST  cULus Recognized  Accessories Accessories Marking Marker cards - SK 7,62/5:FORTL.ZAHLEN - 0804552 Marker cards, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 100, Mounting type: Adhesive, For terminal block width: 7.62 mm     Necessary add-on products 19.10.2012   Page 4 / 5 https://www.phoenixcontact.com/us/produkte/1790364 PCB terminal block - FFKDSA/V1-7,62 - 1790364 Accessories PCB terminal block - FFKDSA1/V1-7,62 - 1790490 PC terminal block, Nominal current: 17.5 A, Nom. voltage: 630 V, Pitch: 7.62 mm, Number of positions: 1, Connection method: Spring-cage connection, Mounting: Soldering, Conductor/PCB connection direction: 90 °, Color: green, The article can be aligned to create different nos. of positions!     Drawings Drilling diagram 3,5 Dimensioned drawing 7,62 1,43 3,4 1,3 7,62 13,6 12,7 7,62 3,5 7,62 1,43 © Phoenix Contact 2012 - all rights reserved http://www.phoenixcontact.com 19.10.2012   Page 5 / 5
