Printed-circuit board connector - DFMC 1,5/16-ST-3,5-LR - 1790629
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 16 with 32 contacts, pitch: 3.5 mm,
connection method: spring-cage connection, color: green, contact surface: tin

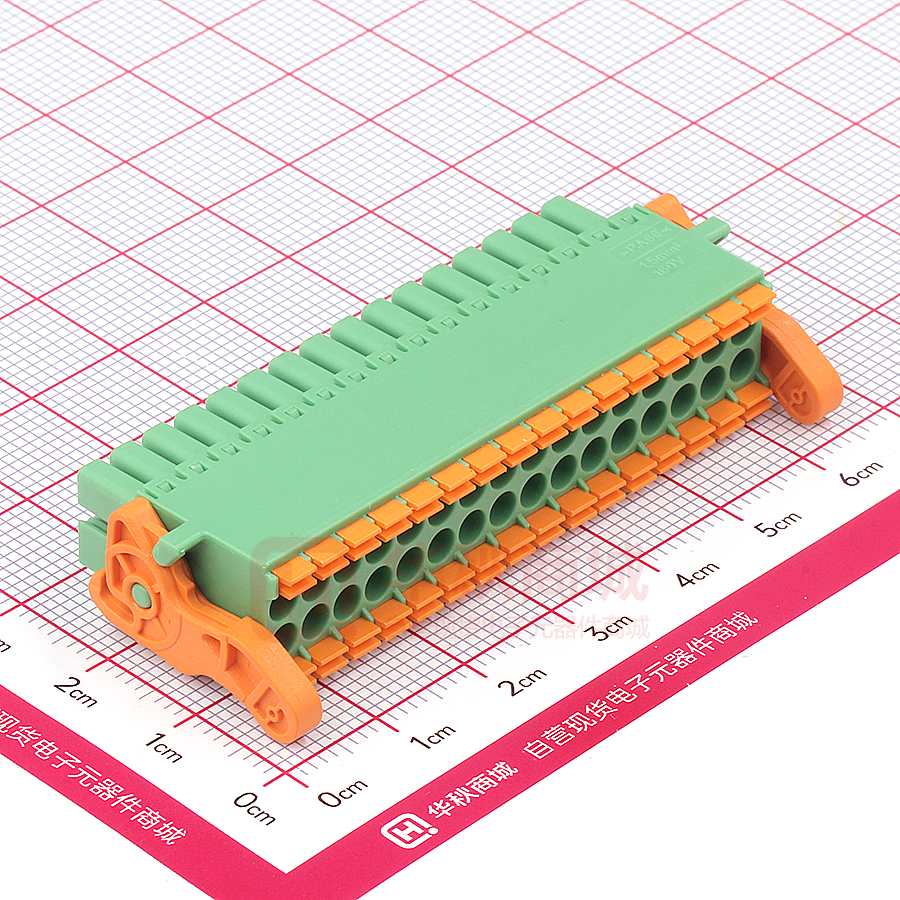

The figure shows a 10-pos. version
with 20 contacts
Your advantages
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive use through colour coded actuation lever
Optimized for tight installation situations: operation and conductor connection from one direction
Automatic locking and intuitive release through Lock and Release operating lever in contrasting color
Key Commercial Data
Packing unit
1 pc
GTIN
GTIN
4046356594684
Weight per Piece (excluding packing)
16.600 g
Custom tariff number
85366990
Country of origin
Germany
Technical data
Dimensions
Length [ l ]
27.79 mm
Width [ w ]
62.9 mm
Height [ h ]
13.25 mm
Pitch
3.5 mm
08/28/2019 Page 1 / 6
https://www.phoenixcontact.com/us/products/1790629
Printed-circuit board connector - DFMC 1,5/16-ST-3,5-LR - 1790629
Technical data
Dimensions
Dimension a
52.5 mm
General
Range of articles
DFMC 1,5/..-ST-LR
Number of positions
16
Connection method
Push-in spring connection
Insulating material group
I
Rated surge voltage (III/3)
2.5 kV
Rated surge voltage (III/2)
2.5 kV
Rated surge voltage (II/2)
2.5 kV
Rated voltage (III/3)
160 V
Rated voltage (III/2)
160 V
Rated voltage (II/2)
320 V
Connection in acc. with standard
EN-VDE
Nominal current IN
8A
Nominal cross section
1.5 mm²
Maximum load current
8A
Insulating material
PA
Flammability rating according to UL 94
V0
Internal cylindrical gage
A1
Stripping length
10 mm
Connection data
Conductor cross section solid min.
0.2 mm²
Conductor cross section solid max.
1.5 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.
0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.
1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.
0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.
0.75 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
16
Minimum AWG according to UL/CUL
16
Maximum AWG according to UL/CUL
24
Specifications for ferrules
Recommended crimping pliers
1212034 CRIMPFOX 6
Ferrules without insulating collar, according to DIN 46228‑1
Cross section: 0.25 mm²; Length: 7 mm
08/28/2019 Page 2 / 6
https://www.phoenixcontact.com/us/products/1790629
Printed-circuit board connector - DFMC 1,5/16-ST-3,5-LR - 1790629
Technical data
Specifications for ferrules
Cross section: 0.34 mm²; Length: 7 mm
Cross section: 0.5 mm²; Length: 8 mm ... 10 mm
Cross section: 0.75 mm²; Length: 8 mm ... 10 mm
Cross section: 1 mm²; Length: 8 mm ... 10 mm
Cross section: 1.5 mm²; Length: 10 mm
Standards and Regulations
Connection in acc. with standard
EN-VDE
CUL
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Classifications
eCl@ss
eCl@ss 4.0
27260700
eCl@ss 4.1
27260700
eCl@ss 5.0
27260700
eCl@ss 5.1
27260700
eCl@ss 6.0
27260700
eCl@ss 7.0
27440309
eCl@ss 8.0
27440309
eCl@ss 9.0
27440309
ETIM
ETIM 4.0
EC002638
ETIM 5.0
EC002638
ETIM 6.0
EC002638
ETIM 7.0
EC002638
UNSPSC
UNSPSC 6.01
30211810
UNSPSC 7.0901
39121409
UNSPSC 11
39121409
UNSPSC 12.01
39121409
UNSPSC 13.2
39121409
08/28/2019 Page 3 / 6
https://www.phoenixcontact.com/us/products/1790629
Printed-circuit board connector - DFMC 1,5/16-ST-3,5-LR - 1790629
Approvals
Approvals
Approvals
IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized
Ex Approvals
Approval details
IECEE CB Scheme
http://www.iecee.org/
Nominal voltage UN
160 V
Nominal current IN
8A
VDE Gutachten mit
Fertigungsüberwachung
DE1-60359_B1_B2
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
Nominal voltage UN
160 V
Nominal current IN
8A
mm²/AWG/kcmil
0.2-1.5
40038423
EAC
B.01742
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
E60425-19920306
B
C
D
Nominal voltage UN
300 V
50 V
300 V
Nominal current IN
8A
8A
8A
mm²/AWG/kcmil
24-16
24-16
24-16
08/28/2019 Page 4 / 6
https://www.phoenixcontact.com/us/products/1790629
Printed-circuit board connector - DFMC 1,5/16-ST-3,5-LR - 1790629
Accessories
Accessories
Coding element
Coding profile - CP-DMC 1,5 NAT - 1790647
Coding profile, for insertion between the coding ribs of the connector and the header following the reflow soldering
process, insulating material, color: natural
Crimping tool
Crimping pliers - CRIMPFOX 6 - 1212034
Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar
according to DIN 46228 Part 4, 0.25 mm² ... 6.0 mm², lateral entry, trapezoidal crimp
Screwdriver tools
Screwdriver - SZS 0,4X2,5 VDE - 1205037
Screwdriver, slot-headed, VDE insulated, size: 0.4 x 2.5 x 80 mm, 2-component grip, with non-slip grip
Additional products
Printed-circuit board connector - DMC 1,5/16-G1F-3,5-LR P20THR - 1787153
PCB headers, nominal current: 8 A, number of positions: 16, pitch: 3.5 mm, color: black, contact surface: Tin, mounting:
THR soldering
08/28/2019 Page 5 / 6
