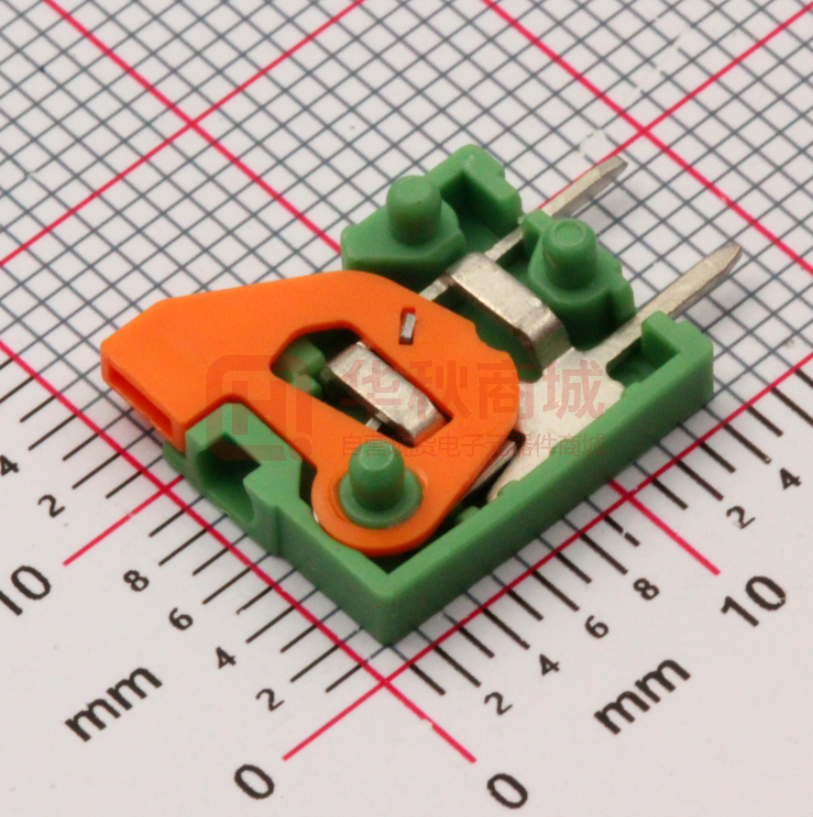

https://www.phoenixcontact.com/us/products/1791813 PCB terminal block - FFKDS/V-2,54 - 1791813 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB terminal block, Nominal current: 6 A, Nom. voltage: 160 V, Pitch: 2.54 mm, Number of positions: 1, Connection method: Push-in spring connection, Mounting: Wave soldering, Conductor/PCB connection direction: 90 °, Color: green, The article can be aligned to create different nos. of positions! Product Features ■ ■ ■ ■ ■ ■ ■ Time saving push-in connection, tools not required Defined contact force ensures that contact remains stable over the long term Intuitive use through colour coded actuation lever Operation and conductor connection from one direction enable integration into front of device Two solder pins reduce the mechanical strain on the soldering spots The latch on the side enables various numbers of positions to be combined Vertical connection enables multi-row arrangement on the PCB Key Commercial Data Packing unit 1 pc Minimum order quantity 250 pc GTIN Weight per Piece (excluding packing) 0.56 g Custom tariff number 85369010 Country of origin Germany Technical data Dimensions Length 12.6 mm Pitch 2.54 mm Width 2.54 mm 04/04/2016   Page 1 / 6 https://www.phoenixcontact.com/us/products/1791813 PCB terminal block - FFKDS/V-2,54 - 1791813 Technical data Dimensions Constructional height 12.6 mm Height 16 mm Length of the solder pin 3.4 mm Pin dimensions 0,5 x 0,8 mm Hole diameter 1.1 mm General Range of articles FFKDS(A)/V Insulating material group I Rated surge voltage (III/3) 2.5 kV Rated surge voltage (III/2) 2.5 kV Rated surge voltage (II/2) 2.5 kV Rated voltage (III/3) 63 V Rated voltage (III/2) 160 V Rated voltage (II/2) 320 V Connection in acc. with standard EN-VDE Nominal current IN 6A Nominal cross section 0.5 mm² Maximum load current 6 A (with 0.5 mm² conductor cross section) Insulating material PA Solder pin surface Sn Flammability rating according to UL 94 V0 Stripping length 11 mm Number of positions 1 Connection data Conductor cross section solid min. 0.14 mm² Conductor cross section solid max. 0.5 mm² Conductor cross section flexible min. 0.14 mm² Conductor cross section flexible max. 0.5 mm² Conductor cross section AWG min. 26 Conductor cross section AWG max. 20 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 04/04/2016   Page 2 / 6 https://www.phoenixcontact.com/us/products/1791813 PCB terminal block - FFKDS/V-2,54 - 1791813 Classifications eCl@ss eCl@ss 4.0 27141109 eCl@ss 4.1 27141109 eCl@ss 5.0 27141190 eCl@ss 5.1 27141190 eCl@ss 6.0 27261101 eCl@ss 7.0 27440401 eCl@ss 8.0 27440401 eCl@ss 9.0 27440401 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002643 ETIM 5.0 EC002643 UNSPSC UNSPSC 6.01 30211801 UNSPSC 7.0901 39121432 UNSPSC 11 39121432 UNSPSC 12.01 39121432 UNSPSC 13.2 39121432 Approvals Approvals Approvals CSA / UL Recognized / KEMA-KEUR / cUL Recognized / CCA / CCA / IECEE CB Scheme / EAC / EAC / cULus Recognized Ex Approvals Approvals submitted Approval details 04/04/2016   Page 3 / 6 https://www.phoenixcontact.com/us/products/1791813 PCB terminal block - FFKDS/V-2,54 - 1791813 Approvals CSA    B mm²/AWG/kcmil 20 Nominal current IN 6A Nominal voltage UN 150 V UL Recognized    B mm²/AWG/kcmil 26-20 Nominal current IN 6A Nominal voltage UN 150 V KEMA-KEUR      mm²/AWG/kcmil 0.5 Nominal voltage UN 63 V cUL Recognized    B mm²/AWG/kcmil 26-20 Nominal current IN 6A Nominal voltage UN 150 V CCA      mm²/AWG/kcmil 0.5 Nominal voltage UN 63 V 04/04/2016   Page 4 / 6 https://www.phoenixcontact.com/us/products/1791813 PCB terminal block - FFKDS/V-2,54 - 1791813 Approvals CCA      mm²/AWG/kcmil 0.5 Nominal voltage UN 63 V IECEE CB Scheme      mm²/AWG/kcmil 0.5 Nominal voltage UN 63 V EAC  EAC  cULus Recognized  Drawings Diagram Drilling diagram 2,54 2,8 5,08 1,1 0,9 Type: FFKDS/V-2,54 Tested according to DIN EN 60512-5-2:2003-01 Reduction factor = 1 Number of positions: 5 04/04/2016   Page 5 / 6 https://www.phoenixcontact.com/us/products/1791813 PCB terminal block - FFKDS/V-2,54 - 1791813 Dimensional drawing 3,4 13,6 12,6 2,8 5,08 0,9 2,54 Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 04/04/2016   Page 6 / 6
