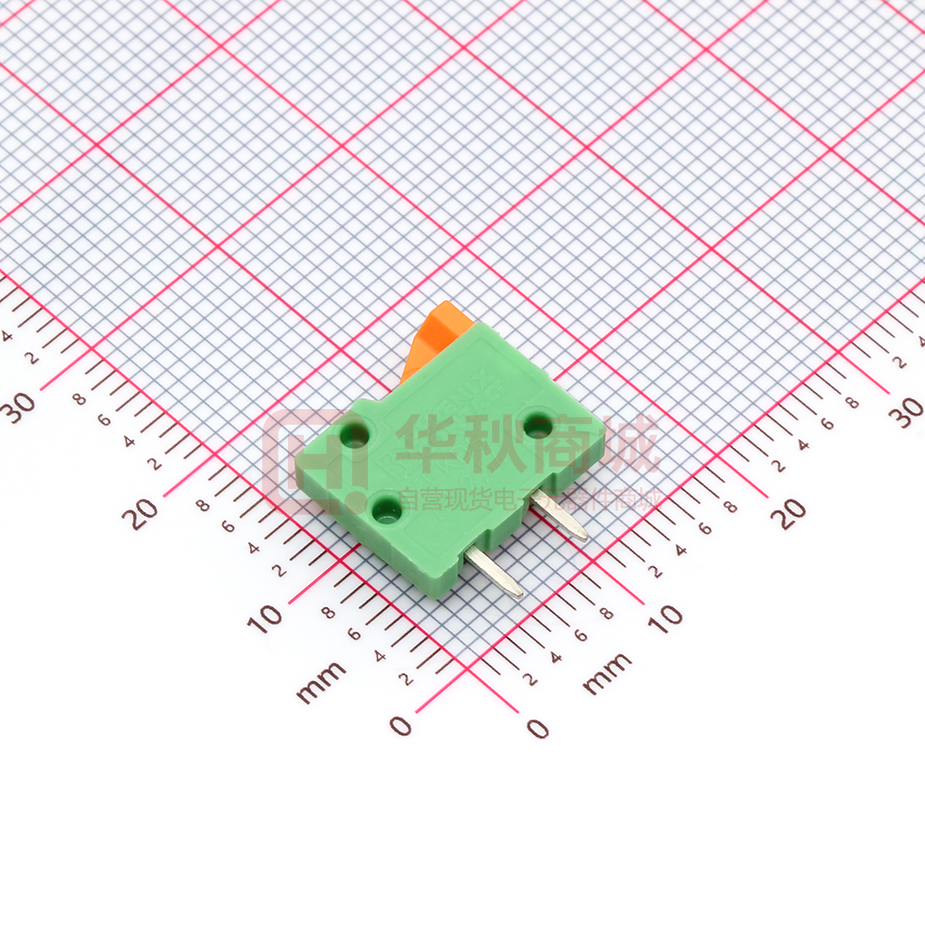

https://www.phoenixcontact.com/gb/products/1791826 PCB terminal block - FFKDS/H-2,54 - 1791826 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB terminal block, Nominal current: 6 A, Nom. voltage: 160 V, Pitch: 2.54 mm, Number of positions: 1, Connection method: Push-in spring connection, Mounting: Wave soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions! Why buy this product  Time saving push-in connection, tools not required  Defined contact force ensures that contact remains stable over the long term  Intuitive use through colour coded actuation lever  Operation and conductor connection from one direction enable integration into front of device  Two solder pins reduce the mechanical strain on the soldering spots  The latching on the side enables various numbers of positions to be combined Key Commercial Data Packing unit 250 STK Minimum order quantity 250 STK GTIN GTIN 4017918044459 Weight per Piece (excluding packing) 0.560 g Custom tariff number 85369010 Country of origin Germany Technical data Dimensions Length 13.6 mm Pitch 2.54 mm Width 5.04 mm Constructional height 12.6 mm Height 16.2 mm Length of the solder pin 3.6 mm 12/23/2016   Page 1 / 6 https://www.phoenixcontact.com/gb/products/1791826 PCB terminal block - FFKDS/H-2,54 - 1791826 Technical data Dimensions Pin dimensions 0,5 x 0,8 mm Pin spacing 5.08 mm Hole diameter 1.1 mm General Range of articles FFKDS(A)/H Insulating material group I Rated surge voltage (III/3) 2.5 kV Rated surge voltage (III/2) 2.5 kV Rated surge voltage (II/2) 2.5 kV Rated voltage (III/3) 63 V Rated voltage (III/2) 160 V Rated voltage (II/2) 320 V Connection in acc. with standard EN-VDE Nominal current IN 6A Nominal cross section 0.5 mm² Maximum load current 6 A (with 0.5 mm² conductor cross section) Insulating material PA Solder pin surface Sn Flammability rating according to UL 94 V0 Stripping length 11 mm Number of positions 1 Connection data Conductor cross section solid min. 0.14 mm² Conductor cross section solid max. 0.5 mm² Conductor cross section flexible min. 0.14 mm² Conductor cross section flexible max. 0.5 mm² Conductor cross section AWG min. 26 Conductor cross section AWG max. 20 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings 12/23/2016   Page 2 / 6 https://www.phoenixcontact.com/gb/products/1791826 PCB terminal block - FFKDS/H-2,54 - 1791826 Drilling diagram Current carrying capacity [A] 2,54 5,5 5,08 1,1 0,9 Diagram 16 14 12 10 8 2 6 4 2 0 0,5 mm 0 20 40 60 80 100 Ambient temperature [°C] Type: FFKDS/H-2,54 Test following DIN EN 60512-5-2:2003-01 Reduction factor = 1 No. of positions: 5 Dimensional drawing 3,6 12,6 13,6 5,5 5,08 0,9 2,54 Classifications eCl@ss eCl@ss 4.0 27141109 eCl@ss 4.1 27141109 eCl@ss 5.0 27141190 eCl@ss 5.1 27141190 eCl@ss 6.0 27261101 eCl@ss 7.0 27440401 eCl@ss 8.0 27440401 eCl@ss 9.0 27440401 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002643 ETIM 5.0 EC002643 ETIM 6.0 EC002643 UNSPSC UNSPSC 6.01 30211801 UNSPSC 7.0901 39121432 UNSPSC 11 39121432 12/23/2016   Page 3 / 6 https://www.phoenixcontact.com/gb/products/1791826 PCB terminal block - FFKDS/H-2,54 - 1791826 Classifications UNSPSC UNSPSC 12.01 39121432 UNSPSC 13.2 39121432 Approvals Approvals Approvals CSA / UL Recognized / KEMA-KEUR / cUL Recognized / CCA / IECEE CB Scheme / EAC / cULus Recognized Ex Approvals Approval details CSA    http://www.csagroup.org/services/testingand-certification/certified-product-listing/   B mm²/AWG/kcmil 20 Nominal current IN 6A Nominal voltage UN 150 V UL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   B mm²/AWG/kcmil 26-20 Nominal current IN 6A Nominal voltage UN 150 V KEMA-KEUR    13631  http://www.dekra-certification.com     mm²/AWG/kcmil 0.5 Nominal voltage UN 63 V  FILE E 60425  2160724.01 12/23/2016   Page 4 / 6 https://www.phoenixcontact.com/gb/products/1791826 PCB terminal block - FFKDS/H-2,54 - 1791826 Approvals  cUL Recognized   http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   B mm²/AWG/kcmil 26-20 Nominal current IN 6A Nominal voltage UN 150 V CCA     NTR NL-7074  http://www.iecee.org/  NL-25836     mm²/AWG/kcmil 0.5 Nominal voltage UN 63 V  IECEE CB Scheme   FILE E 60425     mm²/AWG/kcmil 0.5 Nominal voltage UN 63 V EAC      B.01742 cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   Accessories Accessories Connector Ferrule - AI 0,25-10 YE - 3241128 Ferrule, Sleeve length: 10 mm, Length: 14.5 mm, Color: yellow     Labeled terminal marker 12/23/2016   Page 5 / 6 https://www.phoenixcontact.com/gb/products/1791826 PCB terminal block - FFKDS/H-2,54 - 1791826 Accessories Marker card - SK 2,54/2,8:FORTL.ZAHLEN - 0804853 Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 99, Mounting type: Adhesive, for terminal block width: 2.54 mm, Lettering field: 2.54 x 2.8 mm     Necessary add-on products Termination block - FFKDSA1/H-5,08 - 1791868 PCB terminal block, Nominal current: 6 A, Nom. voltage: 160 V, Pitch: 5.08 mm, Number of positions: 1, Connection method: Push-in spring connection, Mounting: Wave soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions!     Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 12/23/2016   Page 6 / 6
