1791868

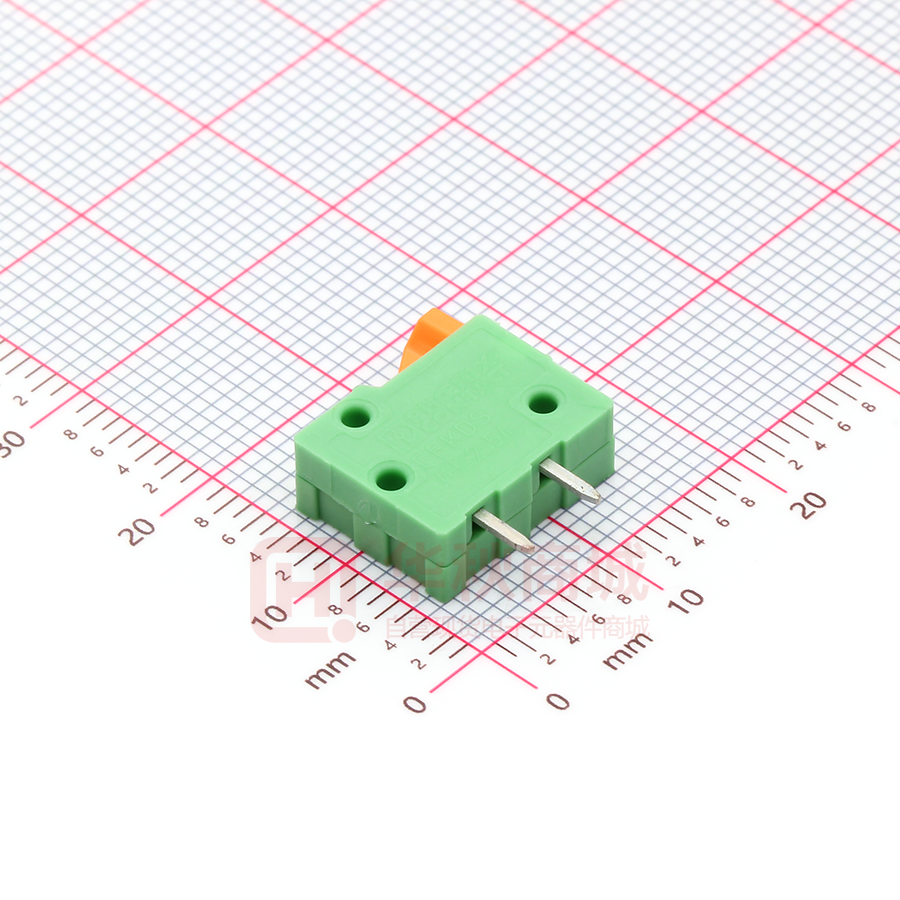

https://www.phoenixcontact.com/gb/products/1791868 Termination block - FFKDSA1/H-5,08 - 1791868 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB terminal block, Nominal current: 6 A, Nom. voltage: 160 V, Pitch: 5.08 mm, Number of positions: 1, Connection method: Push-in spring connection, Mounting: Wave soldering, Conductor/PCB connection direction: 0 °, Color: green, The article can be aligned to create different nos. of positions! Why buy this product  Time saving push-in connection, tools not required  Defined contact force ensures that contact remains stable over the long term  Intuitive use through colour coded actuation lever  Operation and conductor connection from one direction enable integration into front of device  Two solder pins reduce the mechanical strain on the soldering spots  The latching on the side enables various numbers of positions to be combined Key Commercial Data Packing unit 250 STK GTIN GTIN 4017918044473 Weight per Piece (excluding packing) 0.780 g Custom tariff number 85369010 Country of origin Germany Technical data Dimensions Length 13.6 mm Pitch 5.08 mm Constructional height 13 mm Length of the solder pin 3.6 mm Pin dimensions 0,5 x 0,8 mm Hole diameter 1.1 mm General 12/23/2016   Page 1 / 4 https://www.phoenixcontact.com/gb/products/1791868 Termination block - FFKDSA1/H-5,08 - 1791868 Technical data General Range of articles FFKDS(A)/H Insulating material group I Rated surge voltage (III/3) 2.5 kV Rated surge voltage (III/2) 2.5 kV Rated surge voltage (II/2) 2.5 kV Rated voltage (III/3) 63 V Rated voltage (III/2) 160 V Rated voltage (II/2) 320 V Connection in acc. with standard EN-VDE Nominal current IN 6A Nominal cross section 0.5 mm² Maximum load current 6 A (with 0.5 mm² conductor cross section) Flammability rating according to UL 94 V0 Stripping length 11 mm Number of positions 1 Connection data Conductor cross section solid min. 0.14 mm² Conductor cross section solid max. 0.5 mm² Conductor cross section flexible min. 0.14 mm² Conductor cross section flexible max. 0.5 mm² Conductor cross section AWG min. 26 Conductor cross section AWG max. 20 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Classifications eCl@ss eCl@ss 4.0 27141109 eCl@ss 4.1 27141109 eCl@ss 5.0 27141190 eCl@ss 5.1 27141190 eCl@ss 6.0 27261101 eCl@ss 7.0 27440401 12/23/2016   Page 2 / 4 https://www.phoenixcontact.com/gb/products/1791868 Termination block - FFKDSA1/H-5,08 - 1791868 Classifications eCl@ss eCl@ss 8.0 27440401 eCl@ss 9.0 27440401 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002643 ETIM 5.0 EC002643 ETIM 6.0 EC002643 UNSPSC UNSPSC 6.01 30211801 UNSPSC 7.0901 39121432 UNSPSC 11 39121432 UNSPSC 12.01 39121432 UNSPSC 13.2 39121432 Approvals Approvals Approvals CSA / UL Recognized / KEMA-KEUR / cUL Recognized / CCA / IECEE CB Scheme / EAC / cULus Recognized Ex Approvals Approval details CSA    http://www.csagroup.org/services/testingand-certification/certified-product-listing/   B mm²/AWG/kcmil 20 Nominal current IN 6A Nominal voltage UN 150 V UL Recognized    13631  http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   B mm²/AWG/kcmil 26-20  FILE E 60425 12/23/2016   Page 3 / 4 https://www.phoenixcontact.com/gb/products/1791868 Termination block - FFKDSA1/H-5,08 - 1791868 Approvals   B Nominal current IN 6A Nominal voltage UN 150 V KEMA-KEUR    http://www.dekra-certification.com     mm²/AWG/kcmil 0.5 Nominal voltage UN 63 V cUL Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   B mm²/AWG/kcmil 26-20 Nominal current IN 6A Nominal voltage UN 150 V CCA   NTR NL-7074  http://www.iecee.org/  NL-25836   mm²/AWG/kcmil 0.5 Nominal voltage UN 63 V   FILE E 60425     IECEE CB Scheme   2160724.01     mm²/AWG/kcmil 0.5 Nominal voltage UN 63 V EAC      B.01742 cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 12/23/2016   Page 4 / 4
