Printed-circuit board connector - MVSTBR 2,5/ 8-ST-5,08 - 1792304
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 12 A, Rated voltage (III/2): 320 V, Number of positions: 8, Pitch: 5.08 mm,
Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin

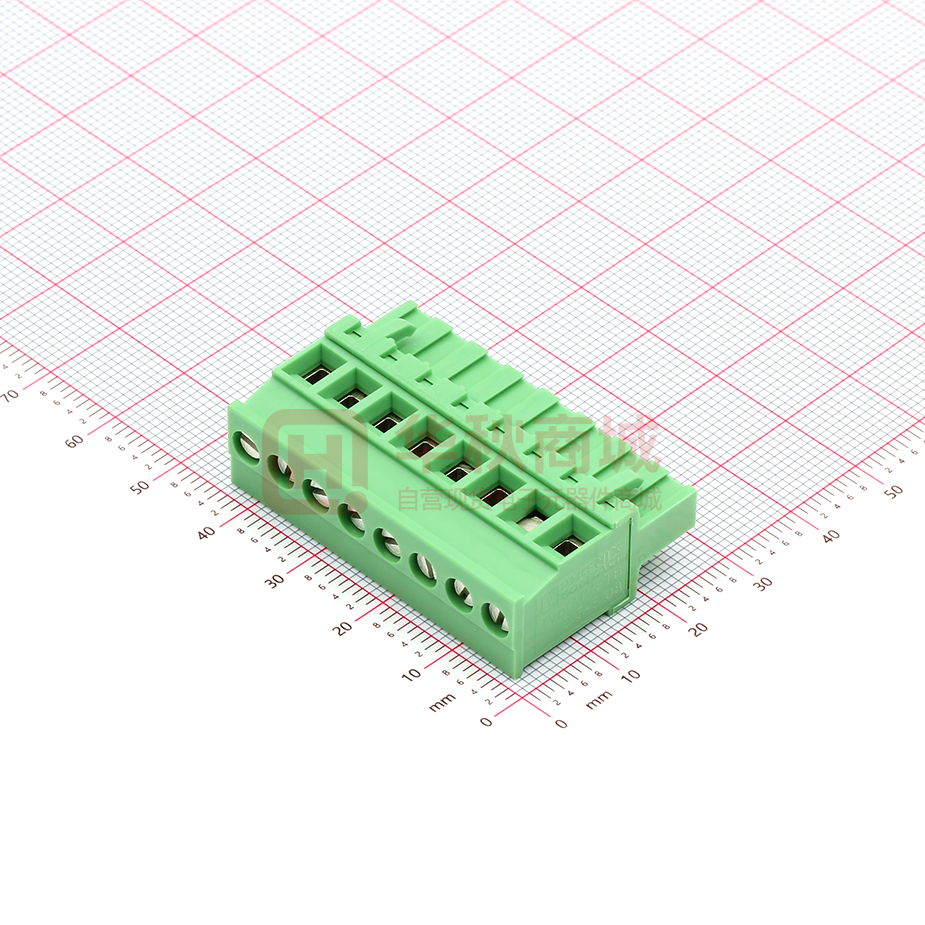

The figure shows a 10-position
version of the product
Why buy this product
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
90° difference in plug-in direction for the conductor connection, reduces the risk of the connector being pulled out with the conductor and
narrower conductor routing to the application
Key Commercial Data
Packing unit
50 STK
GTIN
GTIN
4017918044787
Weight per Piece (excluding packing)
16.420 g
Custom tariff number
85366990
Country of origin
Germany
Technical data
Dimensions
Width
40.64 mm
Pitch
5.08 mm
Dimension a
35.56 mm
General
Range of articles
MVSTBR 2,5/..-ST
Type of contact
Female connector
Number of positions
8
12/23/2016 Page 1 / 14
https://www.phoenixcontact.com/gb/products/1792304
Printed-circuit board connector - MVSTBR 2,5/ 8-ST-5,08 - 1792304
Technical data
General
Connection method
Screw connection with tension sleeve
Insulating material group
I
Rated surge voltage (III/3)
4 kV
Rated surge voltage (III/2)
4 kV
Rated surge voltage (II/2)
4 kV
Rated voltage (III/3)
250 V
Rated voltage (III/2)
320 V
Rated voltage (II/2)
630 V
Connection in acc. with standard
EN-VDE
Nominal current IN
12 A
Nominal cross section
2.5 mm²
Maximum load current
12 A (with a 2.5 mm² conductor cross section)
Insulating material
PA
Flammability rating according to UL 94
V0
Internal cylindrical gage
A3
Stripping length
7 mm
Screw thread
M3
Tightening torque, min
0.5 Nm
Tightening torque max
0.6 Nm
Connection data
Conductor cross section solid min.
0.2 mm²
Conductor cross section solid max.
2.5 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.
0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.
0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
12
2 conductors with same cross section, solid min.
0.2 mm²
2 conductors with same cross section, solid max.
1 mm²
2 conductors with same cross section, stranded min.
0.2 mm²
2 conductors with same cross section, stranded max.
1.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
1 mm²
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
0.5 mm²
12/23/2016 Page 2 / 14
https://www.phoenixcontact.com/gb/products/1792304
Printed-circuit board connector - MVSTBR 2,5/ 8-ST-5,08 - 1792304
Technical data
Connection data
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
1.5 mm²
Minimum AWG according to UL/CUL
30
Maximum AWG according to UL/CUL
12
Standards and Regulations
Connection in acc. with standard
EN-VDE
CSA
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
Diagram
24
Current strength [A]
Current carrying capacity [A]
Diagram
20
16
2
12
1 = 2-pos.
2 = 5-pos.
3 = 12-pos.
4 = 24-pos.
8
4
0
0
20
3
40
1
4
60
80
= 2-pos.
= 5-pos.
= 16-pos.
= 24-pos.
0
100
Ambient temperature [°C]
Type: MVSTBR 2,5/...-ST(5,08) with MSTBA 2,5/...-G(-5,08)
24
22
20
18
16
14
12
10
8
6
4
2
0
10
20
30
40
50
60
70
80
90 100 110
Ambient temperature [°C]
Type: MVSTBR 2,5/...-ST-5,08 with MSTBVK 2,5/...-G-5,08
Classifications
eCl@ss
eCl@ss 4.0
272607xx
eCl@ss 4.1
27260701
eCl@ss 5.0
27260701
eCl@ss 5.1
27260701
eCl@ss 6.0
27260704
eCl@ss 7.0
27440402
eCl@ss 8.0
27440309
eCl@ss 9.0
27440309
ETIM
ETIM 3.0
EC001121
ETIM 4.0
EC002638
ETIM 5.0
EC002638
12/23/2016 Page 3 / 14
