Printed-circuit board connector - MC 1,5/ 5-G-3,81 - 1803303
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB headers, nominal current: 8 A, number of positions: 5, pitch: 3.81 mm, color: green, contact surface: Tin,
mounting: Wave soldering

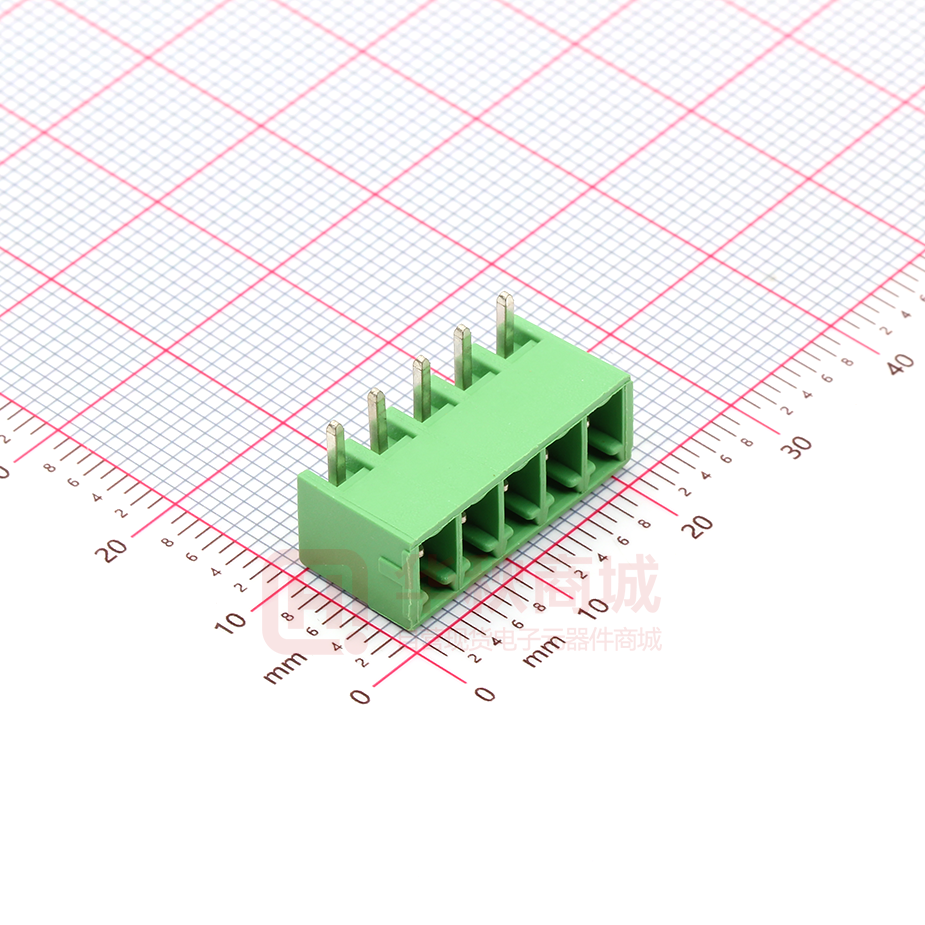

The figure shows a 10-position
version of the product
Your advantages
Well-known mounting principle allows worldwide use
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Key Commercial Data
Packing unit
1 pc
GTIN
GTIN
4017918045616
Weight per Piece (excluding packing)
1.360 g
Custom tariff number
85366930
Country of origin
Germany
Technical data
Dimensions
Length [ l ]
9.2 mm
Width
20.44 mm
Pitch
3.81 mm
Dimension a
15.24 mm
Width [ w ]
20.44 mm
Height [ h ]
10.65 mm
09/10/2019 Page 1 / 10
https://www.phoenixcontact.com/us/products/1803303
Printed-circuit board connector - MC 1,5/ 5-G-3,81 - 1803303
Technical data
Dimensions
Height
7.25 mm
Length of the solder pin
3.4 mm
Pin dimensions
0.8 x 0.8 mm
Length
9.2 mm
General
Range of articles
MC 1,5/..-G
Insulating material group
IIIa
Rated surge voltage (III/3)
2.5 kV
Rated surge voltage (III/2)
2.5 kV
Rated surge voltage (II/2)
2.5 kV
Rated voltage (III/3)
160 V
Rated voltage (III/2)
160 V
Rated voltage (II/2)
250 V
Connection in acc. with standard
EN-VDE
Nominal current IN
8A
Maximum load current
8A
Insulating material
PBT
Flammability rating according to UL 94
V0
Color
green
Number of positions
5
Standards and Regulations
Connection in acc. with standard
EN-VDE
CSA
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
09/10/2019 Page 2 / 10
https://www.phoenixcontact.com/us/products/1803303
Printed-circuit board connector - MC 1,5/ 5-G-3,81 - 1803303
Drilling diagram
09/10/2019 Page 3 / 10
https://www.phoenixcontact.com/us/products/1803303
Printed-circuit board connector - MC 1,5/ 5-G-3,81 - 1803303
Diagram
Type: MC 1,5/...-ST-3,81 with MC 1,5/...-G-3,81
Diagram
Type: MC 1,5/...-ST-3,81 with MC 1,5/...-G-3,81
09/10/2019 Page 4 / 10
https://www.phoenixcontact.com/us/products/1803303
Printed-circuit board connector - MC 1,5/ 5-G-3,81 - 1803303
Diagram
Type: IMC 1,5/...-G-3,81 with MC 1,5/...-G-3,81
Dimensional drawing
Classifications
eCl@ss
eCl@ss 4.0
27260700
eCl@ss 4.1
27260700
09/10/2019 Page 5 / 10
https://www.phoenixcontact.com/us/products/1803303
Printed-circuit board connector - MC 1,5/ 5-G-3,81 - 1803303
Classifications
eCl@ss
eCl@ss 5.0
27260700
eCl@ss 5.1
27260700
eCl@ss 6.0
27260700
eCl@ss 7.0
27440402
eCl@ss 8.0
27440402
eCl@ss 9.0
27440402
ETIM
ETIM 3.0
EC001121
ETIM 4.0
EC002637
ETIM 5.0
EC002637
ETIM 6.0
EC002637
ETIM 7.0
EC002637
UNSPSC
UNSPSC 6.01
30211810
UNSPSC 7.0901
39121409
UNSPSC 11
39121409
UNSPSC 12.01
39121409
UNSPSC 13.2
39121409
Approvals
Approvals
Approvals
CSA / IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized
Ex Approvals
Approval details
CSA
http://www.csagroup.org/services-industries/product-listing/
B
D
Nominal voltage UN
300 V
300 V
13631
09/10/2019 Page 6 / 10
https://www.phoenixcontact.com/us/products/1803303
Printed-circuit board connector - MC 1,5/ 5-G-3,81 - 1803303
Approvals
B
D
Nominal current IN
8A
8A
IECEE CB Scheme
http://www.iecee.org/
Nominal voltage UN
160 V
Nominal current IN
8A
VDE Gutachten mit
Fertigungsüberwachung
DE1-60987-B1B2
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
Nominal voltage UN
160 V
Nominal current IN
8A
40011723
EAC
B.01742
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
E60425-20110128
B
D
Nominal voltage UN
300 V
300 V
Nominal current IN
8A
8A
Accessories
Accessories
Coding element
Coding profile - CP-MSTB - 1734634
Coding profile, is inserted into the slot on the plug or inverted header, red insulating material
09/10/2019 Page 7 / 10
https://www.phoenixcontact.com/us/products/1803303
Printed-circuit board connector - MC 1,5/ 5-G-3,81 - 1803303
Accessories
Fiber optic
Fiber optic - MC 1,5/10-LWL 1,5-3,81 - 1841174
MINI COMBICON fiber optics, 3.81 mm pitch, 10-pos., separable for other numbers of positions (minimum: 2-pos.),
inserts into the back of the MC header, color: transparent, dimension a: 1.5 mm
Fiber optic - MC 1,5/10-LWL 2,3-3,81 - 1841190
MINI COMBICON fiber optics, 3.81 mm pitch, 10-pos., separable for other numbers of positions (minimum: 2-pos.),
inserts into the back of the MC header, color: transparent, dimension a: 2.3 mm
Fiber optic - MC 1,5/10-LWL 4-3,81 - 1841213
MINI COMBICON fiber optics, 3.81 mm pitch, 10-pos., separable for other numbers of positions (minimum: 2-pos.),
inserts into the back of the MC header, color: transparent, dimension a: 4 mm
Labeled terminal marker
Marker card - SK 3,81/2,8:FORTL.ZAHLEN - 0804109
Marker card, Card, white, labeled, Horizontal: consecutive numbers 1 ... 10, 11 ... 20, etc. up to 91 ... (99)100, mounting
type: adhesive, for terminal block width: 3.81 mm, lettering field size: 3.81 x 2.8 mm
Marker pen
09/10/2019 Page 8 / 10
https://www.phoenixcontact.com/us/products/1803303
Printed-circuit board connector - MC 1,5/ 5-G-3,81 - 1803303
Accessories
Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
Additional products
Printed-circuit board connector - FMC 1,5/ 5-ST-3,81 - 1745920
PCB connector, nominal current: 8 A, number of positions: 5, pitch: 3.81 mm, connection method: Push-in spring
connection, color: green, contact surface: Tin
Printed-circuit board connector - MC 1,5/ 5-ST-3,81 - 1803604
PCB connector, nominal current: 8 A, number of positions: 5, pitch: 3.81 mm, connection method: Screw connection with
tension sleeve, color: green, contact surface: Tin
Printed-circuit board connector - MCVW 1,5/ 5-ST-3,81 - 1827004
PCB connector, nominal current: 8 A, number of positions: 5, pitch: 3.81 mm, connection method: Screw connection with
tension sleeve, color: green, contact surface: Tin
Printed-circuit board connector - MCVR 1,5/ 5-ST-3,81 - 1827156
PCB connector, nominal current: 8 A, number of positions: 5, pitch: 3.81 mm, connection method: Screw connection with
tension sleeve, color: green, contact surface: Tin
09/10/2019 Page 9 / 10
https://www.phoenixcontact.com/us/products/1803303
Printed-circuit board connector - MC 1,5/ 5-G-3,81 - 1803303
Accessories
Printed-circuit board connector - FRONT-MC 1,5/ 5-ST-3,81 - 1850699
PCB connector, nominal current: 8 A, number of positions: 5, pitch: 3.81 mm, connection method: Front screw
connection, color: green, contact surface: Tin
Printed-circuit board connector - FK-MCP 1,5/ 5-ST-3,81 - 1851070
PCB connector, nominal current: 8 A, number of positions: 5, pitch: 3.81 mm, connection method: Push-in spring
connection, color: green, contact surface: Tin
Printed-circuit board connector - MCC 1/ 5-STZ-3,81 - 1852202
PCB connector, nominal current: 8 A, number of positions: 5, pitch: 3.81 mm, connection method: Crimp connection,
color: green, Corresponding female crimp contacts with current [A] and conductor cross section range [mm²] data: 5A/
MCC-MT 0,2-0,35 (1859988); 8A/MCC-MT 0,5-1,0 (1859991)
Printed-circuit board connector - QC 0,5/ 5-ST-3,81 - 1897429
PCB connector, nominal current: 6 A, number of positions: 5, pitch: 3.81 mm, connection method: Displacement
connection, color: green, contact surface: Tin
Phoenix Contact 2019 © - all rights reserved
