1803439

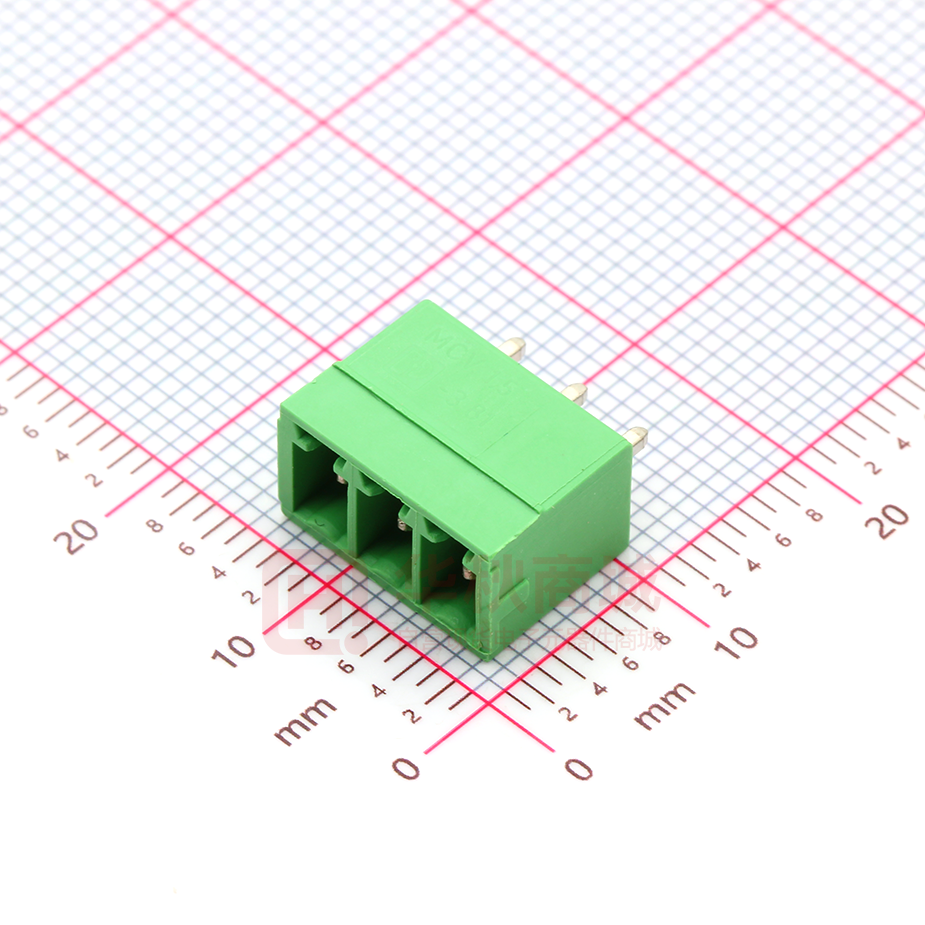

https://www.phoenixcontact.com/gb/products/1803439 Base strip - MCV 1,5/ 3-G-3,81 - 1803439 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 3, Pitch: 3.81 mm, Color: green, Contact surface: Tin, Mounting: Wave soldering The figure shows a 10-position version of the product Why buy this product ■ ■ ■ Plug-in direction parallel and vertical to the PCB Low-profile pin strips with compact pitches Individual position coding by inserting coding profiles Key Commercial Data Packing unit 250 pc GTIN Weight per Piece (excluding packing) 0.81 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length 7.25 mm Pitch 3.81 mm Dimension a 7.62 mm Width 12.82 mm Constructional height 9.2 mm Height 12.6 mm Length of the solder pin 3.4 mm Pin dimensions 0,8 x 0,8 mm Hole diameter 1.2 mm 09/03/2016   Page 1 / 4 https://www.phoenixcontact.com/gb/products/1803439 Base strip - MCV 1,5/ 3-G-3,81 - 1803439 Technical data General Range of articles MCV 1,5/..-G Insulating material group IIIa Rated surge voltage (III/3) 2.5 kV Rated surge voltage (III/2) 2.5 kV Rated surge voltage (II/2) 2.5 kV Rated voltage (III/3) 160 V Rated voltage (III/2) 160 V Rated voltage (II/2) 250 V Connection in acc. with standard EN-VDE Nominal current IN 8A Maximum load current 8A Insulating material PBT Flammability rating according to UL 94 V0 Color green Number of positions 3 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 eCl@ss 8.0 27440402 eCl@ss 9.0 27440402 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002637 ETIM 5.0 EC002637 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 09/03/2016   Page 2 / 4 https://www.phoenixcontact.com/gb/products/1803439 Base strip - MCV 1,5/ 3-G-3,81 - 1803439 Classifications UNSPSC UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals CSA / VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / CCA / EAC / cULus Recognized Ex Approvals Approvals submitted Approval details CSA    B D Nominal current IN 8A 8A Nominal voltage UN 300 V 300 V VDE Gutachten mit Fertigungsüberwachung      Nominal current IN 8A Nominal voltage UN 160 V IECEE CB Scheme      Nominal current IN 8A Nominal voltage UN 160 V 09/03/2016   Page 3 / 4 https://www.phoenixcontact.com/gb/products/1803439 Base strip - MCV 1,5/ 3-G-3,81 - 1803439 Approvals CCA      Nominal current IN 8A Nominal voltage UN 160 V EAC  cULus Recognized    B D Nominal current IN 8A 8A Nominal voltage UN 300 V 300 V Drawings Drilling diagram 2,6 Current strength [A] a Diagram 3 1,2 3,81 16 14 12 10 8 6 4 2 0 = 2-pos. = 5-pos. = 12-pos. = 20-pos. 0 10 20 30 40 50 60 70 80 90 100 110 Ambient temperature [°C] Type: FRONT-MC 1,5/...-ST-3,81 with MCV 1,5/...-G-3,81 Dimensional drawing 11,1 3,4 9,2 18,7 a+5,2 3 7,25 2,6 3,81 a Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 09/03/2016   Page 4 / 4
