1803455

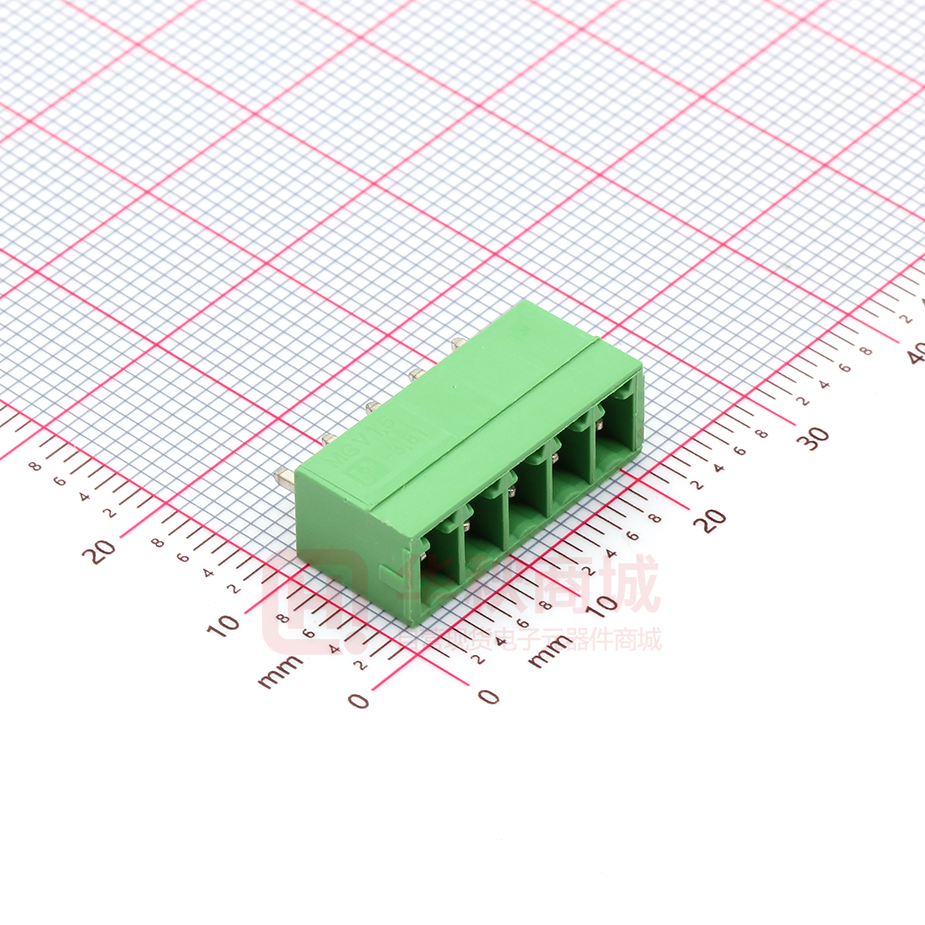

https://www.phoenixcontact.com/gb/products/1803455 Base strip - MCV 1,5/ 5-G-3,81 - 1803455 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 5, Pitch: 3.81 mm, Color: green, Contact surface: Tin, Mounting: Wave soldering The figure shows a 10-position version of the product Why buy this product  Well-known mounting principle allows worldwide use  Vertical connection enables multi-row arrangement on the PCB  Maximum flexibility when it comes to device design – one header for connectors with different connection technologies Key Commercial Data Packing unit 250 STK GTIN GTIN 4017918045760 Weight per Piece (excluding packing) 1.420 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length 7.25 mm Pitch 3.81 mm Dimension a 15.24 mm Width 20.44 mm Constructional height 9.2 mm Height 12.6 mm Length of the solder pin 3.4 mm Pin dimensions 0,8 x 0,8 mm Hole diameter 1.2 mm 12/23/2016   Page 1 / 9 https://www.phoenixcontact.com/gb/products/1803455 Base strip - MCV 1,5/ 5-G-3,81 - 1803455 Technical data General Range of articles MCV 1,5/..-G Insulating material group IIIa Rated surge voltage (III/3) 2.5 kV Rated surge voltage (III/2) 2.5 kV Rated surge voltage (II/2) 2.5 kV Rated voltage (III/3) 160 V Rated voltage (III/2) 160 V Rated voltage (II/2) 250 V Connection in acc. with standard EN-VDE Nominal current IN 8A Maximum load current 8A Insulating material PBT Flammability rating according to UL 94 V0 Color green Number of positions 5 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings a Diagram 2,6 3 1,2 3,81 Current strength [A] Drilling diagram 16 14 12 10 8 6 4 2 0 = 2-pos. = 5-pos. = 12-pos. = 20-pos. 0 10 20 30 40 50 60 70 80 90 100 110 Ambient temperature [°C] Type: FRONT-MC 1,5/...-ST-3,81 with MCV 1,5/...-G-3,81 12/23/2016   Page 2 / 9 https://www.phoenixcontact.com/gb/products/1803455 Base strip - MCV 1,5/ 5-G-3,81 - 1803455 16 14 12 10 8 6 4 2 0 Dimensional drawing 11,1 18,7 a+5,2 0 10 20 30 9,2 = 2-pos. = 5-pos. = 12-pos. = 20-pos. 40 50 60 70 80 90 100 110 3,4 Current strength [A] Diagram Ambient temperature [°C] 3 7,25 2,6 3,81 a Type: FRONT-MC 1,5/...-ST-3,81 with MCV 1,5/...-G-3,81 Diagram 12/23/2016   Page 3 / 9 https://www.phoenixcontact.com/gb/products/1803455 Base strip - MCV 1,5/ 5-G-3,81 - 1803455 Diagram Diagram 12/23/2016   Page 4 / 9 https://www.phoenixcontact.com/gb/products/1803455 Base strip - MCV 1,5/ 5-G-3,81 - 1803455 Diagram Diagram 12/23/2016   Page 5 / 9 https://www.phoenixcontact.com/gb/products/1803455 Base strip - MCV 1,5/ 5-G-3,81 - 1803455 Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 eCl@ss 8.0 27440402 eCl@ss 9.0 27440402 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002637 ETIM 5.0 EC002637 ETIM 6.0 EC002637 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals CSA / VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / CCA / cULus Recognized / EAC Ex Approvals Approval details CSA    http://www.csagroup.org/services/testingand-certification/certified-product-listing/   B D Nominal current IN 8A 8A Nominal voltage UN 300 V 300 V  13631 12/23/2016   Page 6 / 9 https://www.phoenixcontact.com/gb/products/1803455 Base strip - MCV 1,5/ 5-G-3,81 - 1803455 Approvals  VDE Gutachten mit Fertigungsüberwachung   http://www.vde.com/en/Institute/OnlineService/ VDE-approved-products/Pages/Online-Search.aspx     Nominal current IN 8A Nominal voltage UN 160 V  IECEE CB Scheme   http://www.iecee.org/     Nominal current IN 8A Nominal voltage UN 160 V CCA        Nominal current IN 8A Nominal voltage UN 160 V  cULus Recognized   http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm  E60425-20110128 B D Nominal current IN 8A 8A Nominal voltage UN 300 V 300 V   DE1-56063-B1B2  CCA/ DE1 34219   EAC   40011723    B.01742 Accessories Accessories Coding element Coding profile - CP-MSTB - 1734634 Coding profile, is inserted into the slot on the plug or inverted header, red insulating material     Labeled terminal marker 12/23/2016   Page 7 / 9 https://www.phoenixcontact.com/gb/products/1803455 Base strip - MCV 1,5/ 5-G-3,81 - 1803455 Accessories Marker card - SK 3,81/2,8:FORTL.ZAHLEN - 0804109 Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100, Mounting type: Adhesive, for terminal block width: 3.81 mm, Lettering field: 3.81 x 2.8 mm     Marker pen Marker pen - B-STIFT - 1051993 Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm     Additional products Printed-circuit board connector - FMC 1,5/ 5-ST-3,81 - 1745920 Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 5, Pitch: 3.81 mm, Connection method: Push-in spring connection, Color: green, Contact surface: Tin     Printed-circuit board connector - MC 1,5/ 5-ST-3,81 - 1803604 Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 5, Pitch: 3.81 mm, Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin     Printed-circuit board connector - MCVW 1,5/ 5-ST-3,81 - 1827004 Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 5, Pitch: 3.81 mm, Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin     12/23/2016   Page 8 / 9 https://www.phoenixcontact.com/gb/products/1803455 Base strip - MCV 1,5/ 5-G-3,81 - 1803455 Accessories Printed-circuit board connector - MCVR 1,5/ 5-ST-3,81 - 1827156 Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 5, Pitch: 3.81 mm, Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin     Printed-circuit board connector - FRONT-MC 1,5/ 5-ST-3,81 - 1850699 Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 5, Pitch: 3.81 mm, Connection method: Front screw connection, Color: green, Contact surface: Tin     Printed-circuit board connector - FK-MCP 1,5/ 5-ST-3,81 - 1851070 Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 5, Pitch: 3.81 mm, Connection method: Push-in spring connection, Color: green, Contact surface: Tin     Printed-circuit board connector - MCC 1/ 5-STZ-3,81 - 1852202 Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 5, Pitch: 3.81 mm, Connection method: Crimp connection, Color: green, Corresponding female crimp contacts with current [A] and conductor cross section range [mm²] data: 5A/MCC-MT 0,2-0,35 (1859988); 8A/MCC-MT 0,5-1,0 (1859991)     Printed-circuit board connector - QC 0,5/ 5-ST-3,81 - 1897429 Plug component, Nominal current: 6 A, Rated voltage (III/2): 200 V, Number of positions: 5, Pitch: 3.81 mm, Connection method: Displacement connection, Color: green, Contact surface: Tin     Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 12/23/2016   Page 9 / 9
