Base strip - MCV 1,5/12-G-3,81 - 1803523
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 12, Pitch: 3.81 mm, Color:
green, Contact surface: Tin, Mounting: Wave soldering

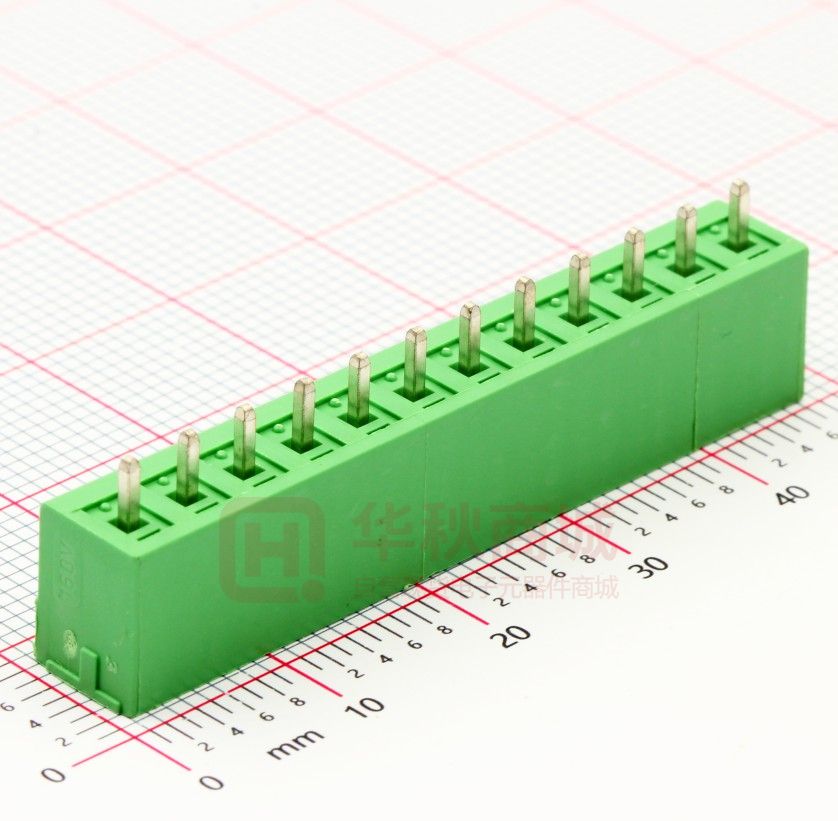

The figure shows a 10-position
version of the product
Why buy this product
Well-known mounting principle allows worldwide use
Vertical connection enables multi-row arrangement on the PCB
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Key Commercial Data
Packing unit
50 STK
GTIN
GTIN
4017918045838
Weight per Piece (excluding packing)
3.300 g
Custom tariff number
85366990
Country of origin
Germany
Technical data
Dimensions
Length
7.25 mm
Pitch
3.81 mm
Dimension a
41.91 mm
Width
47.11 mm
Constructional height
9.2 mm
Height
12.6 mm
Length of the solder pin
3.4 mm
Pin dimensions
0,8 x 0,8 mm
Hole diameter
1.2 mm
12/23/2016 Page 1 / 7
https://www.phoenixcontact.com/gb/products/1803523
Base strip - MCV 1,5/12-G-3,81 - 1803523
Technical data
General
Range of articles
MCV 1,5/..-G
Insulating material group
IIIa
Rated surge voltage (III/3)
2.5 kV
Rated surge voltage (III/2)
2.5 kV
Rated surge voltage (II/2)
2.5 kV
Rated voltage (III/3)
160 V
Rated voltage (III/2)
160 V
Rated voltage (II/2)
250 V
Connection in acc. with standard
EN-VDE
Nominal current IN
8A
Maximum load current
8A
Insulating material
PBT
Flammability rating according to UL 94
V0
Color
green
Number of positions
12
Standards and Regulations
Connection in acc. with standard
EN-VDE
CSA
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
a
Diagram
2,6
3
1,2
3,81
Current strength [A]
Drilling diagram
16
14
12
10
8
6
4
2
0
= 2-pos.
= 5-pos.
= 12-pos.
= 20-pos.
0
10
20
30
40
50
60
70
80
90 100 110
Ambient temperature [°C]
Type: FRONT-MC 1,5/...-ST-3,81 with MCV 1,5/...-G-3,81
12/23/2016 Page 2 / 7
https://www.phoenixcontact.com/gb/products/1803523
Base strip - MCV 1,5/12-G-3,81 - 1803523
Dimensional drawing
11,1
3,4
9,2
18,7
a+5,2
3
2,6
3,81
7,25
a
Classifications
eCl@ss
eCl@ss 4.0
272607xx
eCl@ss 4.1
27260701
eCl@ss 5.0
27260701
eCl@ss 5.1
27260701
eCl@ss 6.0
27260704
eCl@ss 7.0
27440402
eCl@ss 8.0
27440402
eCl@ss 9.0
27440402
ETIM
ETIM 3.0
EC001121
ETIM 4.0
EC002637
ETIM 5.0
EC002637
ETIM 6.0
EC002637
UNSPSC
UNSPSC 6.01
30211810
UNSPSC 7.0901
39121409
UNSPSC 11
39121409
UNSPSC 12.01
39121409
UNSPSC 13.2
39121409
Approvals
Approvals
Approvals
CSA / VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / CCA / cULus Recognized / EAC
Ex Approvals
12/23/2016 Page 3 / 7
https://www.phoenixcontact.com/gb/products/1803523
Base strip - MCV 1,5/12-G-3,81 - 1803523
Approvals
Approval details
CSA
http://www.csagroup.org/services/testingand-certification/certified-product-listing/
B
D
Nominal current IN
8A
8A
Nominal voltage UN
300 V
300 V
VDE Gutachten mit
Fertigungsüberwachung
http://www.vde.com/en/Institute/OnlineService/
VDE-approved-products/Pages/Online-Search.aspx
Nominal current IN
8A
Nominal voltage UN
160 V
IECEE CB Scheme
http://www.iecee.org/
Nominal current IN
8A
Nominal voltage UN
160 V
CCA
Nominal current IN
8A
Nominal voltage UN
160 V
cULus Recognized
DE1-56063-B1B2
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-20110128
B
D
Nominal current IN
8A
8A
Nominal voltage UN
300 V
300 V
40011723
CCA/ DE1 34219
EAC
13631
B.01742
Accessories
Accessories
12/23/2016 Page 4 / 7
https://www.phoenixcontact.com/gb/products/1803523
Base strip - MCV 1,5/12-G-3,81 - 1803523
Accessories
Coding element
Coding profile - CP-MSTB - 1734634
Coding profile, is inserted into the slot on the plug or inverted header, red insulating material
Labeled terminal marker
Marker card - SK 3,81/2,8:FORTL.ZAHLEN - 0804109
Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100, Mounting
type: Adhesive, for terminal block width: 3.81 mm, Lettering field: 3.81 x 2.8 mm
Marker pen
Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
Additional products
Printed-circuit board connector - FMC 1,5/12-ST-3,81 - 1748079
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 12, Pitch: 3.81 mm,
Connection method: Push-in spring connection, Color: green, Contact surface: Tin
Printed-circuit board connector - MC 1,5/12-ST-3,81 - 1803675
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 12, Pitch: 3.81 mm,
Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin
12/23/2016 Page 5 / 7
https://www.phoenixcontact.com/gb/products/1803523
Base strip - MCV 1,5/12-G-3,81 - 1803523
Accessories
Printed-circuit board connector - MCVW 1,5/12-ST-3,81 - 1827075
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 12, Pitch: 3.81 mm,
Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin
Printed-circuit board connector - MCVR 1,5/12-ST-3,81 - 1827224
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 12, Pitch: 3.81 mm,
Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin
Printed-circuit board connector - FRONT-MC 1,5/12-ST-3,81 - 1850767
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 12, Pitch: 3.81 mm,
Connection method: Front screw connection, Color: green, Contact surface: Tin
Printed-circuit board connector - FK-MCP 1,5/12-ST-3,81 - 1851148
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 12, Pitch: 3.81 mm,
Connection method: Push-in spring connection, Color: green, Contact surface: Tin
Printed-circuit board connector - MCC 1/12-STZ-3,81 - 1852273
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 12, Pitch: 3.81 mm,
Connection method: Crimp connection, Color: green, Corresponding female crimp contacts with current [A] and
conductor cross section range [mm²] data: 5A/MCC-MT 0,2-0,35 (1859988); 8A/MCC-MT 0,5-1,0 (1859991)
12/23/2016 Page 6 / 7
https://www.phoenixcontact.com/gb/products/1803523
Base strip - MCV 1,5/12-G-3,81 - 1803523
Accessories
Printed-circuit board connector - QC 0,5/12-ST-3,81 - 1897490
Plug component, Nominal current: 6 A, Rated voltage (III/2): 200 V, Number of positions: 12, Pitch: 3.81 mm,
Connection method: Displacement connection, Color: green, Contact surface: Tin
Phoenix Contact 2016 © - all rights reserved
