Printed-circuit board connector - MC 1,5/ 8-ST-3,81 - 1803633
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm,
Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin

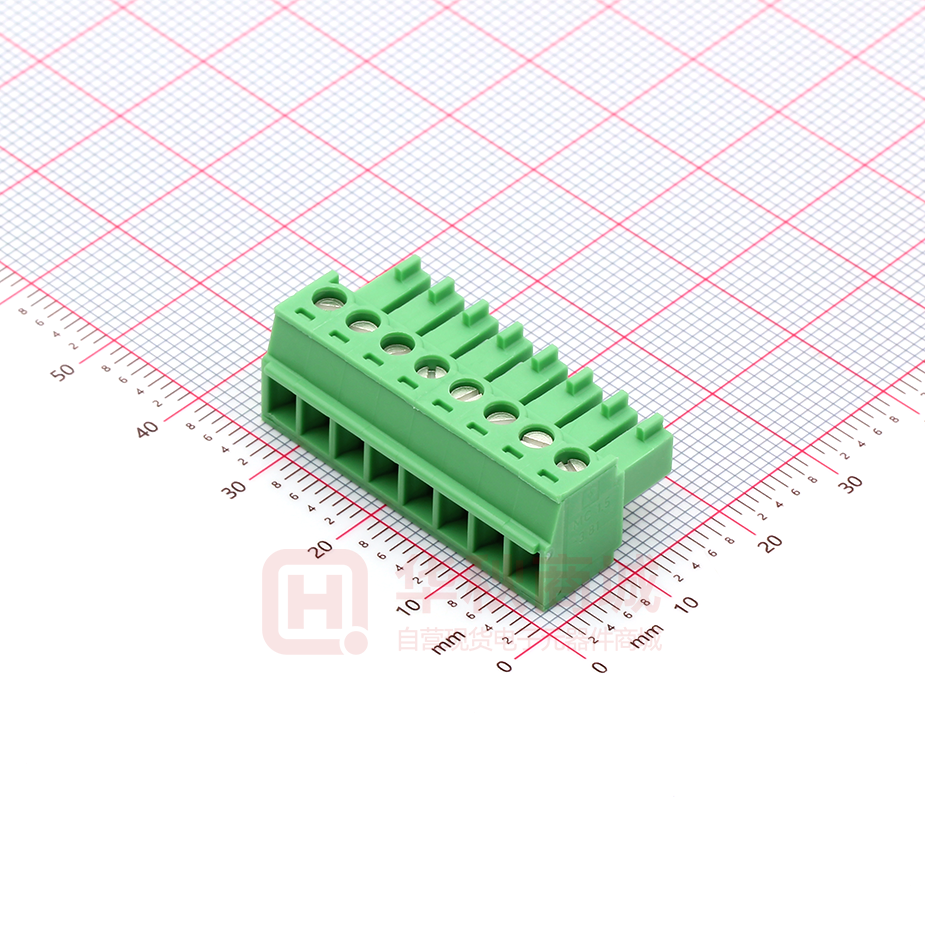

The figure shows a 10-position
version of the product
Why buy this product
Well-known connection principle allows worldwide use
Low temperature rise, thanks to maximum contact force
Allows connection of two conductors
Key Commercial Data
Packing unit
50 STK
GTIN
GTIN
4017918045944
Weight per Piece (excluding packing)
6.090 g
Custom tariff number
85366990
Country of origin
Germany
Technical data
Dimensions
Length
16.1 mm
Height
11.1 mm
Width
31.27 mm
Pitch
3.81 mm
Dimension a
26.67 mm
General
Range of articles
MC 1,5/..-ST
Type of contact
Female connector
12/23/2016 Page 1 / 11
https://www.phoenixcontact.com/gb/products/1803633
Printed-circuit board connector - MC 1,5/ 8-ST-3,81 - 1803633
Technical data
General
Number of positions
8
Connection method
Screw connection with tension sleeve
Insulating material group
I
Rated surge voltage (III/3)
2.5 kV
Rated surge voltage (III/2)
2.5 kV
Rated surge voltage (II/2)
2.5 kV
Rated voltage (III/3)
160 V
Rated voltage (III/2)
160 V
Rated voltage (II/2)
320 V
Connection in acc. with standard
EN-VDE
Nominal current IN
8A
Nominal cross section
1.5 mm²
Maximum load current
8 A (with 1.5 mm² conductor cross section)
Insulating material
PA
Flammability rating according to UL 94
V0
Internal cylindrical gage
A1
Stripping length
7 mm
Screw thread
M2
Tightening torque, min
0.22 Nm
Tightening torque max
0.25 Nm
Connection data
Conductor cross section solid min.
0.14 mm²
Conductor cross section solid max.
1.5 mm²
Conductor cross section flexible min.
0.14 mm²
Conductor cross section flexible max.
1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.
0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.
0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.
0.5 mm²
Conductor cross section AWG min.
28
Conductor cross section AWG max.
16
2 conductors with same cross section, solid min.
0.08 mm²
2 conductors with same cross section, solid max.
0.5 mm²
2 conductors with same cross section, stranded min.
0.08 mm²
2 conductors with same cross section, stranded max.
0.75 mm²
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, min.
0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic
sleeve, max.
0.34 mm²
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, min.
0.5 mm²
12/23/2016 Page 2 / 11
https://www.phoenixcontact.com/gb/products/1803633
Printed-circuit board connector - MC 1,5/ 8-ST-3,81 - 1803633
Technical data
Connection data
2 conductors with same cross section, stranded, TWIN ferrules with
plastic sleeve, max.
0.5 mm²
Minimum AWG according to UL/CUL
30
Maximum AWG according to UL/CUL
14
Standards and Regulations
Connection in acc. with standard
EN-VDE
CSA
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
16
14
12
10
8
6
4
2
0
Diagram
!
"
#
!=2-pos.
"=5-pos.
#=12-pos.
0
10
20
30
40
50
60
70
80
Current strength [A]
Current strength [A]
Diagram
16
14
12
10
8
6
4
2
0
= 2-pos.
= 5-pos.
! = 12-pos.
" = 20-pos.
0
90 100 110
20
!
"
40
60
Type: MC 1,5/...-ST-3,81 with MC 1,5/...-G-3,81 THT
!= 2-pos.
" = 5-pos.
# = 12-pos.
10
20
30
#
40
50
60
70
80
90 100 110
Ambient temperature [°C]
Type: MC 1,5/...-ST-3,81 with MCV 1,5/...-G-3,81 P26 THR
Current strength [A]
Current strength [A]
Diagram
!
"
0
100
Type: MC 1,5/...-ST-3,81 with MCV 1,5/...-G-3,81
Diagram
16
14
12
10
8
6
4
2
0
80
Ambient temperature [°C]
Ambient temperature [°C]
16
14
12
10
8
6
4
2
0
= 2-pos.
= 5-pos.
= 16-pos.
0
10
20
30
40
50
60
70
80
90 100 110
Ambient temperature [°C]
Type: MC 1,5/...-ST-3,81 with MCD 1,5/...-G1-3,81
12/23/2016 Page 3 / 11
https://www.phoenixcontact.com/gb/products/1803633
Printed-circuit board connector - MC 1,5/ 8-ST-3,81 - 1803633
Dimensional drawing
16
14
a+4,6
16,1
12
10
8
6
4
2
0
11,1
Current strength [A]
Diagram
= 2-pos.
= 5-pos.
= 12-pos.
= 20-pos.
0
20
40
60
80
6,6
100
2,3
3,81
a
Ambient temperature [°C]
Type: MC 1,5/...-ST-3,81 with MC 1,5/...-G-3,81
Classifications
eCl@ss
eCl@ss 4.0
272607xx
eCl@ss 4.1
27260701
eCl@ss 5.0
27260701
eCl@ss 5.1
27260701
eCl@ss 6.0
27260704
eCl@ss 7.0
27440402
eCl@ss 8.0
27440309
eCl@ss 9.0
27440309
ETIM
ETIM 3.0
EC001121
ETIM 4.0
EC002638
ETIM 5.0
EC002638
ETIM 6.0
EC002638
UNSPSC
UNSPSC 6.01
30211810
UNSPSC 7.0901
39121409
UNSPSC 11
39121409
UNSPSC 12.01
39121409
UNSPSC 13.2
39121409
Approvals
Approvals
Approvals
CSA / VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / CCA / cULus Recognized / EAC
Ex Approvals
12/23/2016 Page 4 / 11
https://www.phoenixcontact.com/gb/products/1803633
Printed-circuit board connector - MC 1,5/ 8-ST-3,81 - 1803633
Approvals
Approval details
CSA
http://www.csagroup.org/services/testingand-certification/certified-product-listing/
B
D
mm²/AWG/kcmil
28-16
28-16
Nominal current IN
8A
8A
Nominal voltage UN
300 V
300 V
VDE Gutachten mit
Fertigungsüberwachung
http://www.vde.com/en/Institute/OnlineService/
VDE-approved-products/Pages/Online-Search.aspx
mm²/AWG/kcmil
0.2-1.5
Nominal current IN
8A
Nominal voltage UN
160 V
IECEE CB Scheme
http://www.iecee.org/
mm²/AWG/kcmil
0.2-1.5
Nominal current IN
8A
Nominal voltage UN
160 V
CCA
mm²/AWG/kcmil
0.2-1.5
Nominal current IN
8A
Nominal voltage UN
160 V
cULus Recognized
13631
40011723
DE1-56063-B1B2
CCA/ DE1 34219
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm E60425-20110128
B
D
mm²/AWG/kcmil
30-14
30-14
Nominal current IN
8A
8A
Nominal voltage UN
300 V
300 V
12/23/2016 Page 5 / 11
https://www.phoenixcontact.com/gb/products/1803633
Printed-circuit board connector - MC 1,5/ 8-ST-3,81 - 1803633
Approvals
EAC
B.01742
Accessories
Accessories
Bridge
Insertion bridge - EBPL 2-3,81 - 1733495
Insertion bridge for plugs featuring a screw connection with a 3.81 mm pitch
Insertion bridge - EBPL 3-3,81 - 1733505
Insertion bridge for plugs featuring a screw connection with a 3.81 mm pitch
Insertion bridge - EBPL 4-3,81 - 1733518
Insertion bridge for plugs featuring a screw connection with a 3.81 mm pitch
Cable housing
Cable housing - KGG-MC 1,5/ 8 - 1834408
Cable housing, Pitch: 3.81 mm, Number of positions: 8, Dimension a: 32.87 mm, Color: green
Labeled terminal marker
12/23/2016 Page 6 / 11
https://www.phoenixcontact.com/gb/products/1803633
Printed-circuit board connector - MC 1,5/ 8-ST-3,81 - 1803633
Accessories
Marker card - SK 3,81/2,8:FORTL.ZAHLEN - 0804109
Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100, Mounting
type: Adhesive, for terminal block width: 3.81 mm, Lettering field: 3.81 x 2.8 mm
Screwdriver tools
Screwdriver - SZS 0,4X2,5 VDE - 1205037
Screwdriver, slot-headed, VDE insulated, size: 0.4 x 2.5 x 80 mm, 2-component grip, with non-slip grip
Additional products
Base strip - MCV 1,5/ 8-G-3,81 P14 THR - 1707065
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: black,
Contact surface: Tin, Mounting: THR soldering, User information and design recommendations for through hole
reflow technology can be found under “Downloads”
Base strip - MCV 1,5/ 8-G-3,81 P26 THR - 1707489
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: black,
Contact surface: Tin, Mounting: THR soldering, User information and design recommendations for through hole
reflow technology can be found under “Downloads”
Base strip - MCV 1,5/ 8-G-3,81 P26 THRR56 - 1712940
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: black,
Contact surface: Tin, Mounting: THR soldering, User information and design recommendations for through hole
reflow technology can be found under “Downloads”
12/23/2016 Page 7 / 11
https://www.phoenixcontact.com/gb/products/1803633
Printed-circuit board connector - MC 1,5/ 8-ST-3,81 - 1803633
Accessories
Printed-circuit board connector - MC 1,5/ 8-G-3,81 P20 THRR56 - 1782637
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: black,
Contact surface: Tin, Mounting: THR soldering
Base strip - MC 1,5/ 8-G-3,81 - 1803332
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: green,
Contact surface: Tin, Mounting: Wave soldering
Base strip - MCV 1,5/ 8-G-3,81 - 1803484
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: green,
Contact surface: Tin, Mounting: Wave soldering
Base strip - SMC 1,5/ 8-G-3,81 - 1827334
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: green,
Contact surface: Tin, Mounting: Wave soldering
Base strip - MCD 1,5/ 8-G-3,81 - 1830017
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: green,
Contact surface: Tin, Mounting: Wave soldering, In combination with MCV plug components, both an MCVW and an
MCVR plug must be used.
12/23/2016 Page 8 / 11
https://www.phoenixcontact.com/gb/products/1803633
Printed-circuit board connector - MC 1,5/ 8-ST-3,81 - 1803633
Accessories
Base strip - MCDV 1,5/ 8-G-3,81 - 1830460
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: green,
Contact surface: Tin, Mounting: Wave soldering, In combination with MCV plug components, both an MCVW and an
MCVR plug must be used.
Base strip - MCVDU 1,5/ 8-G-3,81 - 1837492
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: green,
Contact surface: Tin, Mounting: Wave soldering
Base strip - MCD 1,5/ 8-G1-3,81 - 1843130
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: green,
Contact surface: Tin, Mounting: Wave soldering, In combination with MCV plug components, both an MCVW and an
MCVR plug must be used.
Base strip - MCDV 1,5/ 8-G1-3,81 - 1847796
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: green,
Contact surface: Tin, Mounting: Wave soldering, In combination with MCV plug components, both an MCVW and an
MCVR plug must be used.
Base strip - EMCV 1,5/ 8-G-3,81 - 1860702
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: green,
Contact surface: Tin, Mounting: Press-in technology
12/23/2016 Page 9 / 11
https://www.phoenixcontact.com/gb/products/1803633
Printed-circuit board connector - MC 1,5/ 8-ST-3,81 - 1803633
Accessories
Base strip - MCO 1,5/ 8-GR-3,81 - 1861701
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: green,
Contact surface: Tin, Mounting: Wave soldering
Base strip - MCO 1,5/ 8-GL-3,81 - 1861785
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: green,
Contact surface: Tin, Mounting: Wave soldering
Base strip - EMC 1,5/ 8-G-3,81 - 1897869
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: green,
Contact surface: Tin, Mounting: Press-in technology
Base strip - MC 1,5/ 8-G-3,81 THT - 1908826
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: black,
Contact surface: Tin, Mounting: THR soldering, User information and design recommendations for through hole
reflow technology can be found under “Downloads”
Base strip - MC 1,5/ 8-G-3,81 THT-R56 - 1943810
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: black,
Contact surface: Tin, Mounting: THR soldering, User information and design recommendations for through hole
reflow technology can be found under “Downloads”
12/23/2016 Page 10 / 11
https://www.phoenixcontact.com/gb/products/1803633
Printed-circuit board connector - MC 1,5/ 8-ST-3,81 - 1803633
Accessories
Base strip - MCD 1,5/ 8-G1-3,81 HT BK - 1948080
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.81 mm, Color: black,
Contact surface: Tin, Mounting: THR soldering, Standard component made of highly temperature resistant plastic;
suitable for reflow process. User information and design recommendations on Through Hole Reflow Technology can
be found at: "Downloads".
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
12/23/2016 Page 11 / 11
