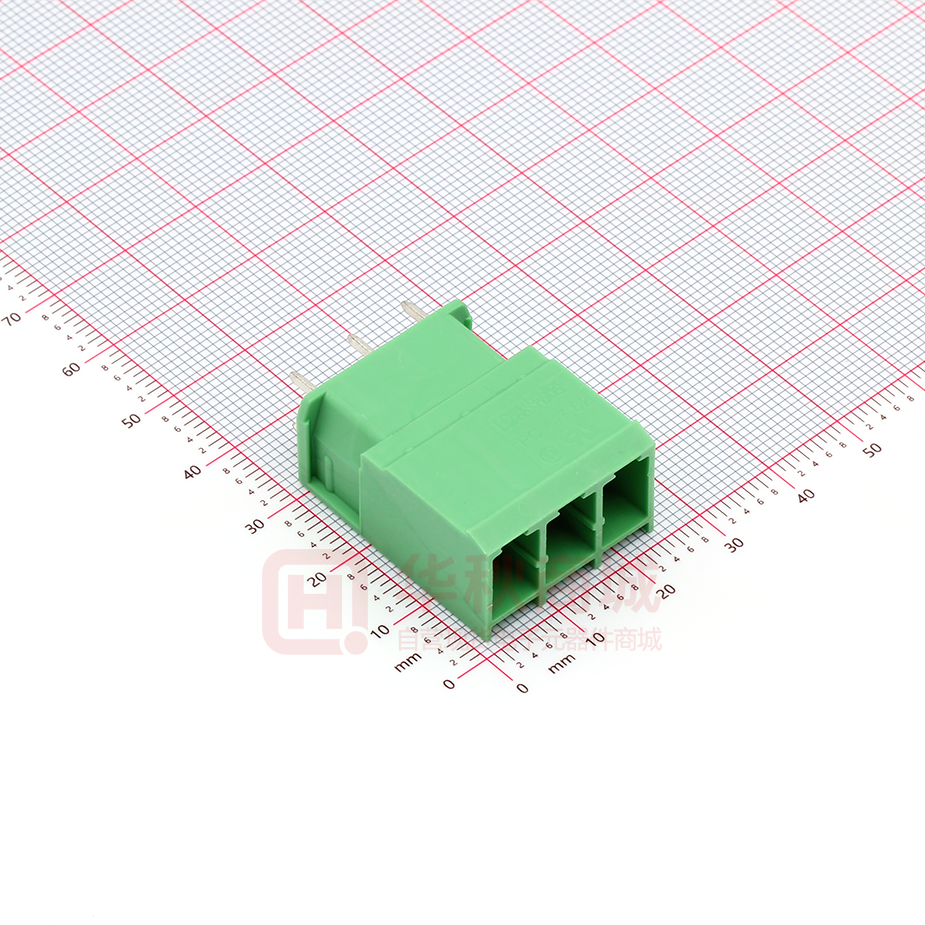

https://www.phoenixcontact.com/us/products/1804690 Base strip - PCV 4/ 3-G-7,62 - 1804690 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Header, Nominal current: 20 A, Rated voltage (III/2): 630 V, Number of positions: 3, Pitch: 7.62 mm, Color: green, Contact surface: Tin, Mounting: Wave soldering, Mounting flange: Accessory Order No. 1827570 The figure shows a 5-pos. version of the product Product Features ■ ■ ■ ■ PCB-SHIELD shroud for a professional EMC shield connection Vibration-resistant connection by means of separate BF-PC 4 mounting flanges (also for screw connection in the device) CP-PC RD coding profiles as protection against mismatching PC 4 headers for use in combination with all PC 4 plugs Key Commercial Data Packing unit 1 pc GTIN Weight per Piece (excluding packing) 6.4 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length 14.3 mm Pitch 7.62 mm Dimension a 15.24 mm Constructional height 29 mm Length of the solder pin 5 mm Pin dimensions 1 x 0,8 mm 02/29/2016   Page 1 / 4 https://www.phoenixcontact.com/us/products/1804690 Base strip - PCV 4/ 3-G-7,62 - 1804690 Technical data Dimensions Hole diameter 1.3 mm General Range of articles PCV 4/..-G Insulating material group I Rated surge voltage (III/3) 6 kV Rated surge voltage (III/2) 6 kV Rated surge voltage (II/2) 6 kV Rated voltage (III/3) 400 V Rated voltage (III/2) 630 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 20 A Maximum load current 20 A Insulating material PA Flammability rating according to UL 94 V0 Color green Number of positions 3 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 eCl@ss 8.0 27440402 eCl@ss 9.0 27440402 ETIM ETIM 3.0 EC001121 02/29/2016   Page 2 / 4 https://www.phoenixcontact.com/us/products/1804690 Base strip - PCV 4/ 3-G-7,62 - 1804690 Classifications ETIM ETIM 4.0 EC002637 ETIM 5.0 EC002637 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals CSA / UL Recognized / cUL Recognized / LR / GL / BV / DNV / RS / EAC / cULus Recognized Ex Approvals Approvals submitted Approval details CSA    B C Nominal current IN 20 A 20 A Nominal voltage UN 300 V 300 V   B C Nominal current IN 20 A 20 A Nominal voltage UN 300 V 300 V UL Recognized  02/29/2016   Page 3 / 4 https://www.phoenixcontact.com/us/products/1804690 Base strip - PCV 4/ 3-G-7,62 - 1804690 Approvals cUL Recognized    B C Nominal current IN 20 A 20 A Nominal voltage UN 300 V 300 V LR  GL  BV  DNV  RS  EAC  cULus Recognized  Drawings Drilling diagram Dimensional drawing a 7,62 18 7,62 45 5 2,6 29 7,62 3,81 a+7,6 3,2 1,3 7,62 3,8 14,3 7,62 a Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 02/29/2016   Page 4 / 4
