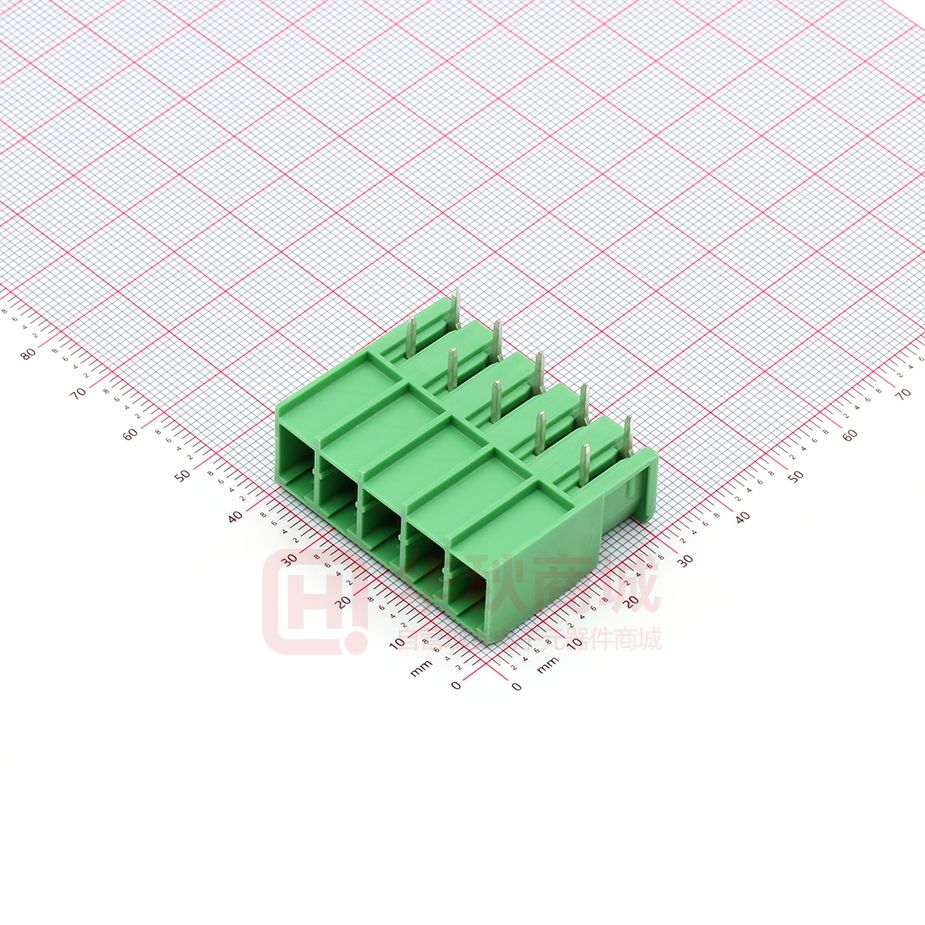

https://www.phoenixcontact.com/us/products/1804823 Base strip - PC 4/ 5-G-7,62 - 1804823 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Header, Nominal current: 20 A, Rated voltage (III/2): 630 V, Number of positions: 5, Pitch: 7.62 mm, Color: green, Contact surface: Tin, Mounting: Wave soldering, Mounting flange: Accessory Order No. 1827570 The figure shows a 5-pos. version of the product Why buy this product  Well-known mounting principle allows worldwide use Key Commercial Data Packing unit 1 STK GTIN GTIN 4017918046262 Weight per Piece (excluding packing) 10.940 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length 29 mm Pitch 7.62 mm Dimension a 30.48 mm Width 38.08 mm Constructional height 14.3 mm Height 20 mm Length of the solder pin 5 mm 10/31/2016   Page 1 / 5 https://www.phoenixcontact.com/us/products/1804823 Base strip - PC 4/ 5-G-7,62 - 1804823 Technical data Dimensions Pin dimensions 1 x 0,8 mm Hole diameter 1.3 mm General Range of articles PC 4/..-G Insulating material group I Rated surge voltage (III/3) 6 kV Rated surge voltage (III/2) 6 kV Rated surge voltage (II/2) 6 kV Rated voltage (III/3) 400 V Rated voltage (III/2) 630 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 20 A Maximum load current 20 A Insulating material PA Flammability rating according to UL 94 V0 Color green Number of positions 5 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings 10/31/2016   Page 2 / 5 https://www.phoenixcontact.com/us/products/1804823 Base strip - PC 4/ 5-G-7,62 - 1804823 Dimensional drawing Drilling diagram a 7,62 7,62 14,3 18,1 5 7,62 2 3,8 7,62 a 7,62 3,52 a+7,6 29 2 45 3,2 1,3 Diagram Diagram The illustration shows the derating curve for plugs PC 5/...ST-7,62 in combination with header PC 4/...G-7,62. Approvals Approvals Approvals CSA / UL Recognized / cUL Recognized / LR / GL / BV / DNV / RS / EAC / cULus Recognized Ex Approvals Approval details 10/31/2016   Page 3 / 5 https://www.phoenixcontact.com/us/products/1804823 Base strip - PC 4/ 5-G-7,62 - 1804823 Approvals CSA   http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631   B C Nominal current IN 20 A 20 A Nominal voltage UN 300 V 300 V UL Recognized   http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425   B C Nominal current IN 20 A 20 A Nominal voltage UN 300 V 300 V cUL Recognized   http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425   B C Nominal current IN 20 A 20 A Nominal voltage UN 300 V 300 V LR  http://www.lr.org/en 96/20012 GL  http://www.gl-group.com/newbuilding/approvals/index.html 9888196 HH BV  http://www.veristar.com/portal/veristarinfo/generalinfo/approved/approvedProducts/equipmentAndMaterials 35433/AO BV DNV  http://exchange.dnv.com/tari/ E-9231 RS  http://www.rs-head.spb.ru/en/index.php 10.04059.250 EAC   B.01742 cULus Recognized   http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm 10/31/2016   Page 4 / 5 https://www.phoenixcontact.com/us/products/1804823 Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 10/31/2016   Page 5 / 5
