Base strip - PC 4/ 7-G-7,62 - 1804849
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)

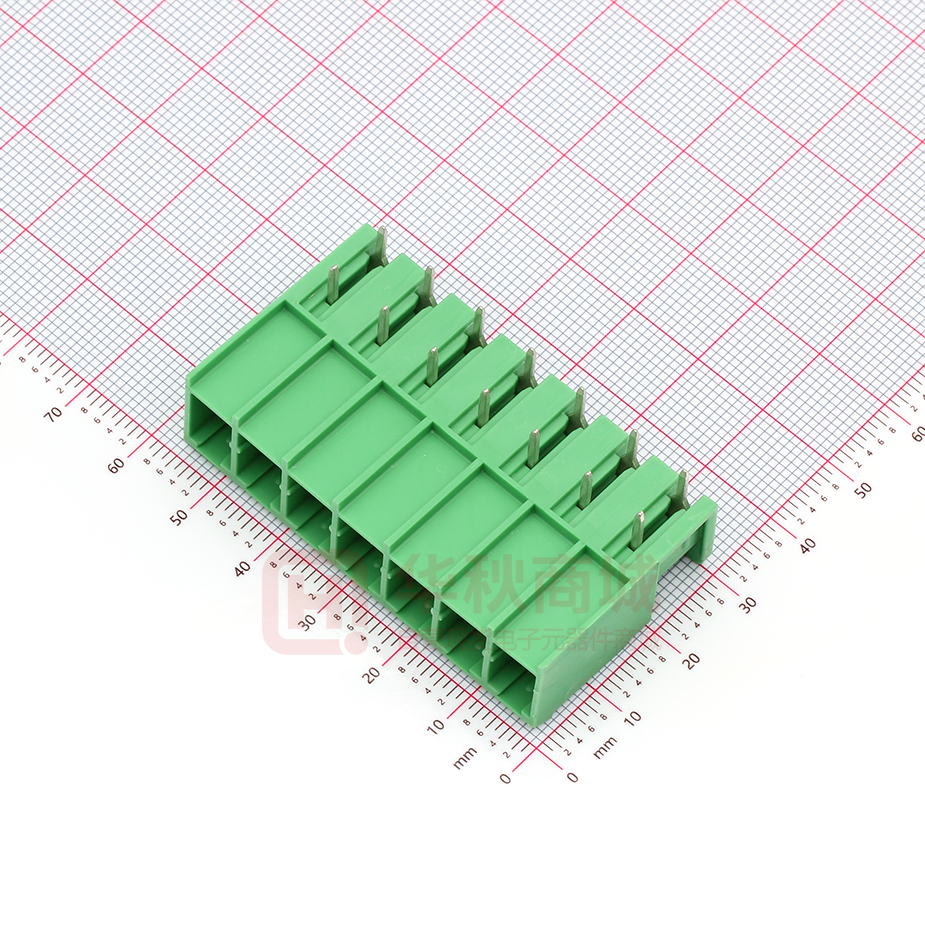

Header, Nominal current: 20 A, Rated voltage (III/2): 630 V, Number of positions: 7, Pitch: 7.62 mm, Color: green,
Contact surface: Tin, Assembly: Soldering, Mounting flange: Accessory Order No. 1827570
The figure shows a 5-pos. version of
the product
Product Features
PCB-SHIELD shroud for a professional EMC shield connection
Vibration-resistant connection by means of separate BF-PC 4 mounting flanges (also for screw connection in the device)
PC 4 headers for use in combination with all PC 4 plugs
CP-PC RD coding profiles as protection against mismatching
Key commercial data
Packing unit
1 pc
GTIN
Weight per Piece (excluding packing)
14.91 GRM
Custom tariff number
85366990
Country of origin
Germany
Technical data
Dimensions
Length
29 mm
Pitch
7.62 mm
Dimension a
45.72 mm
Pin dimensions
1 x 0,8 mm
Hole diameter
1.3 mm
General
04/06/2014 Page 1 / 7
https://www.phoenixcontact.com/us/products/1804849
Base strip - PC 4/ 7-G-7,62 - 1804849
Technical data
General
Range of articles
PC 4/..-G
Insulating material group
I
Rated surge voltage (III/3)
6 kV
Rated surge voltage (III/2)
6 kV
Rated surge voltage (II/2)
6 kV
Rated voltage (III/3)
400 V
Rated voltage (III/2)
630 V
Rated voltage (II/2)
630 V
Connection in acc. with standard
EN-VDE
Nominal current IN
20 A
Maximum load current
20 A
Insulating material
PA
Inflammability class according to UL 94
V0
Color
green
Number of positions
7
Classifications
eCl@ss
eCl@ss 4.0
272607xx
eCl@ss 4.1
27260701
eCl@ss 5.0
27260701
eCl@ss 5.1
27260701
eCl@ss 6.0
27260704
eCl@ss 7.0
27440402
eCl@ss 8.0
27440402
ETIM
ETIM 3.0
EC001121
ETIM 4.0
EC002637
ETIM 5.0
EC002637
UNSPSC
UNSPSC 6.01
30211810
UNSPSC 7.0901
39121409
UNSPSC 11
39121409
UNSPSC 12.01
39121409
UNSPSC 13.2
39121409
04/06/2014 Page 2 / 7
https://www.phoenixcontact.com/us/products/1804849
Base strip - PC 4/ 7-G-7,62 - 1804849
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / GOST / LR / GL / BV / DNV / RS / GOST / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
CSA
B
C
Nominal current IN
20 A
20 A
Nominal voltage UN
300 V
300 V
B
C
Nominal current IN
20 A
20 A
Nominal voltage UN
300 V
300 V
B
C
Nominal current IN
20 A
20 A
Nominal voltage UN
300 V
300 V
UL Recognized
cUL Recognized
GOST
04/06/2014 Page 3 / 7
https://www.phoenixcontact.com/us/products/1804849
Base strip - PC 4/ 7-G-7,62 - 1804849
Approvals
LR
Nominal current IN
20 A
Nominal voltage UN
400 V
GL
Nominal current IN
20 A
Nominal voltage UN
400 V
BV
DNV
RS
GOST
cULus Recognized
Accessories
Accessories
Coding element
Coding profile - CP-PC RD - 1701967
Coding profile, for plugging into the coding ribs of the plug at a later date, insulating material, color: Red
Flange
04/06/2014 Page 4 / 7
https://www.phoenixcontact.com/us/products/1804849
Base strip - PC 4/ 7-G-7,62 - 1804849
Accessories
Accessories - BF-PC 4 - 1827570
Mounting flange, is snapped onto the left and right of the headers, for screw connection with PC 4/...-STF-7.62
Labeled terminal marker
Marker cards - SK 7,62/3,8:FORTL.ZAHLEN - 0804549
Marker cards, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 100, Mounting type:
Adhesive, For terminal block width: 7.62 mm, Lettering field: 7.62 x 3.8 mm
Marker pen
Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
Terminal marking
Marker cards - SK U/3,8 WH:UNBEDRUCKT - 0803906
Marker cards, Sheet, white, Unlabeled, Can be labeled with: Plotter, Office printing systems, Mounting type: Adhesive,
Lettering field: 186 x 3.8 mm
Additional products
04/06/2014 Page 5 / 7
https://www.phoenixcontact.com/us/products/1804849
Base strip - PC 4/ 7-G-7,62 - 1804849
Accessories
Printed-circuit board connector - PC 4/ 7-STF-7,62 - 1828294
Plug component, Nominal current: 20 A, Rated voltage (III/2): 630 V, Number of positions: 7, Pitch: 7.62 mm, Connection
method: Screw connection, Color: green, Contact surface: Tin
Printed-circuit board connector - PCC 4/ 7-ST-7,62 - 1840146
Plug component, Nominal current: 20 A, Rated voltage (III/2): 1000 V, Number of positions: 7, Pitch: 7.62 mm,
Connection method: Crimp connection, Color: green, Corresponding female crimp contacts with current [A] and
conductor cross section range [mm²] data: 13,5A/STG-MTN 0,5-1,0 (3190438); 13,5A/STG-MTN 0,5-1,0 BA (3190629);
20A/STG-MTN 1,5-2,5 (3190506); 20A/STG-MTN 1,5-2,5 BA (3190632). BA = Taped contacts
Printed-circuit board connector - PC 4/ 7-ST-7,62 - 1804959
Plug component, Nominal current: 20 A, Rated voltage (III/2): 630 V, Number of positions: 7, Pitch: 7.62 mm, Connection
method: Screw connection, Color: green, Contact surface: Tin
Printed-circuit board connector - PC 4 HV/ 7-STF-7,62 - 1880122
Plug component, Nominal current: 20 A, Rated voltage (III/2): 1000 V, Number of positions: 7, Pitch: 7.62 mm,
Connection method: Screw connection, Color: green, Contact surface: Tin
Drawings
04/06/2014 Page 6 / 7
https://www.phoenixcontact.com/us/products/1804849
Base strip - PC 4/ 7-G-7,62 - 1804849
Drilling diagram
Dimensioned drawing
a
7,62
7,62
45
18
2
5
3,52
7,62
a+7,6
29
3,2
7,62
1,3
2
3,8
7,62
a
Diagram
The illustration shows the derating curve for plugs PC 5/...-ST-7,62 in combination with header PC 4/...-G-7,62.
