PC 4/ 2-ST-7,62
Order No.: 1804904
The figure shows a 5-pos. version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1804904

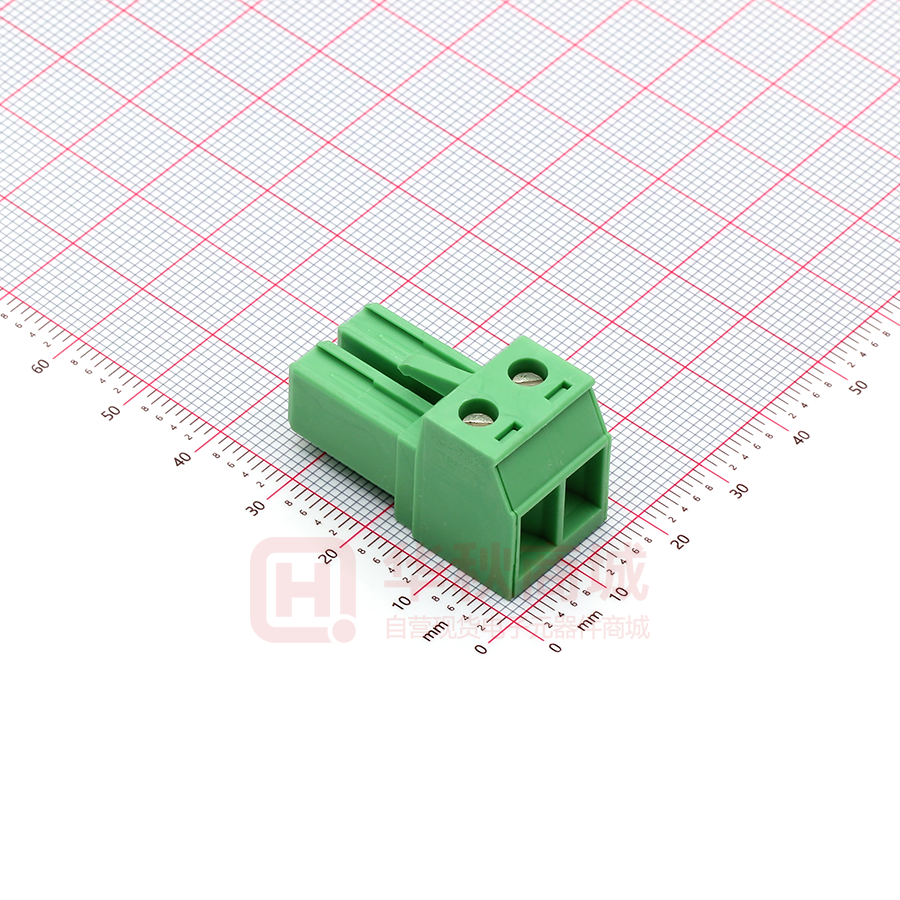

Plug component, Nominal current: 20 A, Nom. voltage: 400 V, Pitch:
7.62 mm, Number of positions: 2, Connection type: Screw connection,
Color: green
Product notes
WEEE/RoHS-compliant since:
09/08/2005
Commercial data
EAN
4017918046347
Pack
50 pcs.
Customs tariff
85366990
Weight/Piece
0.008769 KG
Catalog page information
Page 366 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions / positions
Pitch
7.62 mm
Dimension a
7.62 mm
Number of positions
2
Screw thread
M3
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 6
Mar 11, 2010
PC 4/ 2-ST-7,62 Order No.: 1804904
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1804904
Tightening torque, min
0.5 Nm
Tightening torque max
0.6 Nm
Technical data
Insulating material group
I
Rated surge voltage (III/3)
6 kV
Rated surge voltage (III/2)
6 kV
Rated surge voltage (II/2)
6 kV
Rated voltage (III/2)
630 V
Rated voltage (II/2)
1000 V
Connection in acc. with standard
EN-VDE
Nominal current IN
20 A
Nominal voltage UN
400 V
Nominal cross section
4 mm²
Maximum load current
20 A
Insulating material
PA
Inflammability class acc. to UL 94
V0
Internal cylindrical gage
A4
Stripping length
7 mm
Connection data
Conductor cross section solid min.
0.2 mm²
Conductor cross section solid max.
4 mm²
Conductor cross section stranded min.
0.2 mm²
Conductor cross section stranded max.
4 mm²
Conductor cross section stranded, with ferrule
without plastic sleeve min.
0.25 mm²
Conductor cross section stranded, with ferrule
without plastic sleeve max.
4 mm²
Conductor cross section stranded, with ferrule
with plastic sleeve min.
0.25 mm²
Conductor cross section stranded, with ferrule
with plastic sleeve max.
4 mm²
Conductor cross section AWG/kcmil min.
24
Conductor cross section AWG/kcmil max
10
2 conductors with same cross section, solid min.
0.2 mm²
2 conductors with same cross section, solid max.
2.5 mm²
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 6
Mar 11, 2010
PC 4/ 2-ST-7,62 Order No.: 1804904
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1804904
2 conductors with same cross section, stranded
min.
0.2 mm²
2 conductors with same cross section, stranded
max.
1.5 mm²
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
0.25 mm²
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
1.5 mm²
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
0.5 mm²
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
2.5 mm²
Certificates / Approvals
Certification
BV, CSA, CUL, GOST, RS, UL
CSA
Nominal voltage UN
300 V
Nominal current IN
20 A
AWG/kcmil
28-10
CUL
Nominal voltage UN
600 V
Nominal current IN
5A
AWG/kcmil
30-10
UL
Nominal voltage UN
600 V
Nominal current IN
5A
AWG/kcmil
30-10
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 6
Mar 11, 2010
PC 4/ 2-ST-7,62 Order No.: 1804904
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1804904
Accessories
Item
Designation
Description
1837227
KGG-PC 4/ 3
Cable housing, Pitch: 7.62 mm, Number of positions: 3,
Dimension a: 24.66 mm, Color: green
1837324
KGG-PC 4/ 3-F
Cable housing, Pitch: 7.62 mm, Number of positions: 3,
Dimension a: 24.66 mm, Color: green
1837256
KGS-PC 4/ 6
Cable housing, Pitch: 7.62 mm, Number of positions: 6,
Dimension a: 47.52 mm, Color: green
1837353
KGS-PC 4/ 6-F
Cable housing, Pitch: 7.62 mm, Number of positions: 6,
Dimension a: 47.52 mm, Color: green
SK 7,62/3,8:FORTL.ZAHLEN
Marker card, printed horizontally, self-adhesive, 10-section marker
strip, 12 identical decades marked 1-10, 11-20 etc. up to 91-99,
sufficient for 120 terminal blocks
CP-HCC 4
Coding profile, Color: red
SZS 0,6X3,5
Screwdriver, bladed, matches all screw terminal blocks up to 4.0
mm² connection cross section, blade: 0.6 x 3.5 mm, without VDE
approval
General
Marking
0804549
Plug/Adapter
1600027
Tools
1205053
Additional products
Item
Designation
Description
1849998
PCVK 4-7,62
Plug component, Nominal current: 20 A, Nom. voltage: 500
V, Pitch: 7.62 mm, Number of positions: 1, Width: 7.62 mm,
Connection type: Screw connection, Color: green
1876246
PCVK 4-7,62-PE
Plug component, Nom. voltage: 500 V, Pitch: 7.62 mm, Number of
positions: 1, Width: 7.62 mm, Connection type: Screw connection,
Color: green-yellow
1838381
UPCV3K 4-G-7,62
Header, Nominal current: 20 A, Nom. voltage: 800 V, Pitch: 7.62
mm, Number of positions: 1, Width: 7.62 mm, Connection type:
Screw connection, Color: gray
General
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 6
Mar 11, 2010
PC 4/ 2-ST-7,62 Order No.: 1804904
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1804904
Diagrams/Drawings
Diagram
Derating curve for: PC 4/..-ST-7,62 with PC
4/..-G-7,62
Derating curve for: PC 4/..-ST-7,62 with PCV
4/..-G-7,62
Dimensioned drawing
