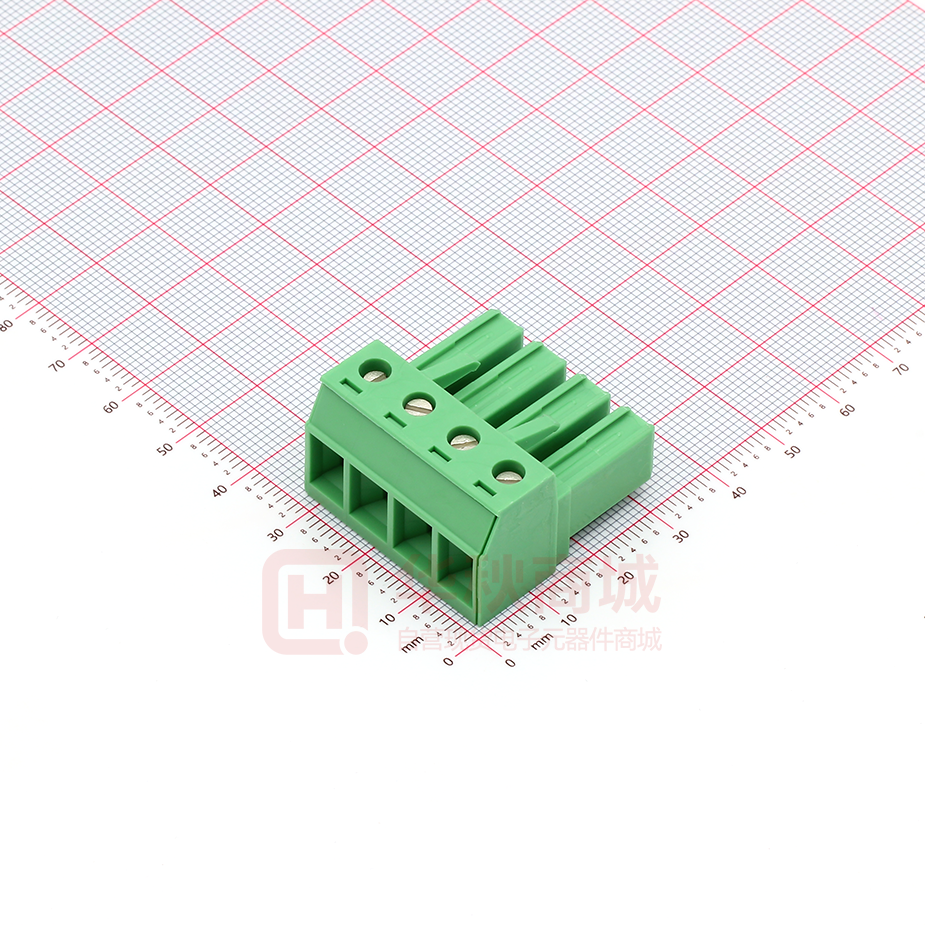

PC 4/ 4-ST-7,62
Order No.: 1804920
The figure shows a 5-pos. version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1804920
Plug component, nominal current: 20 A, rated voltage: 400 V, pitch:
7.62 mm, no. of positions: 4, type of connection: Screw connection
Product notes
WEEE/RoHS-compliant since:
09/08/2005
Commercial data
EAN
4017918046361
Pack
50 Pcs.
Customs tariff
85366990
Weight/Piece
0.017117 KG
Catalog page information
Page 322 (CC-2007)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions / positions
Pitch
7.62 mm
Dimension a
22.86 mm
Number of positions
4
Screw thread
M3
Tightening torque, min
0.5 Nm
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.de
Page 1 / 6
Mar 5, 2008
PC 4/ 4-ST-7,62 Order No.: 1804920
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1804920
Technical data
Insulating material group
I
Rated surge voltage (III/3)
6 kV
Rated surge voltage (III/2)
6 kV
Rated surge voltage (II/2)
6 kV
Rated voltage (III/2)
630 V
Rated voltage (II/2)
1000 V
Connection in acc. with standard
EN-VDE
Nominal current IN
20 A
Nominal voltage UN
400 V
Nominal cross section
4 mm
Maximum load current
20 A
Insulating material
PA
Inflammability class acc. to UL 94
V0
Internal cylindrical gage
A4
Stripping length
7 mm
2
Connection data
Conductor cross section solid min.
0.2 mm
Conductor cross section solid max.
4 mm
Conductor cross section stranded min.
0.2 mm
Conductor cross section stranded max.
4 mm
Conductor cross section stranded, with ferrule
without plastic sleeve min.
0.25 mm
Conductor cross section stranded, with ferrule
without plastic sleeve max.
4 mm
Conductor cross section stranded, with ferrule
with plastic sleeve min.
0.25 mm
Conductor cross section stranded, with ferrule
with plastic sleeve max.
4 mm
Conductor cross section AWG/kcmil min.
24
Conductor cross section AWG/kcmil max
10
2 conductors with same cross section, solid min.
0.2 mm
2 conductors with same cross section, solid max.
2.5 mm
2 conductors with same cross section, stranded
min.
0.2 mm
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.de
2
2
2
2
2
2
2
2
2
2
2
Page 2 / 6
Mar 5, 2008
PC 4/ 4-ST-7,62 Order No.: 1804920
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1804920
2 conductors with same cross section, stranded
max.
1.5 mm
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
0.25 mm
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
1.5 mm
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
0.5 mm
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
2.5 mm
2
2
2
2
2
Certificates / Approvals
Approval logo
CSA
Nominal voltage UN
300 V
Nominal current IN
20 A
AWG/kcmil
28-10
CUL
Nominal voltage UN
600 V
Nominal current IN
20 A
AWG/kcmil
30-10
UL
Nominal voltage UN
600 V
Nominal current IN
20 A
AWG/kcmil
30-10
Certification
BV, CSA, CUL, GOST, RS, UL
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.de
Page 3 / 6
Mar 5, 2008
PC 4/ 4-ST-7,62 Order No.: 1804920
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1804920
Accessories
Item
Designation
Description
1837227
KGG-PC 4/ 3
Cable housing, for cable diameters of 4 -8 mm, clamp, marker
strips and transparent label carrier are included, color: green, no.
of positions: 3
1837324
KGG-PC 4/ 3-F
Cable housing with screw flange, for cable diameters of 4 -8 mm,
clamp, marker strips and transparent label carrier are included,
color: green, no. of positions: 3
1837256
KGS-PC 4/ 6
Cable housing, for cable diameters of 6 - 16 mm, marker strips
and transparent label carrier are included, color: green, no. of
positions: 6
1837353
KGS-PC 4/ 6-F
Cable housing with screw flange, for cable diameters of 6 - 16
mm, marker strips and transparent label carrier are included,
color: green, no. of positions: 6
SK 7,62/3,8:FORTL.ZAHLEN
Marker card, printed horizontally, self-adhesive, 10-section marker
strip, 12 identical decades marked 1-10, 11-20 etc. up to 91-99,
sufficient for 120 terminal blocks
CP-HCC 4
Coding profile, is inserted into the slot on the plug and header, red
insulating material
SZS 0,6X3,5
Screwdriver, bladed, matches all screw terminal blocks up to 4.0
mm² connection cross section, blade: 0.6 x 3.5 mm, without VDE
approval
General
Marking
0804549
Plug/Adapter
1600027
Tools
1205053
Additional products
Item
Designation
Description
1849998
PCVK 4-7,62
Modular terminal blocks with plug entry, cross section: 0.2 - 4
mm², AWG: 30 - 10, width: 7.6 mm, color: green
1876246
PCVK 4-7,62-PE
Modular terminal blocks with plug entry, cross section: 0.2 - 4
mm², width: 7.6 mm, color: green-yellow
1838381
UPCV3K 4-G-7,62
Modular terminal blocks with POWER-COMBICON plug entries,
cross section: 0.2 - 4 mm, AWG: 30 - 10, width: 7.6 mm, color:
gray
General
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.de
Page 4 / 6
Mar 5, 2008
PC 4/ 4-ST-7,62 Order No.: 1804920
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1804920
Drawings
Diagram
Derating curve for: PC 4/..-ST-7,62 with PC
4/..-G-7,62
Derating curve for: PC 4/..-ST-7,62 with PCV
4/..-G-7,62
Dimensioned drawing
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.de
Page 5 / 6
Mar 5, 2008
PC 4/ 4-ST-7,62 Order No.: 1804920
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1804920
Address
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 00
Fax +49 5235 3 41200
http://www.phoenixcontact.de
© 2008 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT GmbH & Co. KG
http://www.phoenixcontact.de
Page 6 / 6
