PC 4/11-ST-7,62
Order No.: 1804991

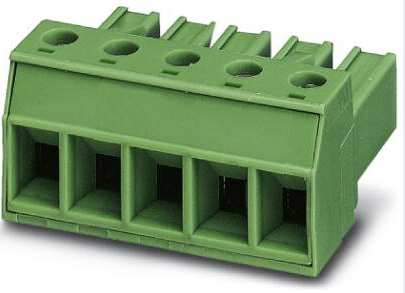

The figure shows a 5-pos. version of the product
s.
Plug component, Nominal current: 20 A, Rated voltage (III/2): 630 V,
Pitch: 7.62 mm, Color: green, Metal surface: Sn
co
m
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1804991
Commercial data
4017918046439
sales group
E512
Pack
50 pcs.
Customs tariff
85366990
Weight/Piece
0.04672 KG
po
om
Page 366 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
on
l
in
ec
Catalog page information
WEEE/RoHS-compliant since:
09/08/2005
ne
EAN
nt
Product notes
Technical data
Dimensions / positions
Pitch
7.62 mm
Dimension a
76.2 mm
Number of positions
11
Screw thread
M3
Tightening torque, min
0.5 Nm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
May 21, 2010
PC 4/11-ST-7,62 Order No.: 1804991
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1804991
Tightening torque max
0.6 Nm
6 kV
Rated surge voltage (III/2)
6 kV
Rated surge voltage (II/2)
6 kV
Rated voltage (III/2)
630 V
Rated voltage (II/2)
1000 V
Connection in acc. with standard
EN-VDE
Nominal current IN
20 A
Nominal voltage UN
400 V
Nominal cross section
4 mm²
Maximum load current
20 A
Insulating material
PA
Inflammability class acc. to UL 94
V0
Internal cylindrical gage
A4
Stripping length
7 mm
om
Nominal current, UL/CUL Use Group B
ne
po
Nominal voltage, UL/CUL Use Group B
300 V
20 A
300 V
Nominal current, UL/CUL Use Group C
20 A
in
ec
Nominal voltage, UL/CUL Use Group C
Nominal voltage, UL/CUL Use Group D
600 V
Nominal current, UL/CUL Use Group D
5A
on
l
Connection data
Conductor cross section solid min.
0.2 mm²
Conductor cross section solid max.
4 mm²
Conductor cross section stranded min.
0.2 mm²
Conductor cross section stranded max.
4 mm²
Conductor cross section stranded, with ferrule
without plastic sleeve min.
0.25 mm²
Conductor cross section stranded, with ferrule
without plastic sleeve max.
4 mm²
Conductor cross section stranded, with ferrule
with plastic sleeve min.
0.25 mm²
Conductor cross section stranded, with ferrule
with plastic sleeve max.
4 mm²
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
co
Rated surge voltage (III/3)
s.
I
nt
Insulating material group
m
Technical data
Page 2 / 5
May 21, 2010
PC 4/11-ST-7,62 Order No.: 1804991
10
2 conductors with same cross section, solid min.
0.2 mm²
2 conductors with same cross section, solid max.
2.5 mm²
2 conductors with same cross section, stranded
min.
0.2 mm²
2 conductors with same cross section, stranded
max.
1.5 mm²
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
0.25 mm²
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
1.5 mm²
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
0.5 mm²
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
2.5 mm²
Minimum AWG according to UL/CUL
30
Maximum AWG according to UL/CUL
10
CSA
Nominal voltage UN
AWG/kcmil
CUL
on
l
Nominal current IN
in
ec
Certification
om
ne
po
Certificates / Approvals
co
Conductor cross section AWG/kcmil max
s.
24
nt
Conductor cross section AWG/kcmil min.
m
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1804991
BV, CSA, CUL, GOST, RS, UL
300 V
20 A
28-10
Nominal voltage UN
600 V
Nominal current IN
5A
AWG/kcmil
30-10
UL
Nominal voltage UN
600 V
Nominal current IN
5A
AWG/kcmil
30-10
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
May 21, 2010
PC 4/11-ST-7,62 Order No.: 1804991
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1804991
Diagrams/Drawings
Diagram
Derating curve for: PC 4/..-ST-7,62 with
PCV 4/..-G-7,62
co
m
Derating curve for: PC 4/..-ST-7,62 with
PC 4/..-G-7,62
on
l
in
ec
om
po
ne
nt
s.
Dimensioned drawing
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 4 / 5
May 21, 2010
PC 4/11-ST-7,62 Order No.: 1804991
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1804991
Address
s.
co
m
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.de
on
l
in
ec
om
po
