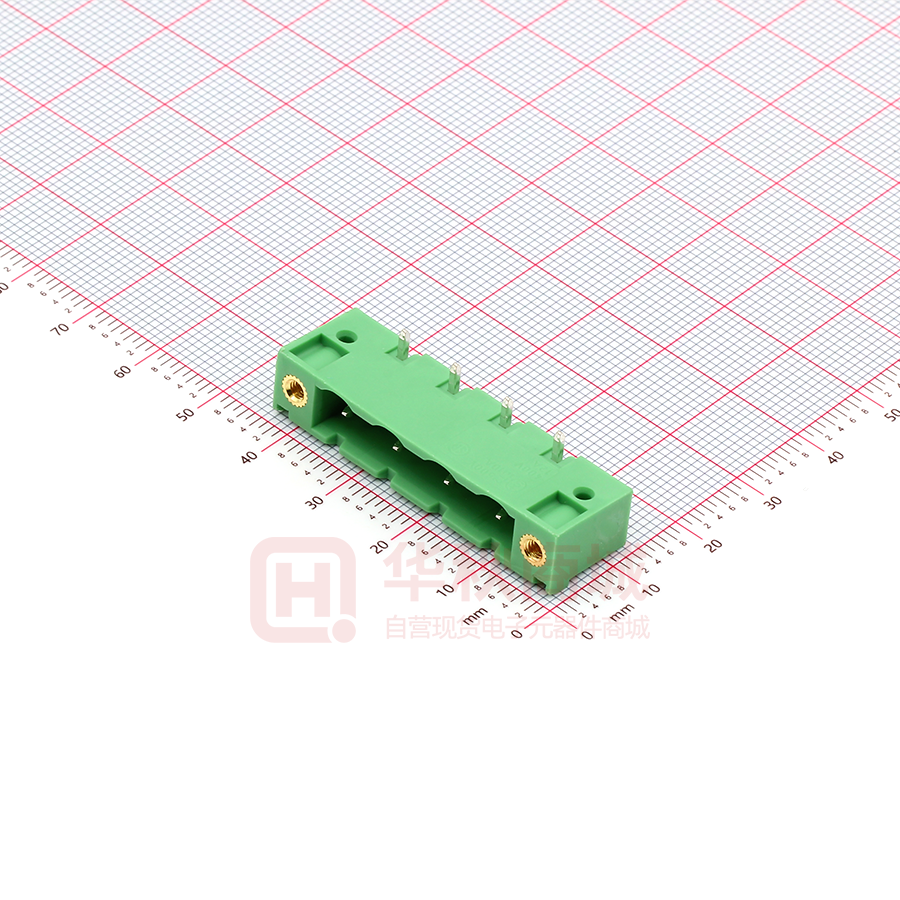

GMSTB 2,5/ 4-GF-7,62
Order No.: 1806245
The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1806245
Header, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number
of positions: 4, Pitch: 7.62 mm, Color: green, Metal surface: Sn,
Assembly: Soldering
Product notes
WEEE/RoHS-compliant since:
01/01/2003
Commercial data
GTIN (EAN)
4
017918
046910
sales group
E112
Pack
50 pcs.
Customs tariff
85366990
Catalog page information
Page 275 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions / positions
Length
12 mm
Pitch
7.62 mm
Dimension a
22.86 mm
Number of positions
4
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 1 / 5
Jan 25, 2011
GMSTB 2,5/ 4-GF-7,62 Order No.: 1806245
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1806245
Pin dimensions
1 x 1 mm
Hole diameter
1.4 mm
Technical data
Range of articles
GMSTB 2,5/..-GF
Insulating material group
I
Rated surge voltage (III/3)
6 kV
Rated surge voltage (III/2)
6 kV
Rated surge voltage (II/2)
6 kV
Rated voltage (III/2)
630 V
Rated voltage (II/2)
630 V
Connection in acc. with standard
EN-VDE
Nominal current IN
12 A
Nominal voltage UN
400 V
Maximum load current
12 A
Insulating material
PA
Inflammability class acc. to UL 94
V0
Nominal voltage, UL/CUL Use Group B
250 V
Nominal current, UL/CUL Use Group B
12 A
Nominal voltage, UL/CUL Use Group D
300 V
Nominal current, UL/CUL Use Group D
10 A
Certificates / Approvals
Certification
CB, CSA, CUL, GOST, UL, VDE-PZI
Accessories
Item
Designation
Description
MSTB-BL
Keying cap, for forming sections, plugs onto header pin, green
insulating material
Assembly
1755477
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 2 / 5
Jan 25, 2011
GMSTB 2,5/ 4-GF-7,62 Order No.: 1806245
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1806245
Marking
0804549
SK 7,62/3,8:FORTL.ZAHLEN
Marker card, printed horizontally, self-adhesive, 10-section marker
strip, 12 identical decades marked 1-10, 11-20 etc. up to 91-99,
sufficient for 120 terminal blocks
CR-MSTB
Coding section, inserted into the recess in the header or the
inverted plug, red insulating material
Plug/Adapter
1734401
Additional products
Item
Designation
Description
1806009
FRONT-GMSTB 2,5/ 4-STF-7,62
Plug component, Nominal current: 12 A, Rated voltage (III/2): 630
V, Number of positions: 4, Pitch: 7.62 mm, Color: green, Metal
surface: Sn
1858785
GMSTB 2,5/ 4-STF-7,62
Plug component, Nominal current: 12 A, Rated voltage (III/2): 630
V, Number of positions: 4, Pitch: 7.62 mm, Color: green, Metal
surface: Sn
1847903
GMVSTBR 2,5/ 4-STF-7,62
Plug component, Nominal current: 12 A, Rated voltage (III/2): 630
V, Number of positions: 4, Pitch: 7.62 mm, Color: green, Metal
surface: Sn
1848012
GMVSTBW 2,5/ 4-STF-7,62
Plug component, Nominal current: 12 A, Rated voltage (III/2): 630
V, Number of positions: 4, Pitch: 7.62 mm, Color: green, Metal
surface: Sn
General
Diagrams/Drawings
Drilling plan/solder pad geometry
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 3 / 5
Jan 25, 2011
GMSTB 2,5/ 4-GF-7,62 Order No.: 1806245
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1806245
Dimensioned drawing
PHOENIX CONTACT Inc., USA
http://www.phoenixcon.com
Page 4 / 5
Jan 25, 2011
GMSTB 2,5/ 4-GF-7,62 Order No.: 1806245
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1806245
