1806261

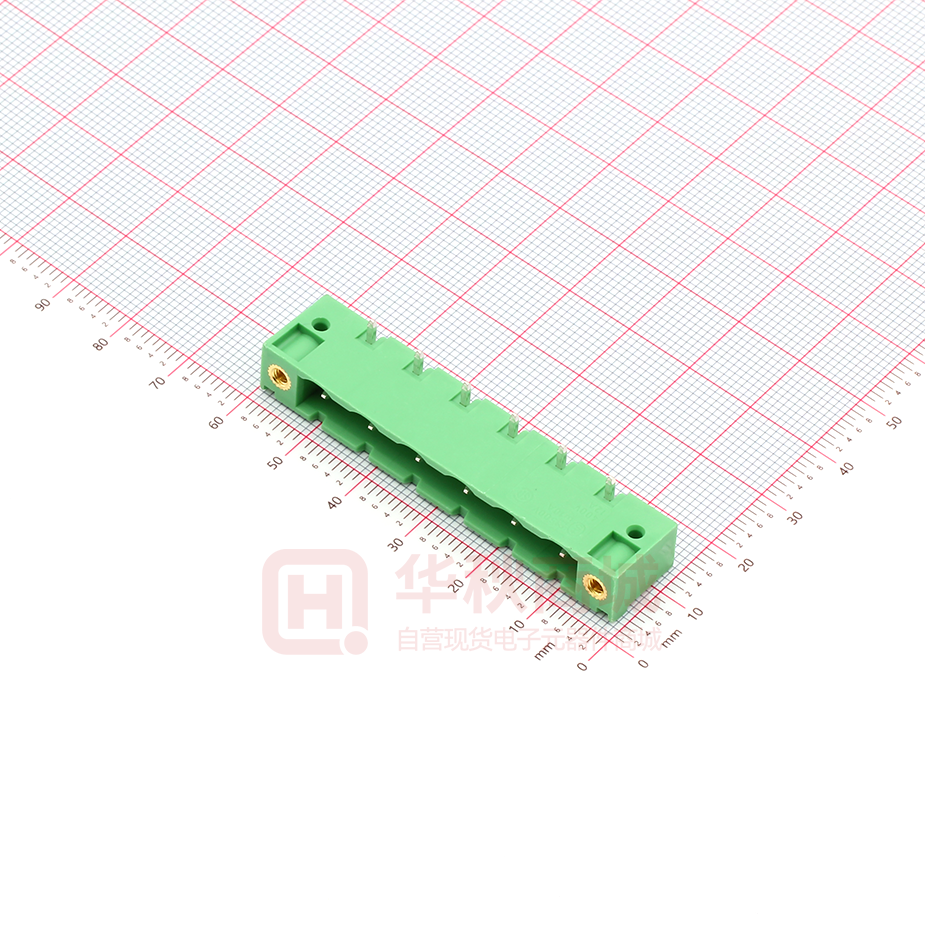

https://www.phoenixcontact.com/us/produkte/1806261 Base strip - GMSTB 2,5/ 6-GF-7,62 - 1806261 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Header, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 6, Pitch: 7.62 mm, Color: green, Contact surface: Tin, Assembly: Soldering The figure shows a 10-position version of the product Why buy this product  Versions with threaded flange and 7.62 mm pitch  Plug-in direction parallel to the PCB  Headers with angled solder pins for 630 V applications (III/2)   Key commercial data Packing unit 1 Minimum order quantity 50 Catalog page Page 315 (CC-2011) GTIN Custom tariff number 85366990 Country of origin GERMANY Technical data Dimensions / positions Length 12 mm Pitch 7.62 mm Dimension a 38.1 mm Number of positions 6 Pin dimensions 1 x 1 mm Hole diameter 1.4 mm Technical data Range of articles GMSTB 2,5/..-GF Insulating material group I Rated surge voltage (III/3) 6 kV Rated surge voltage (III/2) 6 kV 10.10.2012   Page 1 / 6 https://www.phoenixcontact.com/us/produkte/1806261 Base strip - GMSTB 2,5/ 6-GF-7,62 - 1806261 Technical data Technical data Rated surge voltage (II/2) 6 kV Rated voltage (III/2) 630 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Nominal voltage UN 400 V Maximum load current 12 A Insulating material PA Inflammability class according to UL 94 V0 Color green Nominal voltage, UL/CUL Use Group B 250 V Nominal current, UL/CUL Use Group B 12 A Nominal voltage, UL/CUL Use Group D 300 V Nominal current, UL/CUL Use Group D 10 A Classifications eclass eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 etim ETIM 3.0 EC001121 ETIM 4.0 EC002637 ETIM 5.0 EC002637 unspsc UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals 10.10.2012   Page 2 / 6 https://www.phoenixcontact.com/us/produkte/1806261 Base strip - GMSTB 2,5/ 6-GF-7,62 - 1806261 Approvals Approvals CSA / UL Recognized / VDE report with production monitoring / cUL Recognized / GOST / IECEE CB Scheme / GOST / cULus Recognized Ex Approvals Approvals submitted Approval details CSA    B D Nominal current IN 10 A 10 A Nominal voltage UN 300 V 300 V   B D Nominal current IN 12 A 10 A Nominal voltage UN 250 V 300 V UL Recognized  VDE report with production monitoring      Nominal current IN 12 A Nominal voltage UN 400 V cUL Recognized    B D Nominal current IN 12 A 10 A Nominal voltage UN 250 V 300 V GOST  10.10.2012   Page 3 / 6 https://www.phoenixcontact.com/us/produkte/1806261 Base strip - GMSTB 2,5/ 6-GF-7,62 - 1806261 Approvals IECEE CB Scheme      Nominal current IN 12 A Nominal voltage UN 400 V GOST  cULus Recognized  Accessories Accessories Assembly Accessories - MSTB-BL - 1755477 Keying cap, for forming sections, plugs onto header pin, green insulating material     Marking Marker cards - SK 7,62/3,8:FORTL.ZAHLEN - 0804549 Marker cards, Card, white, Labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 100, Mounting type: Adhesive, For terminal block width: 7.62 mm     Plug/Adapter Keying star - CR-MSTB - 1734401 Coding section, inserted into the recess in the header or the inverted plug, red insulating material     Additional products 10.10.2012   Page 4 / 6 https://www.phoenixcontact.com/us/produkte/1806261 Base strip - GMSTB 2,5/ 6-GF-7,62 - 1806261 Accessories Printed-circuit board connector - GMSTB 2,5/ 6-STF-7,62 - 1858808 Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 6, Pitch: 7.62 mm, Connection method: Screw connection, Color: green, Contact surface: Tin     Printed-circuit board connector - GMVSTBR 2,5/ 6-STF-7,62 - 1847929 Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 6, Pitch: 7.62 mm, Connection method: Screw connection, Color: green, Contact surface: Tin     Printed-circuit board connector - FRONT-GMSTB 2,5/ 6-STF-7,62 - 1806041 Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 6, Pitch: 7.62 mm, Connection method: Screw connection, Color: green, Contact surface: Tin     Printed-circuit board connector - GMVSTBW 2,5/ 6-STF-7,62 - 1848038 Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 6, Pitch: 7.62 mm, Connection method: Screw connection, Color: green, Contact surface: Tin     Drawings Drilling diagram Dimensioned drawing a 9,1 31,2 12 1,4 a+18,2 2,4 3,5 8,6 2,5 15 2 6,1 7,62 2,5 2 6,1 7,62 a 10.10.2012   Page 5 / 6 https://www.phoenixcontact.com/us/produkte/1806261 © Phoenix Contact 2012 - all rights reserved http://www.phoenixcontact.com 10.10.2012   Page 6 / 6
