1806300

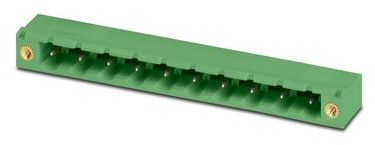

https://www.phoenixcontact.com/us/products/1806300 Base strip - GMSTB 2,5/10-GF-7,62 - 1806300 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Header, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 10, Pitch: 7.62 mm, Color: green, Contact surface: Tin, Mounting: Wave soldering Product Features ■ ■ ■ Versions with threaded flange and 7.62 mm pitch Plug-in direction parallel to the PCB Headers with angled solder pins for 630 V applications (III/2) Key Commercial Data Packing unit 1 pc GTIN Weight per Piece (excluding packing) 7.66 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length 12 mm Pitch 7.62 mm Dimension a 68.58 mm Constructional height 9 mm Length of the solder pin 3.5 mm Pin dimensions 1 x 1 mm Hole diameter 1.4 mm 04/11/2016   Page 1 / 5 https://www.phoenixcontact.com/us/products/1806300 Base strip - GMSTB 2,5/10-GF-7,62 - 1806300 Technical data General Range of articles GMSTB 2,5/..-GF Insulating material group I Rated surge voltage (III/3) 6 kV Rated surge voltage (III/2) 6 kV Rated surge voltage (II/2) 6 kV Rated voltage (III/3) 400 V Rated voltage (III/2) 630 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Maximum load current 12 A Insulating material PA Flammability rating according to UL 94 V0 Color green Number of positions 10 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 eCl@ss 8.0 27440402 eCl@ss 9.0 27440402 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002637 ETIM 5.0 EC002637 04/11/2016   Page 2 / 5 https://www.phoenixcontact.com/us/products/1806300 Base strip - GMSTB 2,5/10-GF-7,62 - 1806300 Classifications UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals CSA / UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / IECEE CB Scheme / EAC / EAC / cULus Recognized Ex Approvals Approvals submitted Approval details CSA    B D Nominal current IN 10 A 10 A Nominal voltage UN 300 V 300 V   B D Nominal current IN 15 A 10 A Nominal voltage UN 300 V 300 V UL Recognized  04/11/2016   Page 3 / 5 https://www.phoenixcontact.com/us/products/1806300 Base strip - GMSTB 2,5/10-GF-7,62 - 1806300 Approvals VDE Gutachten mit Fertigungsüberwachung      Nominal current IN 12 A Nominal voltage UN 400 V cUL Recognized    B D Nominal current IN 15 A 10 A Nominal voltage UN 300 V 300 V IECEE CB Scheme      Nominal current IN 12 A Nominal voltage UN 400 V EAC  EAC  cULus Recognized  Drawings 04/11/2016   Page 4 / 5 https://www.phoenixcontact.com/us/products/1806300 Base strip - GMSTB 2,5/10-GF-7,62 - 1806300 Drilling diagram Dimensional drawing a 9,1 31,2 12 1,4 a+18,2 2,4 3,5 8,6 2,5 15 2 6,1 7,62 2,5 2 6,1 7,62 a Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 04/11/2016   Page 5 / 5
