1806313

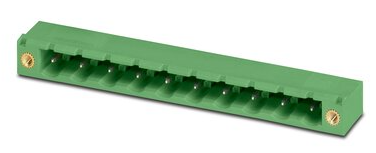

https://www.phoenixcontact.com/us/products/1806313 Base strip - GMSTB 2,5/11-GF-7,62 - 1806313 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Header, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 11, Pitch: 7.62 mm, Color: green, Contact surface: Tin, Mounting: Wave soldering The figure shows a 10-position version of the product Why buy this product  Plug-in direction parallel to the PCB  Headers with angled solder pins for 630 V applications (III/2)  Maximum flexibility when it comes to device design – one header for connectors with different connection technologies  Well-known mounting principle allows worldwide use  Larger pitch for increased voltage requirements Key Commercial Data Packing unit 1 STK Weight per Piece (excluding packing) 8.130 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Length 12 mm Pitch 7.62 mm Dimension a 76.2 mm Width 94.4 mm Constructional height 8.6 mm Height 11.8 mm Length of the solder pin 3.2 mm 10/31/2016   Page 1 / 4 https://www.phoenixcontact.com/us/products/1806313 Base strip - GMSTB 2,5/11-GF-7,62 - 1806313 Technical data Dimensions Pin dimensions 1,0 x 1,0 Hole diameter 1.4 mm General Range of articles GMSTB 2,5/..-GF Insulating material group I Rated surge voltage (III/3) 6 kV Rated surge voltage (III/2) 6 kV Rated surge voltage (II/2) 6 kV Rated voltage (III/3) 400 V Rated voltage (III/2) 630 V Rated voltage (II/2) 630 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Maximum load current 12 A Insulating material PA Flammability rating according to UL 94 V0 Color green Number of positions 11 Standards and Regulations Connection in acc. with standard EN-VDE CSA Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally Friendly Use Period = 50 For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” Drawings 10/31/2016   Page 2 / 4 https://www.phoenixcontact.com/us/products/1806313 Base strip - GMSTB 2,5/11-GF-7,62 - 1806313 Drilling diagram Dimensional drawing a 9,1 31,2 12 a+18,2 2,4 3,5 8,6 2,5 15 2 1,4 6,1 7,62 2,5 2 6,1 7,62 a Approvals Approvals Approvals CSA / UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / IECEE CB Scheme / EAC / cULus Recognized Ex Approvals Approval details CSA   http://www.csagroup.org/services/testing-and-certification/certified-product-listing/ 13631   B D Nominal current IN 10 A 10 A Nominal voltage UN 300 V 300 V UL Recognized   http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425   B D Nominal current IN 15 A 10 A Nominal voltage UN 300 V 300 V 10/31/2016   Page 3 / 4 https://www.phoenixcontact.com/us/products/1806313 Base strip - GMSTB 2,5/11-GF-7,62 - 1806313 Approvals VDE Gutachten mit Fertigungsüberwachung  Search.aspx 40004701  http://www.vde.com/en/Institute/OnlineService/VDE-approved-products/Pages/Online-     Nominal current IN 12 A Nominal voltage UN 400 V cUL Recognized   http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm FILE E 60425   B D Nominal current IN 15 A 10 A Nominal voltage UN 300 V 300 V IECEE CB Scheme   http://www.iecee.org/ DE1-56062-B1B2     Nominal current IN 12 A Nominal voltage UN 400 V EAC   B.01742 cULus Recognized   http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 10/31/2016   Page 4 / 4
