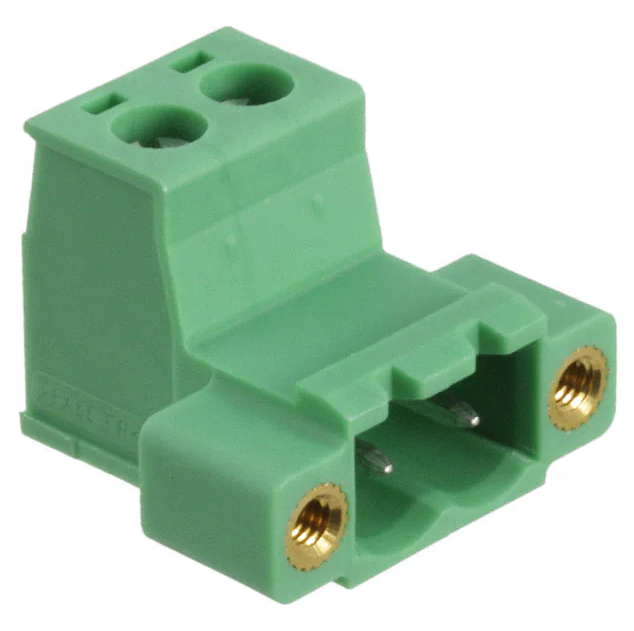

PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 Please be informed that the data shown in this PDF document is generated from our Online Catalog. Please find the complete data in the user documentation. Our General Terms of Use for Downloads are valid. PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Male connector, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: IC 2,5/..STGF, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plugin system: COMBICON MSTB 2,5, locking: Screw locking, mounting: Threaded flange, type of packaging: packed in cardboard Your advantages • Well-known connection principle allows worldwide use • Easy PCB replacement thanks to plug-in modules • Screwable flange for superior mechanical stability • Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections • Can be combined with the MSTB 2,5 range • Low temperature rise, thanks to maximum contact force Commercial Data Item number 1825501 Packing unit 1 pc Minimum order quantity 50 pc Sales Key A01 Product Key AACADC Catalog Page Page 273 (C-1-2013) GTIN 4017918049669 Weight per Piece (including packing) 4.58 g Weight per Piece (excluding packing) 4.226 g Customs tariff number 85366990 Country of origin DE Aug 30, 2022, 6:05 AM Page 1 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 Technical Data Product properties Type Inverted Product line COMBICON Connectors M Product type PCB plug Number of positions 2 Pitch 5.08 mm Number of connections 2 Number of rows 1 Mounting flange Threaded flange Number of potentials 2 Electrical properties Nominal current IN 12 A Nominal voltage UN 320 V Pollution degree 3 Contact resistance 1.5 mΩ Rated voltage (III/3) 250 V Rated surge voltage (III/3) 4 kV Rated voltage (III/2) 320 V Rated surge voltage (III/2) 4 kV Connection data Connection technology Type Inverted Connector system COMBICON MSTB 2,5 Nominal cross section 2.5 mm² Type of contact Male connector Interlock Locking type Screw locking Mounting flange Threaded flange Tightening torque 0.3 Nm Conductor connection Connection method Screw connection with tension sleeve Conductor/PCB connection direction 0° Conductor cross section solid 0.2 mm² ... 2.5 mm² Conductor cross section flexible 0.2 mm² ... 2.5 mm² Conductor cross section AWG 24 ... 12 Conductor cross section flexible, with ferrule without plastic sleeve 0.25 mm² ... 2.5 mm² Conductor cross section, flexible, with ferrule, with plastic sleeve 0.25 mm² ... 2.5 mm² Aug 30, 2022, 6:05 AM Page 2 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 2 conductors with same cross section, solid 0.2 mm² ... 1 mm² 2 conductors with same cross section, flexible 0.2 mm² ... 1.5 mm² 2 conductors with same cross section, flexible, with ferrule without plastic sleeve 0.25 mm² ... 1 mm² 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve 0.5 mm² ... 1.5 mm² Cylindrical gauge a x b / diameter 2.8 mm x 2.0 mm / 2.4 mm Stripping length 7 mm Tightening torque 0.5 Nm ... 0.6 Nm Material specifications Material data - contact Note WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material Cu alloy Surface characteristics Tin-plated Metal surface terminal point (top layer) Tin (5 - 7 µm Sn) Metal surface terminal point (middle layer) Nickel (2 - 3 µm Ni) Metal surface contact area (top layer) Tin (5 - 7 µm Sn) Metal surface contact area (middle layer) Nickel (2 - 3 µm Ni) Material data - housing Housing color green (6021) Insulating material PA Insulating material group I CTI according to IEC 60112 600 Flammability rating according to UL 94 V0 Glow wire flammability index GWFI according to EN 60695-2-12 850 Glow wire ignition temperature GWIT according to EN 60695-213 775 Temperature for the ball pressure test according to EN 6069510-2 125 °C Dimensions Dimensional drawing Pitch 5.08 mm Width [w] 20.28 mm Height [h] 15 mm Length [l] 19.2 mm Installed height 15 mm Aug 30, 2022, 6:05 AM Page 3 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 Mounting Drive form screw head Slotted (L) Flange Tightening torque 0.3 Nm Notes Notes on operation In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. Mechanical tests Test for conductor damage and slackening Specification IEC 60999-1:1999-11 Result Test passed Pull-out test Specification IEC 60999-1:1999-11 Conductor cross section/conductor type/tractive force setpoint/actual value 0.2 mm² / solid / > 10 N 0.2 mm² / flexible / > 10 N 2.5 mm² / solid / > 50 N 2.5 mm² / flexible / > 50 N Insertion and withdrawal forces Result Test passed No. of cycles 25 Insertion strength per pos. approx. 8N Withdraw strength per pos. approx. 6N Torque test Specification IEC 60999-1:1999-11 Contact holder in insert Specification IEC 60512-15-1:2008-05 Contact holder in insert Requirements >20 N Test passed Resistance of inscriptions Specification IEC 60068-2-70:1995-12 Result Test passed Polarization and coding Specification IEC 60512-13-5:2006-02 Result Test passed Visual inspection Specification IEC 60512-1-1:2002-02 Aug 30, 2022, 6:05 AM Page 4 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 Result Test passed Dimension check Specification IEC 60512-1-2:2002-02 Result Test passed Environmental and real-life conditions Vibration test Specification IEC 60068-2-6:2007-12 Frequency 10 - 150 - 10 Hz Sweep speed 1 octave/min Amplitude 0.35 mm (10 - 60.1 Hz) Sweep speed 5g (60.1 - 150 Hz) Test duration per axis 2.5 h Durability test Specification IEC 60512-9-1:2010-03 Impulse withstand voltage at sea level 4.8 kV Contact resistance R1 1.5 mΩ Contact resistance R2 1.6 mΩ Insertion/withdrawal cycles 25 Insulation resistance, neighboring positions > 5 MΩ Climatic test Specification ISO 6988:1985-02 Corrosive stress 0.2 dm3 SO2 on 300 dm3/40 °C/1 cycle Thermal stress 100 °C/168 h Power-frequency withstand voltage 2.21 kV Ambient conditions Ambient temperature (operation) -40 °C ... 100 °C (dependent on the derating curve) Ambient temperature (storage/transport) -40 °C ... 70 °C Relative humidity (storage/transport) 30 % ... 70 % Ambient temperature (assembly) -5 °C ... 100 °C Electrical tests Thermal test | Test group C Specification IEC 60512-5-1:2002-02 Tested number of positions 20 Insulation resistance Specification IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions > 5 MΩ Air clearances and creepage distances | Specification IEC 60664-1:2007-04 Aug 30, 2022, 6:05 AM Page 5 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 Insulating material group I Comparative tracking index (IEC 60112) CTI 600 Rated insulation voltage (III/3) 250 V Rated surge voltage (III/3) 4 kV minimum clearance value - non-homogenous field (III/3) 3 mm minimum creepage distance (III/3) 3.2 mm Rated insulation voltage (III/2) 320 V Rated surge voltage (III/2) 4 kV minimum clearance value - non-homogenous field (III/2) 3 mm minimum creepage distance (III/2) 3 mm Rated insulation voltage (II/2) 630 V Rated surge voltage (II/2) 4 kV minimum clearance value - non-homogenous field (II/2) 3 mm minimum creepage distance (II/2) 3.2 mm Packaging specifications Type of packaging packed in cardboard Aug 30, 2022, 6:05 AM Page 6 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 Drawings Diagram Type: MSTBT 2,5/...-STF-5,08 with IC 2,5/...-STGF-5,08 Current strength [A] Diagram 24 20 16 12 = 2-pos. = 5-pos. = 16-pos. = 20-pos. 8 4 0 0 10 20 30 40 50 60 70 80 90 100 110 Ambient temperature [°C] Type: FKC 2,5/..-STF-5,08 with IC 2,5/..-STGF-5,08 Aug 30, 2022, 6:05 AM Page 7 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 Dimensional drawing 4,31 a+6,58 15 19,2 5,2 5,08 a Aug 30, 2022, 6:05 AM Page 8 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 Approvals  CSA Approval ID: 13631 Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2 300 V 10 A 28 - 12 - 300 V 10 A 28 - 12 - Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2 250 V 12 A - 0.2 - 2.5 Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2 250 V 12 A 30 - 12 - 300 V 10 A 30 - 12 - Nominal Voltage UN Nominal Current IN Cross Section AWG Cross Section mm2 250 V 12 A - 0.2 - 2.5 Use group B Use group D IECEE CB Scheme   Approval ID: DE1-60988-B1B2 EAC Approval ID: B.01687  cULus Recognized Approval ID: E60425-19931014 Use group B Use group D  VDE Zeichengenehmigung Approval ID: 40050694 Aug 30, 2022, 6:05 AM Page 9 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 Classifications ECLASS ECLASS-9.0 27440309 ECLASS-10.0.1 27440309 ECLASS-11.0 27460202 ETIM ETIM 8.0 EC002638 UNSPSC UNSPSC 21.0 39121400 Aug 30, 2022, 6:05 AM Page 10 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Aug 30, 2022, 6:05 AM Page 11 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 Accessories Screwdriver Screwdriver - SZS 0,6X3,5 - 1205053 https://www.phoenixcontact.com/us/products/1205053 Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip Coding section Coding section - CR-MSTB - 1734401 https://www.phoenixcontact.com/us/products/1734401 Coding section, inserted into the recess in the header or the inverted plug, red insulating material Aug 30, 2022, 6:05 AM Page 12 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 Marker card Marker card - SK 5,08/3,8:FORTL.ZAHLEN - 0804293 https://www.phoenixcontact.com/us/products/0804293 Marker card, white, labeled, horizontal: consecutive numbers 1 ... 10, 11 ... 20, etc. up to 91 ... (99)100, mounting type: adhesive, for terminal block width: 5.08 mm, lettering field size: 5.08 x 3.8 mm Insertion bridge Insertion bridge - EBP 2- 5 - 1733169 https://www.phoenixcontact.com/us/products/1733169 Insertion bridge for connectors with 5.0 mm or 5.08 mm pitch Aug 30, 2022, 6:05 AM Page 13 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 Accessories Accessories - MSTB-BL - 1755477 https://www.phoenixcontact.com/us/products/1755477 Keying cap, for forming sections, plugs onto header pin, green insulating material Cable housing Cable housing - KGG-MSTB 2,5/ 2 - 1803934 https://www.phoenixcontact.com/us/products/1803934 Cable housing, pitch: 0 mm, number of positions: 2, color: green Aug 30, 2022, 6:05 AM Page 14 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 Accessories Accessories - IC-DFR 2 - 1852024 https://www.phoenixcontact.com/us/products/1852024 Panel mounting frame, nominal cross section: 2.5 mm2, color: green, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: IC-DFR, pitch: 5.08 mm, type of packaging: packed in cardboard, This assembly frame can only be used in combination with IC 2,5/...STGF-5,08 PCB connector PCB connector - MVSTBW 2,5/ 2-STF-5,08 - 1834903 https://www.phoenixcontact.com/us/products/1834903 PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: MVSTBW 2,5/..-STF, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: -90 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard Aug 30, 2022, 6:05 AM Page 15 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 PCB connector PCB connector - FKCVR 2,5/ 2-STF-5,08 - 1874109 https://www.phoenixcontact.com/us/products/1874109 PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: FKCVR 2,5/..-STF, pitch: 5.08 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 90 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard PCB connector PCB connector - FKCVW 2,5/ 2-STF-5,08 - 1873809 https://www.phoenixcontact.com/us/products/1873809 PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: FKCVW 2,5/..-STF, pitch: 5.08 mm, connection method: Push-in spring connection, conductor/PCB connection direction: -90 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard Aug 30, 2022, 6:05 AM Page 16 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 PCB connector PCB connector - TMSTBP 2,5/ 2-STF-5,08 - 1853104 https://www.phoenixcontact.com/us/products/1853104 PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 4, product range: TMSTBP 2,5/..-STF, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON MSTB 2,5, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard, The plug allows conductors to be looped through from module to module. PCB connector PCB connector - MVSTBR 2,5/ 2-STF-5,08 - 1835096 https://www.phoenixcontact.com/us/products/1835096 PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: MVSTBR 2,5/..-STF, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 90 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard Aug 30, 2022, 6:05 AM Page 17 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 PCB connector PCB connector - MSTBC 2,5/ 2-STZF-5,08 - 1809734 https://www.phoenixcontact.com/us/products/1809734 PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, type of contact: Female connector, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: MSTBC 2,5/..-STZF, pitch: 5.08 mm, connection method: Crimp connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON MSTB 2,5, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard, Corresponding female crimp contacts with current [A] and conductor cross section range [mm2] data: 10A/MSTBC-MT 0,5-1,0 (3190564); 10A/MSTBC-MT 0,5-1,0 BA (3190645); 12A/MSTBC-MT 1,5-2,5 (3190551); 12A/MSTBC-MT 1,5-2,5 BA (3190658). BA = Bandkontakte PCB connector PCB connector - MSTB 2,5/ 2-STF-5,08 - 1777989 https://www.phoenixcontact.com/us/products/1777989 PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: MSTB 2,5/..-STF, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON MSTB 2,5, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard Aug 30, 2022, 6:05 AM Page 18 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 PCB connector PCB connector - MSTBT 2,5/ 2-STF-5,08 - 1805301 https://www.phoenixcontact.com/us/products/1805301 PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: MSTBT 2,5/..-STF, pitch: 5.08 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON MSTB 2,5, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard PCB connector PCB connector - FRONT-MSTB 2,5/ 2-STF-5,08 - 1777808 https://www.phoenixcontact.com/us/products/1777808 PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: FRONT-MSTB 2,5/..-STF, pitch: 5.08 mm, connection method: Front screw connection, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard Aug 30, 2022, 6:05 AM Page 19 (20) PCB connector - IC 2,5/ 2-STGF-5,08 1825501 https://www.phoenixcontact.com/us/products/1825501 PCB connector PCB connector - FKCT 2,5/ 2-STF-5,08 - 1902301 https://www.phoenixcontact.com/us/products/1902301 PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: FKCT 2,5/..-STF, pitch: 5.08 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - without locking clip, plug-in system: COMBICON MSTB 2,5, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard PCB connector PCB connector - FKC 2,5/ 2-STF-5,08 - 1873207 https://www.phoenixcontact.com/us/products/1873207 PCB connector, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, type of contact: Female connector, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: FKC 2,5/..-STF, pitch: 5.08 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: Screw locking, mounting: Screw flange, type of packaging: packed in cardboard Phoenix Contact 2022 © - all rights reserved https://www.phoenixcontact.com Phoenix Contact USA 586 Fulling Mill Road Middletown, PA 17057, United States (+717) 944-1300 info@phoenixcon.com Aug 30, 2022, 6:05 AM Page 20 (20)
