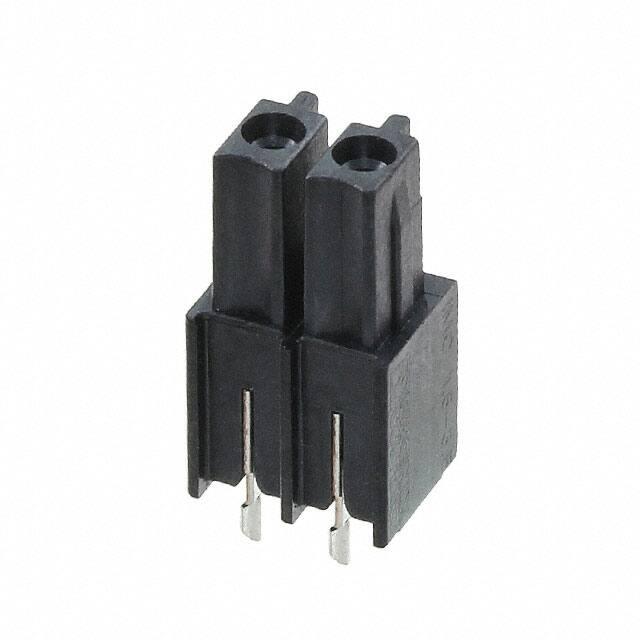

https://www.phoenixcontact.com/us/products/1830715 Feed-through header - IMCV 1,5/ 2-G-3,5 P20 THR - 1830715 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB headers, nominal current: 8 A, rated voltage (III/2): 160 V, nominal cross section: 1.5 mm², number of positions: 2, pitch: 3.5 mm, color: black, contact surface: Tin, mounting: THR soldering, solder pin [P]: 1.9 mm The figure shows a 10-position version of the product Your advantages  Designed for integration into the SMT soldering process  Vertical connection enables multi-row arrangement on the PCB  Inverted header with socket contacts for touch-proof device outputs or PCB/PCB connections Key Commercial Data Packing unit 1 pc Minimum order quantity 50 pc GTIN GTIN 4046356887885 Weight per Piece (excluding packing) 0.800 g Custom tariff number 85366930 Country of origin Germany Technical data Dimensions Length [ l ] 6.3 mm Width 7.8 mm Pitch 3.5 mm Dimension a 3.5 mm 01/17/2020   Page 1 / 6 https://www.phoenixcontact.com/us/products/1830715 Feed-through header - IMCV 1,5/ 2-G-3,5 P20 THR - 1830715 Technical data Dimensions Width [ w ] 7.8 mm Height [ h ] 16.35 mm Height 14.45 mm Length of the solder pin 1.9 mm Pin dimensions 0.62 x 1.12 mm Pin spacing 3.81 mm Length 6.3 mm General Range of articles IMCV 1,5/..-G-THR Insulating material group IIIa Rated surge voltage (III/3) 2.5 kV Rated surge voltage (III/2) 2.5 kV Rated surge voltage (II/2) 2.5 kV Rated voltage (III/3) 160 V Rated voltage (III/2) 160 V Rated voltage (II/2) 320 V Connection in acc. with standard EN-VDE Nominal current IN 8A Maximum load current 8A Insulating material LCP Flammability rating according to UL 94 V0 Color black Number of positions 2 Standards and Regulations Connection in acc. with standard EN-VDE CUL Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings 01/17/2020   Page 2 / 6 https://www.phoenixcontact.com/us/products/1830715 Feed-through header - IMCV 1,5/ 2-G-3,5 P20 THR - 1830715 Drilling diagram Diagram Type: IMC(V) 1,5/...-G-3,5 THR with MC(V) 1,5/...-G-3,5 THR 01/17/2020   Page 3 / 6 https://www.phoenixcontact.com/us/products/1830715 Feed-through header - IMCV 1,5/ 2-G-3,5 P20 THR - 1830715 Dimensional drawing Classifications eCl@ss eCl@ss 4.0 27260700 eCl@ss 4.1 27260700 eCl@ss 5.0 27260700 eCl@ss 5.1 27260700 eCl@ss 6.0 27260700 eCl@ss 7.0 27440402 eCl@ss 8.0 27440402 eCl@ss 9.0 27440402 ETIM ETIM 4.0 EC002637 ETIM 5.0 EC002637 ETIM 6.0 EC002637 ETIM 7.0 EC002637 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 01/17/2020   Page 4 / 6 https://www.phoenixcontact.com/us/products/1830715 Feed-through header - IMCV 1,5/ 2-G-3,5 P20 THR - 1830715 Classifications UNSPSC UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 UNSPSC 18.0 39121409 UNSPSC 19.0 39121409 UNSPSC 20.0 39121409 UNSPSC 21.0 39121409 Approvals Approvals Approvals IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized Ex Approvals Approval details IECEE CB Scheme    http://www.iecee.org/     Nominal voltage UN 160 V Nominal current IN 8A VDE Gutachten mit Fertigungsüberwachung    http://www2.vde.com/de/Institut/Online-Service/ VDE-gepruefteProdukte/Seiten/Online-Suche.aspx     Nominal voltage UN 160 V Nominal current IN 8A EAC      DE1-60987-B1B2  40011723  B.01742 01/17/2020   Page 5 / 6 https://www.phoenixcontact.com/us/products/1830715 Feed-through header - IMCV 1,5/ 2-G-3,5 P20 THR - 1830715 Approvals cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   B D Nominal voltage UN 300 V 300 V Nominal current IN 8A 8A  E60425-20110128 Phoenix Contact 2020 © - all rights reserved http://www.phoenixcontact.com 01/17/2020   Page 6 / 6
