1837035

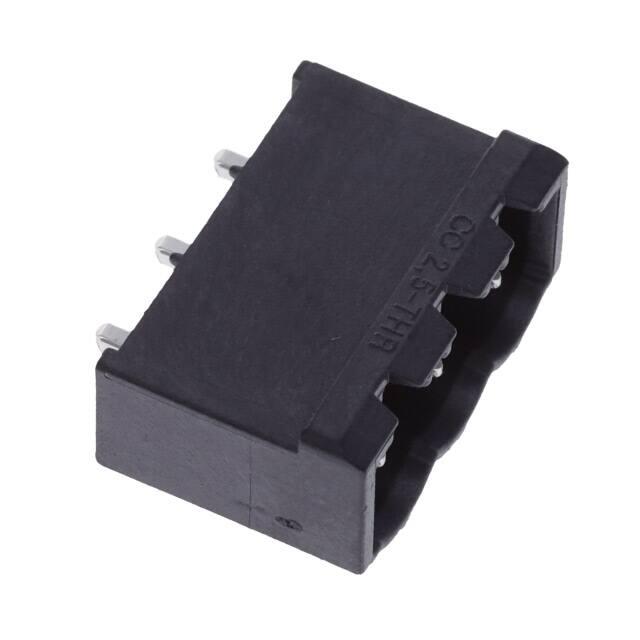

https://www.phoenixcontact.com/us/products/1837035 Printed-circuit board connector - CCVA 2,5/ 3-G P20 THR - 1837035 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) PCB headers, nominal current: 12 A, number of positions: 3, pitch: 5 mm, color: black, contact surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology can be found under “Downloads” The figure shows a 10-position version of the product Your advantages  Designed for integration into the SMT soldering process  Maximum flexibility when it comes to device design – one header for connectors with different connection technologies  Closed contour for optimum stability of the plug-in connection Key Commercial Data Packing unit 1 pc Minimum order quantity 50 pc GTIN GTIN 4055626021423 Weight per Piece (excluding packing) 1.600 g Custom tariff number 85366930 Country of origin Germany Technical data Dimensions Length [ l ] 8.57 mm Width 17.8 mm Pitch 5 mm Dimension a 55 mm 09/10/2019   Page 1 / 5 https://www.phoenixcontact.com/us/products/1837035 Printed-circuit board connector - CCVA 2,5/ 3-G P20 THR - 1837035 Technical data Dimensions Width [ w ] 17.8 mm Height [ h ] 14 mm Height 12 mm Length of the solder pin 2 mm Pin dimensions 1 x 1 mm Length 8.57 mm General Range of articles CCVA 2,5/..-G Insulating material group IIIa Rated surge voltage (III/3) 4 kV Rated surge voltage (III/2) 4 kV Rated surge voltage (II/2) 4 kV Rated voltage (III/3) 250 V Rated voltage (III/2) 320 V Rated voltage (II/2) 400 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Maximum load current 12 A (per position) Insulating material LCP Flammability rating according to UL 94 V0 Color black Number of positions 3 Packaging information Type of packaging packed in cardboard Pieces per package 50 Denomination packing units Pcs. Standards and Regulations Connection in acc. with standard EN-VDE Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings 09/10/2019   Page 2 / 5 https://www.phoenixcontact.com/us/products/1837035 Printed-circuit board connector - CCVA 2,5/ 3-G P20 THR - 1837035 Diagram Type: MSTB 2,5/...-ST with CCVA 2,5/...-G P20 THR Classifications eCl@ss eCl@ss 4.0 27260700 eCl@ss 4.1 27260700 eCl@ss 5.0 27260700 eCl@ss 5.1 27260700 eCl@ss 6.0 27260700 eCl@ss 7.0 27440402 eCl@ss 8.0 27440402 eCl@ss 9.0 27440402 ETIM ETIM 5.0 EC002637 ETIM 6.0 EC002637 ETIM 7.0 EC002637 UNSPSC UNSPSC 13.2 39121409 09/10/2019   Page 3 / 5 https://www.phoenixcontact.com/us/products/1837035 Printed-circuit board connector - CCVA 2,5/ 3-G P20 THR - 1837035 Approvals Approvals Approvals cULus Recognized / EAC Ex Approvals Approval details cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   B D Nominal voltage UN 300 V 300 V Nominal current IN 16 A 10 A EAC      E60425-19931011  B.01742 Accessories Accessories Coding element Coding section - CR-MSTB - 1734401 Coding section, inserted into the recess in the header or the inverted plug, red insulating material     Coding section - CR-MSTB NAT HT - 1954362 HT coding section, prior to the reflow soldering process it is inserted into the recess on the header, made from hightemperature-resistant beige insulation material     09/10/2019   Page 4 / 5 https://www.phoenixcontact.com/us/products/1837035 Printed-circuit board connector - CCVA 2,5/ 3-G P20 THR - 1837035 Accessories Marker pen Marker pen - B-STIFT - 1051993 Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm     Phoenix Contact 2019 © - all rights reserved http://www.phoenixcontact.com 09/10/2019   Page 5 / 5
