1837064

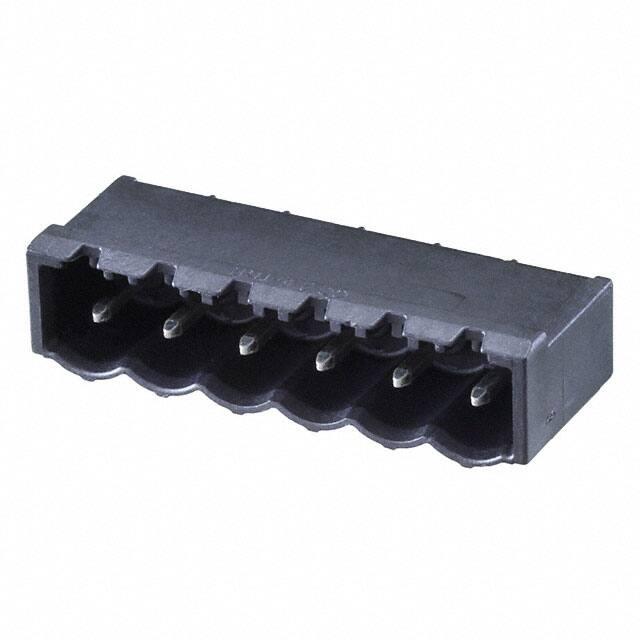

CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 Please be informed that the data shown in this PDF document is generated from our online catalog. Please find the complete data in the user documentation. Our general terms of use for downloads are valid. PCB headers, nominal cross section: 2.5 mm2, color: black, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Pin, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: CCVA 2,5/..-G, pitch: 5 mm, mounting: THR soldering, pin layout: Linear pinning, solder pin [P]: 2 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard, For user information and design recommendations for through-hole reflow technology, go to: Downloads Your advantages • Designed for integration into the SMT soldering process • Maximum flexibility when it comes to device design – one header for connectors with different connection technologies • Closed contour for optimum stability of the plug-in connection Commercial data Item number 1837064 Packing unit 1 pc Minimum order quantity 50 pc Sales key AA03 Product key AACTAC GTIN 4055626021454 Weight per piece (including packing) 2.568 g Weight per piece (excluding packing) 2.23 g Customs tariff number 85366930 Country of origin DE Jan 8, 2024, 9:53 AM Page 1 (19) CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 Technical data Product properties Type Component suitable for through hole reflow Product line COMBICON Connectors M Product type PCB headers Product family CCVA 2,5/..-G Number of positions 6 Pitch 5 mm Number of connections 6 Number of rows 1 Mounting flange without Number of potentials 6 Pin layout Linear pinning Solder pins per potential 1 Electrical properties Nominal current IN 12 A Nominal voltage UN 320 V Degree of pollution 3 Contact resistance 1.2 mΩ Rated voltage (III/3) 250 V Rated surge voltage (III/3) 4 kV Rated voltage (III/2) 320 V Rated surge voltage (III/2) 4 kV Rated voltage (II/2) 400 V Rated surge voltage (II/2) 4 kV Mounting Mounting type THR soldering Pin layout Linear pinning Processing notes Process Reflow/wave soldering Moisture Sensitive Level MSL 1 Classification temperature Tc 260 °C Solder cycles in the reflow 3 Material specifications Material data - contact Note WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 Contact material Cu alloy Surface characteristics Tin-plated Jan 8, 2024, 9:53 AM Page 2 (19) CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 Metal surface contact area (top layer) Tin (3 - 5 µm Sn) Metal surface contact area (middle layer) Nickel (1.3 - 3 µm Ni) Metal surface soldering area (top layer) Tin (3 - 5 µm Sn) Metal surface soldering area (middle layer) Nickel (1.3 - 3 µm Ni) Material data - housing Color (Housing) black (9005) Insulating material LCP Insulating material group IIIa CTI according to IEC 60112 175 Flammability rating according to UL 94 V0 Notes Details for soldering processes Processing using reflow processes in compliance with IEC 60068-2-58 or DIN EN 61760-1 (latest version) Moisture Sensitive Level (MSL) = 1 according to IPC/JEDEC JSTD-020-C Notes on operation In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. Dimensions Dimensional drawing Pitch 5 mm Width [w] 32.8 mm Height [h] 14 mm Length [l] 8.57 mm Installed height 12 mm Solder pin length [P] 2 mm Pin dimensions 1 x 1 mm PCB design Hole diameter 1.6 mm Mechanical tests Visual inspection Specification IEC 60512-1-1:2002-02 Result Test passed Dimension check Specification IEC 60512-1-2:2002-02 Result Test passed Resistance of inscriptions Specification IEC 60068-2-70:1995-12 Result Test passed Polarization and coding Jan 8, 2024, 9:53 AM Page 3 (19) CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 Specification IEC 60512-13-5:2006-02 Result Test passed Contact holder in insert Specification IEC 60512-15-1:2008-05 Contact holder in insert Requirements >20 N Test passed Insertion and withdrawal forces Result Test passed No. of cycles 25 Insertion strength per pos. approx. 8N Withdraw strength per pos. approx. 6N Electrical tests Thermal test | Test group C Specification IEC 60512-5-1:2002-02 Tested number of positions 24 Insulation resistance Specification IEC 60512-3-1:2002-02 Insulation resistance, neighboring positions > 5 MΩ Air clearances and creepage distances | Specification IEC 60664-1:2007-04 Insulating material group IIIa Comparative tracking index (IEC 60112) CTI 175 Rated insulation voltage (III/3) 250 V Rated surge voltage (III/3) 4 kV minimum clearance value - non-homogenous field (III/3) 3 mm minimum creepage distance (III/3) 4 mm Rated insulation voltage (III/2) 320 V Rated surge voltage (III/2) 4 kV minimum clearance value - non-homogenous field (III/2) 3 mm minimum creepage distance (III/2) 3.2 mm Rated insulation voltage (II/2) 400 V Rated surge voltage (II/2) 4 kV minimum clearance value - non-homogenous field (II/2) 3 mm minimum creepage distance (II/2) 4 mm Environmental and real-life conditions Vibration test Specification IEC 60068-2-6:2007-12 Frequency 10 - 150 - 10 Hz Sweep speed 1 octave/min Jan 8, 2024, 9:53 AM Page 4 (19) CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 Amplitude 0.35 mm (10 Hz ... 60.1 Hz) Sweep speed 5g (60.1 Hz ... 150 Hz) Test duration per axis 2.5 h Durability test Specification IEC 60512-9-1:2010-03 Impulse withstand voltage at sea level 4.8 kV Contact resistance R1 1.2 mΩ Contact resistance R2 1.2 mΩ Insertion/withdrawal cycles 25 Insulation resistance, neighboring positions > 5 MΩ Climatic test Specification ISO 6988:1985-02 Corrosive stress 0.2 dm3 SO2 on 300 dm3/40 °C/1 cycle Thermal stress 100 °C/168  h Power-frequency withstand voltage 2.21 kV Ambient conditions Ambient temperature (operation) -40 °C ... 100 °C (dependent on the derating curve) Ambient temperature (storage/transport) -40 °C ... 70 °C Relative humidity (storage/transport) 30 % ... 70 % Ambient temperature (assembly) -5 °C ... 100 °C Packaging specifications Type of packaging packed in cardboard Jan 8, 2024, 9:53 AM Page 5 (19) CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 Drawings Current strength [A] Diagram 24 22 20 18 16 14 12 10 = 2-pos. 8 = 5-pos. 6 = 12-pos. 4 2  = 24-pos. 0 0 10 20 30  40 50 60 70 80 90 100 110 Ambient temperature [°C] Type: MSTB 2,5/...-ST with CCVA 2,5/...-G P20 THR Jan 8, 2024, 9:53 AM Page 6 (19) CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 Approvals To download certificates, visit the product detail page: https://www.phoenixcontact.com/us/products/1837064  cULus Recognized Approval ID: E60425-19931011 Nominal voltage UN Nominal current IN Cross section AWG Cross section mm2 300 V 16 A - - Standard 300 V 10 A - - Alternative 1 150 V 15 A - - Use group B Standard Use group D Jan 8, 2024, 9:53 AM Page 7 (19) CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 Classifications ECLASS ECLASS-11.0 27460201 ECLASS-12.0 27460201 ECLASS-13.0 27460201 ETIM ETIM 9.0 EC002637 UNSPSC UNSPSC 21.0 39121400 Jan 8, 2024, 9:53 AM Page 8 (19) CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 Environmental product compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Jan 8, 2024, 9:53 AM Page 9 (19) CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 Accessories CR-MSTB NAT HT - Coding section 1954362 https://www.phoenixcontact.com/us/products/1954362 HT coding section, prior to the reflow soldering process it is inserted into the recess on the header, made from high-temperature-resistant beige insulation material TVFKC 1,5/ 6-ST - PCB connector 1713871 https://www.phoenixcontact.com/us/products/1713871 PCB connector, nominal cross section: 1.5 mm 2 , color: green, nominal current: 10 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 12, product range: TVFKC 1,5/..-ST, pitch: 5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard Jan 8, 2024, 9:53 AM Page 10 (19) CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 TVFKCL 1,5/ 6-ST - PCB connector 1715963 https://www.phoenixcontact.com/us/products/1715963 PCB connector, nominal cross section: 1.5 mm 2 , color: green, nominal current: 10 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 12, product range: TVFKCL 1,5/..-ST, pitch: 5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard QC 1,5/ 6-ST - PCB connector 1718009 https://www.phoenixcontact.com/us/products/1718009 PCB connector, nominal cross section: 1.5 mm 2 , color: green, nominal current: 12 A, rated voltage (III/2): 630 V, contact surface: Tin, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: QC 1,5/..-ST, pitch: 5 mm, connection method: Displacement connection, conductor/PCB connection direction: 0 °, locking clip: Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard Jan 8, 2024, 9:53 AM Page 11 (19) CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 FKCN 2,5/ 6-ST - PCB connector 1732784 https://www.phoenixcontact.com/us/products/1732784 PCB connector, nominal cross section: 2.5 mm 2 , color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: FKCN 2,5/..-ST, pitch: 5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard MSTB 2,5/ 6-ST - PCB connector 1754520 https://www.phoenixcontact.com/us/products/1754520 PCB connector, nominal cross section: 2.5 mm 2 , color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: MSTB 2,5/..-ST, pitch: 5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard Jan 8, 2024, 9:53 AM Page 12 (19) CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 MSTBP 2,5/ 6-ST - PCB connector 1765810 https://www.phoenixcontact.com/us/products/1765810 PCB connector, nominal cross section: 2.5 mm 2 , color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: MSTBP 2,5/..-ST, pitch: 5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard SMSTB 2,5/ 6-ST - PCB connector 1768804 https://www.phoenixcontact.com/us/products/1768804 PCB connector, nominal cross section: 2.5 mm 2 , color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: SMSTB 2,5/..-ST, pitch: 5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: -45 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard Jan 8, 2024, 9:53 AM Page 13 (19) CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 FRONT-MSTB 2,5/ 6-ST - PCB connector 1779453 https://www.phoenixcontact.com/us/products/1779453 PCB connector, nominal cross section: 2.5 mm 2 , color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: FRONT-MSTB 2,5/..-ST, pitch: 5 mm, connection method: Front screw connection, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard MSTBT 2,5/ 6-ST - PCB connector 1779877 https://www.phoenixcontact.com/us/products/1779877 PCB connector, nominal cross section: 2.5 mm 2 , color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: MSTBT 2,5/..-ST, pitch: 5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 0 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard Jan 8, 2024, 9:53 AM Page 14 (19) CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 MVSTBR 2,5/ 6-ST - PCB connector 1792058 https://www.phoenixcontact.com/us/products/1792058 PCB connector, nominal cross section: 2.5 mm 2 , color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: MVSTBR 2,5/..-ST, pitch: 5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: 90 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard MVSTBW 2,5/ 6-ST - PCB connector 1792566 https://www.phoenixcontact.com/us/products/1792566 PCB connector, nominal cross section: 2.5 mm 2 , color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: MVSTBW 2,5/..-ST, pitch: 5 mm, connection method: Screw connection with tension sleeve, screw head form: L Slotted, conductor/PCB connection direction: -90 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard Jan 8, 2024, 9:53 AM Page 15 (19) CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 FKCT 2,5/ 6-ST - PCB connector 1909252 https://www.phoenixcontact.com/us/products/1909252 PCB connector, nominal cross section: 2.5 mm 2 , color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: FKCT 2,5/..-ST, pitch: 5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard FKCVR 2,5/ 6-ST - PCB connector 1909757 https://www.phoenixcontact.com/us/products/1909757 PCB connector, nominal cross section: 2.5 mm 2 , color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: FKCVR 2,5/..-ST, pitch: 5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 90 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard Jan 8, 2024, 9:53 AM Page 16 (19) CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 FKCVW 2,5/ 6-ST - PCB connector 1910076 https://www.phoenixcontact.com/us/products/1910076 PCB connector, nominal cross section: 2.5 mm 2 , color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: FKCVW 2,5/..-ST, pitch: 5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: -90 °, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard FKC 2,5/ 6-ST - PCB connector 1910393 https://www.phoenixcontact.com/us/products/1910393 PCB connector, nominal cross section: 2.5 mm 2 , color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: FKC 2,5/..-ST, pitch: 5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard Jan 8, 2024, 9:53 AM Page 17 (19) CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 QC 1/ 6-ST-BUS - PCB connector 1921719 https://www.phoenixcontact.com/us/products/1921719 PCB connector, nominal cross section: 1 mm2, color: green, nominal current: 10 A, rated voltage (III/2): 630 V, contact surface: Tin, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: QC 1/.. -ST-BUS, pitch: 5 mm, connection method: Displacement connection, conductor/PCB connection direction: 90 °, locking clip: - Locking clip, plugin system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard, The plug allows conductors to be looped through from module to module, without interruption FKCS 2,5/ 6-ST - PCB connector 1974779 https://www.phoenixcontact.com/us/products/1974779 PCB connector, nominal cross section: 2.5 mm 2 , color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Socket, number of potentials: 6, number of rows: 1, number of positions: 6, number of connections: 6, product range: FKCS 2,5/..-ST, pitch: 5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, locking clip: Locking clip, plug-in system: COMBICON MSTB 2,5, locking: without, mounting: without, type of packaging: packed in cardboard Jan 8, 2024, 9:53 AM Page 18 (19) CCVA 2,5/ 6-G P20 THR - PCB header 1837064 https://www.phoenixcontact.com/us/products/1837064 Phoenix Contact 2024 © - all rights reserved https://www.phoenixcontact.com Phoenix Contact USA 586 Fulling Mill Road Middletown, PA 17057, United States (+717) 944-1300 info@phoenixcon.com Jan 8, 2024, 9:53 AM Page 19 (19)
