MC 1,5/ 2-ST-3,5
Order No.: 1840366
The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1840366

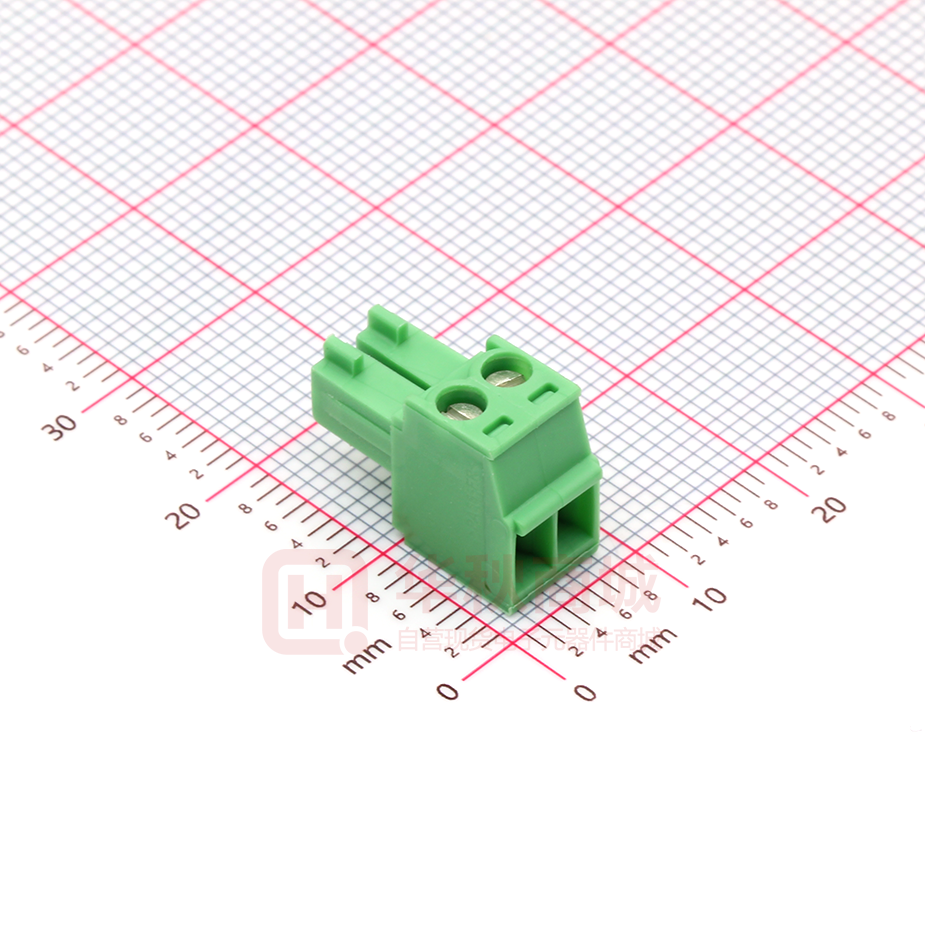

Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch:
3.5 mm, Number of positions: 2, Connection type: Screw connection,
Color: green
Product notes
WEEE/RoHS-compliant since:
01/01/2003
Commercial data
EAN
4017918111564
Pack
50 pcs.
Customs tariff
85366990
Weight/Piece
0.001565 KG
Catalog page information
Page 142 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions / positions
Pitch
3.5 mm
Dimension a
3.5 mm
Number of positions
2
Screw thread
M2
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Mar 11, 2010
MC 1,5/ 2-ST-3,5 Order No.: 1840366
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1840366
Tightening torque, min
0.22 Nm
Tightening torque max
0.25 Nm
Technical data
Insulating material group
I
Rated surge voltage (III/3)
2.5 kV
Rated surge voltage (III/2)
2.5 kV
Rated surge voltage (II/2)
2.5 kV
Rated voltage (III/2)
160 V
Rated voltage (II/2)
320 V
Connection in acc. with standard
EN-VDE
Nominal current IN
8A
Nominal voltage UN
160 V
Nominal cross section
1.5 mm²
Maximum load current
8 A (with 1.5 mm conductor cross section)
Insulating material
PA
Inflammability class acc. to UL 94
V0
Internal cylindrical gage
A1
Stripping length
7 mm
2
Connection data
Conductor cross section solid min.
0.14 mm²
Conductor cross section solid max.
1.5 mm²
Conductor cross section stranded min.
0.14 mm²
Conductor cross section stranded max.
1.5 mm²
Conductor cross section stranded, with ferrule
without plastic sleeve min.
0.25 mm²
Conductor cross section stranded, with ferrule
without plastic sleeve max.
1.5 mm²
Conductor cross section stranded, with ferrule
with plastic sleeve min.
0.25 mm²
Conductor cross section stranded, with ferrule
with plastic sleeve max.
0.5 mm²
Conductor cross section AWG/kcmil min.
28
Conductor cross section AWG/kcmil max
16
2 conductors with same cross section, solid min.
0.08 mm²
2 conductors with same cross section, solid max.
0.5 mm²
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Mar 11, 2010
MC 1,5/ 2-ST-3,5 Order No.: 1840366
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1840366
2 conductors with same cross section, stranded
min.
0.08 mm²
2 conductors with same cross section, stranded
max.
0.75 mm²
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
0.25 mm²
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
0.34 mm²
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
0.5 mm²
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
0.5 mm²
Certificates / Approvals
Certification
CB, CSA, CUL, GOST, UL, VDE-PZI
CSA
Nominal voltage UN
300 V
Nominal current IN
8A
AWG/kcmil
28-16
CUL
Nominal voltage UN
300 V
Nominal current IN
8A
AWG/kcmil
30-14
UL
Nominal voltage UN
300 V
Nominal current IN
8A
AWG/kcmil
30-14
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Mar 11, 2010
MC 1,5/ 2-ST-3,5 Order No.: 1840366
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1840366
Accessories
Item
Designation
Description
SK 3,5/2,8:FORTL.ZAHLEN
Marker card, printed horizontally, self-adhesive, 10-section marker
strip, 14 identical decades marked 1-10, 11-20 etc. up to 91-100,
sufficient for 140 terminal blocks
SZS 0,4X2,5
Screwdriver, bladed, matches all screw terminal blocks up to 1.5
mm² connection cross section, blade: 0.4 x 2.5 mm
Marking
0804073
Tools
1205037
Additional products
Item
Designation
Description
1897092
EMC 1,5/ 2-G-3,5
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5
mm, Number of positions: 2, Color: green, Assembly: Press-in
1911017
EMCV 1,5/ 2-G-3,5
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5
mm, Number of positions: 2, Color: green, Assembly: Press-in
1844210
MC 1,5/ 2-G-3,5
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5
mm, Number of positions: 2, Color: green, Assembly: Soldering
1843606
MCV 1,5/ 2-G-3,5
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5
mm, Number of positions: 2, Color: green, Assembly: Soldering
General
Diagrams/Drawings
Dimensioned drawing
