1840447

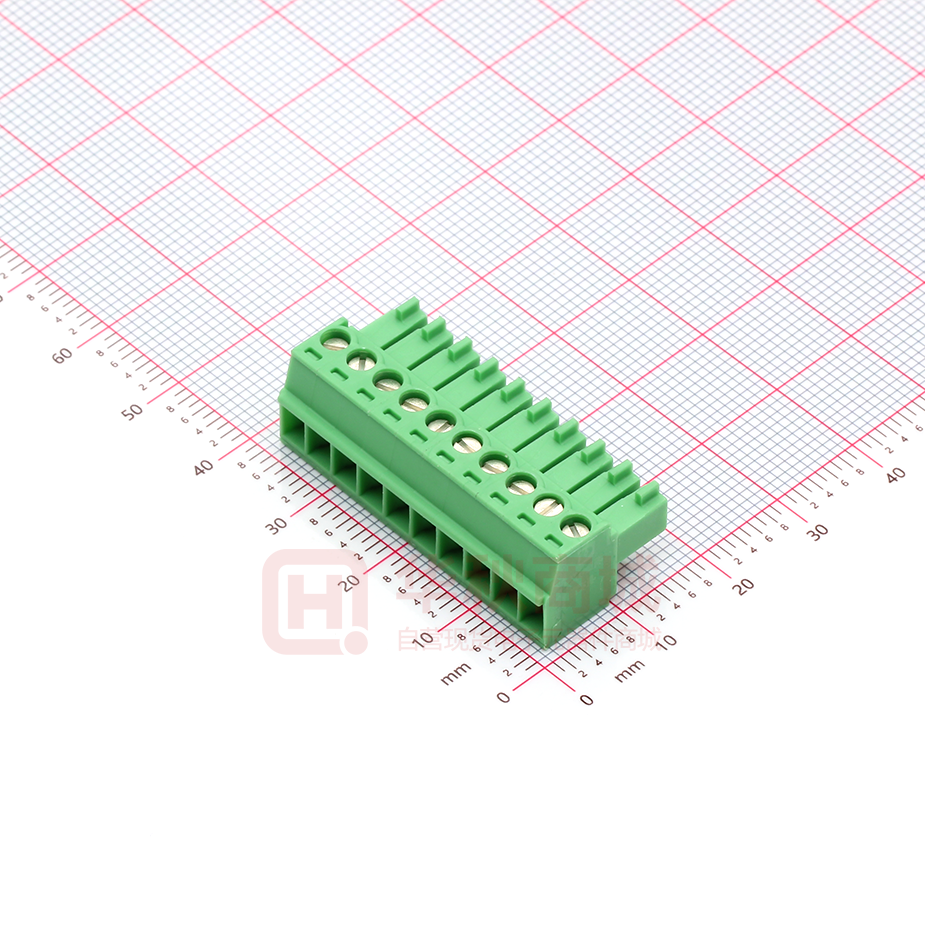

Extract from the online catalog     MC 1,5/10-ST-3,5 Order No.: 1840447 The figure shows a 10-position version of the product http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1840447   Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 10, Connection type: Screw connection, Color: green   Product notes WEEE/RoHS-compliant since: 01/01/2003 Commercial data EAN 4017918052119 Pack 50 pcs. Customs tariff 85366990 Weight/Piece 0.00725 KG Catalog page information Page 142 (CC-2009) http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. Technical data Dimensions / positions Pitch 3.5 mm Dimension a 31.5 mm Number of positions 10 Screw thread M2 PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 1 / 5 Mar 11, 2010 MC 1,5/10-ST-3,5 Order No.: 1840447 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1840447 Tightening torque, min 0.22 Nm Tightening torque max 0.25 Nm Technical data Insulating material group I Rated surge voltage (III/3) 2.5 kV Rated surge voltage (III/2) 2.5 kV Rated surge voltage (II/2) 2.5 kV Rated voltage (III/2) 160 V Rated voltage (II/2) 320 V Connection in acc. with standard EN-VDE Nominal current IN 8A Nominal voltage UN 160 V Nominal cross section 1.5 mm² Maximum load current 8 A (with 1.5 mm conductor cross section) Insulating material PA Inflammability class acc. to UL 94 V0 Internal cylindrical gage A1 Stripping length 7 mm 2 Connection data Conductor cross section solid min. 0.14 mm² Conductor cross section solid max. 1.5 mm² Conductor cross section stranded min. 0.14 mm² Conductor cross section stranded max. 1.5 mm² Conductor cross section stranded, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section stranded, with ferrule without plastic sleeve max. 1.5 mm² Conductor cross section stranded, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section stranded, with ferrule with plastic sleeve max. 0.5 mm² Conductor cross section AWG/kcmil min. 28 Conductor cross section AWG/kcmil max 16 2 conductors with same cross section, solid min. 0.08 mm² 2 conductors with same cross section, solid max. 0.5 mm² PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 2 / 5 Mar 11, 2010 MC 1,5/10-ST-3,5 Order No.: 1840447 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1840447 2 conductors with same cross section, stranded min. 0.08 mm² 2 conductors with same cross section, stranded max. 0.75 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. 0.25 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. 0.34 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. 0.5 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. 0.5 mm² Certificates / Approvals Certification CB, CSA, CUL, GOST, UL, VDE-PZI CSA Nominal voltage UN 300 V Nominal current IN 8A AWG/kcmil 28-16 CUL Nominal voltage UN 300 V Nominal current IN 8A AWG/kcmil 30-14 UL Nominal voltage UN 300 V Nominal current IN 8A AWG/kcmil 30-14 PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 3 / 5 Mar 11, 2010 MC 1,5/10-ST-3,5 Order No.: 1840447 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1840447 Accessories Item Designation Description 1051993 B-STIFT Marker pen, for manual labeling of unprinted Zack strips, smearproof and waterproof, line thickness 0.5 mm 0804073 SK 3,5/2,8:FORTL.ZAHLEN Marker card, printed horizontally, self-adhesive, 10-section marker strip, 14 identical decades marked 1-10, 11-20 etc. up to 91-100, sufficient for 140 terminal blocks 0803883 SK U/2,8 WH:UNBEDRUCKT Unprinted marker cards, DIN A4 format, pitch as desired, selfadhesive, with 50 stamped marker strips, 185 mm strip length, can be labeled with the CMS system or manually with the M-PEN SZS 0,4X2,5 Screwdriver, bladed, matches all screw terminal blocks up to 1.5 mm² connection cross section, blade: 0.4 x 2.5 mm Marking Tools 1205037 Additional products Item Designation Description 1897173 EMC 1,5/10-G-3,5 Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 10, Color: green, Assembly: Press-in 1911091 EMCV 1,5/10-G-3,5 Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 10, Color: green, Assembly: Press-in 1844294 MC 1,5/10-G-3,5 Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm, Number of positions: 10, Color: green, Assembly: Soldering General Diagrams/Drawings Dimensioned drawing PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 4 / 5 Mar 11, 2010 MC 1,5/10-ST-3,5 Order No.: 1840447 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1840447 Address PHOENIX CONTACT Deutschland GmbH Flachsmarktstr. 8 32825 Blomberg,Germany Phone +49 5235 3 12000 Fax +49 5235 3 41200 http://www.phoenixcontact.de © 2010 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 5 / 5 Mar 11, 2010
