1842911

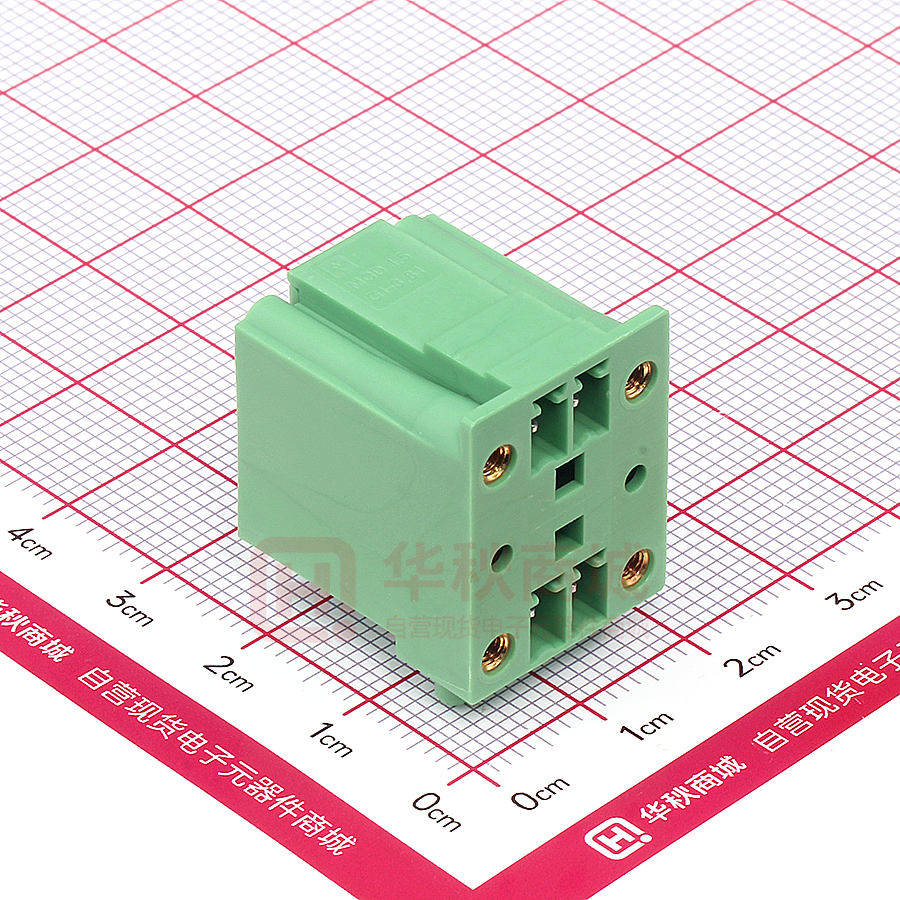

Extract from the online catalog     MCD 1,5/ 2-G1F-3,81 Order No.: 1842911 The figure shows a 10-position version of the product   Commercial data nt s. Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 2, Color: green, Assembly: Soldering co   m http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1842911 4017918112110 Pack 50 pcs. Customs tariff 85366990 Weight/Piece 0.00608 KG Catalog page information Page 183 (CC-2009) po om in ec Technical data ne EAN http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. Dimensions / positions Pitch on l Dimension a 3.81 mm 3.81 mm Number of positions 2 Pin dimensions 0,8 x 0,8 mm Hole diameter 1.2 mm Technical data Insulating material group IIIa Rated surge voltage (III/3) 2.5 kV Rated surge voltage (III/2) 2.5 kV PHOENIX CONTACT GmbH & Co. KG http://www.phoenixcontact.de Page 1 / 4 Jun 25, 2009 MCD 1,5/ 2-G1F-3,81 Order No.: 1842911 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1842911 2.5 kV Rated voltage (III/2) 160 V Rated voltage (II/2) 250 V Connection in acc. with standard EN-VDE Nominal current IN 8A Nominal voltage UN 160 V Maximum load current 8A Insulating material PBT Inflammability class acc. to UL 94 V0 m Rated surge voltage (II/2) nt s. co Certificates / Approvals CB, CSA, CUL, GOST, UL, VDE-PZI ne Certification CSA 300 V po Nominal voltage UN 8A om Nominal current IN CUL Nominal current IN UL on l Nominal voltage UN in ec Nominal voltage UN Nominal current IN PHOENIX CONTACT GmbH & Co. KG http://www.phoenixcontact.de 300 V 8A 300 V 8A Page 2 / 4 Jun 25, 2009 MCD 1,5/ 2-G1F-3,81 Order No.: 1842911 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1842911 Drawings s. co m Drilling diagram on l in ec om po ne nt Dimensioned drawing PHOENIX CONTACT GmbH & Co. KG http://www.phoenixcontact.de Page 3 / 4 Jun 25, 2009 MCD 1,5/ 2-G1F-3,81 Order No.: 1842911 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1842911 Address s. co m PHOENIX CONTACT GmbH & Co. KG Flachsmarktstr. 8 32825 Blomberg,Germany Phone +49 5235 3 00 Fax +49 5235 3 41200 http://www.phoenixcontact.de on l in ec om po ne nt © 2009 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT GmbH & Co. KG http://www.phoenixcontact.de Page 4 / 4 Jun 25, 2009
