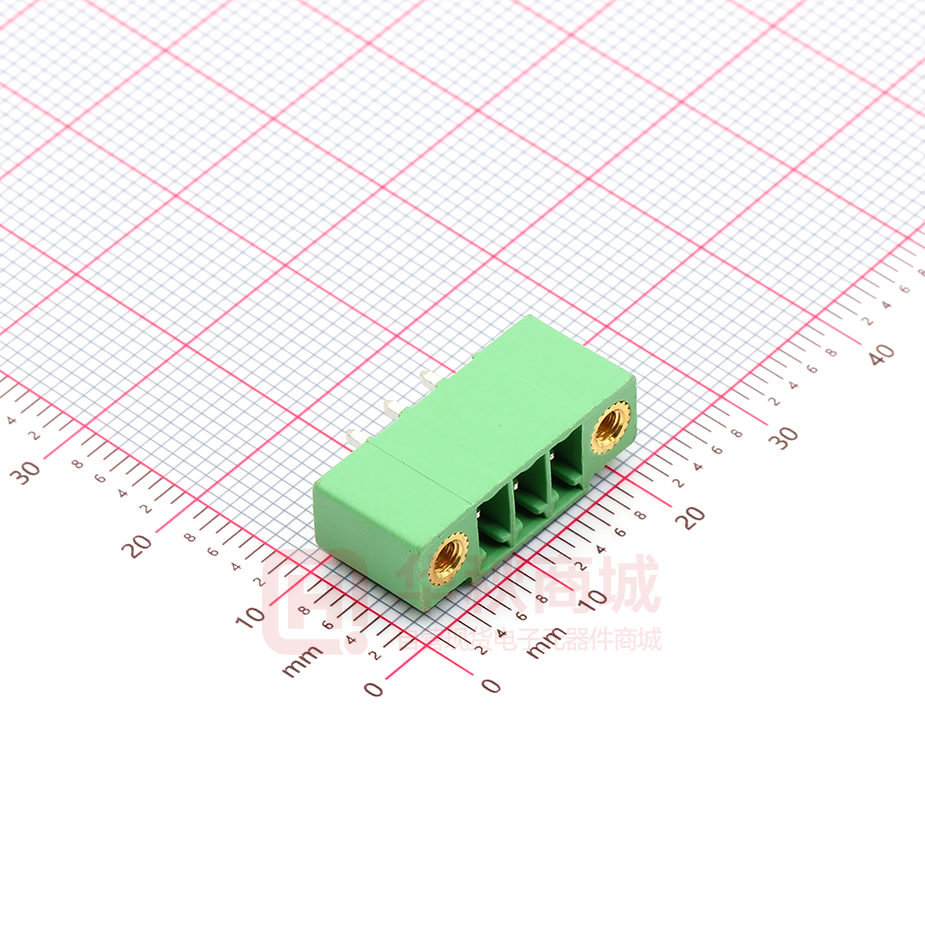

https://www.phoenixcontact.com/us/produkte/1843237 Base strip - MCV 1.5/ 3-GF-3.5 - 1843237 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 3, Pitch: 3.5 mm, Color: green, Contact surface: Tin, Assembly: Soldering The figure shows a 10-position version of the product Why buy this product  Versions with engagement noses for locking plugs with self-locking flanges  Low-profile pin strips with compact pitches   Key commercial data Packing unit 1 Minimum order quantity 50 Catalog page Page 214 (CC-2011) GTIN Custom tariff number 85366990 Country of origin GERMANY Technical data Dimensions / positions Length 7.25 mm Pitch 3.5 mm Dimension a 7 mm Number of positions 3 Pin dimensions 0,8 x 0,8 mm Hole diameter 1.2 mm Technical data Range of articles MCV 1,5/..-GF Insulating material group IIIa Rated surge voltage (III/3) 2.5 kV Rated surge voltage (III/2) 2.5 kV Rated surge voltage (II/2) 2.5 kV 02.11.2012   Page 1 / 5 https://www.phoenixcontact.com/us/produkte/1843237 Base strip - MCV 1.5/ 3-GF-3.5 - 1843237 Technical data Technical data Rated voltage (III/2) 160 V Rated voltage (II/2) 250 V Connection in acc. with standard EN-VDE Nominal current IN 8A Nominal voltage UN 160 V Maximum load current 8A Insulating material PBT Inflammability class according to UL 94 V0 Color green Nominal voltage, UL/CUL Use Group B 300 V Nominal current, UL/CUL Use Group B 8A Nominal voltage, UL/CUL Use Group D 300 V Nominal current, UL/CUL Use Group D 8A Classifications eclass eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 etim ETIM 3.0 EC001121 ETIM 4.0 EC002637 ETIM 5.0 EC002637 unspsc UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals CSA / UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / GOST / IECEE CB Scheme / GOST / cULus Recognized 02.11.2012   Page 2 / 5 https://www.phoenixcontact.com/us/produkte/1843237 Base strip - MCV 1.5/ 3-GF-3.5 - 1843237 Approvals Ex Approvals Approvals submitted Approval details CSA    B D Nominal current IN 8A 8A Nominal voltage UN 300 V 300 V   B D Nominal current IN 8A 8A Nominal voltage UN 300 V 300 V UL Recognized  VDE Gutachten mit Fertigungsüberwachung      Nominal current IN 8A Nominal voltage UN 160 V cUL Recognized    B D Nominal current IN 8A 8A Nominal voltage UN 300 V 300 V GOST  02.11.2012   Page 3 / 5 https://www.phoenixcontact.com/us/produkte/1843237 Base strip - MCV 1.5/ 3-GF-3.5 - 1843237 Approvals IECEE CB Scheme      Nominal current IN 8A Nominal voltage UN 160 V GOST  cULus Recognized  Accessories Accessories Marking Marker cards - SK 3,5/2,8:FORTL.ZAHLEN - 0804073 Marker cards, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 99, Mounting type: Adhesive, For terminal block width: 3.5 mm     Plug/Adapter Coding profile - CP-MSTB - 1734634 Keying profile, is inserted into the slot on the plug or inverted header, red insulating material     Additional products Printed-circuit board connector - MC 1,5/ 3-STF-3,5 - 1847068 Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 3, Pitch: 3.5 mm, Connection method: Screw connection, Color: green, Contact surface: Tin     02.11.2012   Page 4 / 5 https://www.phoenixcontact.com/us/produkte/1843237 Base strip - MCV 1.5/ 3-GF-3.5 - 1843237 Accessories Printed-circuit board connector - MCVW 1,5/ 3-STF-3,5 - 1863013 Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 3, Pitch: 3.5 mm, Connection method: Screw connection, Color: green, Contact surface: Tin     Printed-circuit board connector - MCVR 1,5/ 3-STF-3,5 - 1863314 Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 3, Pitch: 3.5 mm, Connection method: Screw connection, Color: green, Contact surface: Tin     Drawings Diagram a 4,3 3 Ø2,4 6,9 Ø1,2 Current carrying capacity [A] Drilling diagram 16 14 12 10 8 6 4 2 0 2 1 1 = 2-pos. 2 = 5-pos. 3 = 12-pos. 4 = 20-pos. 0 20 3 4 40 60 80 100 Ambient temperature [°C] Dimensioned drawing 11,1 3,5 9,2 18,7 a+13,8 3 7,25 4,3 3,5 a © Phoenix Contact 2012 - all rights reserved http://www.phoenixcontact.com 02.11.2012   Page 5 / 5
