Base strip - MC 1,5/ 8-GF-3,5 - 1843855
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 8, Pitch: 3.5 mm, Color: green,
Contact surface: Tin, Mounting: Soldering

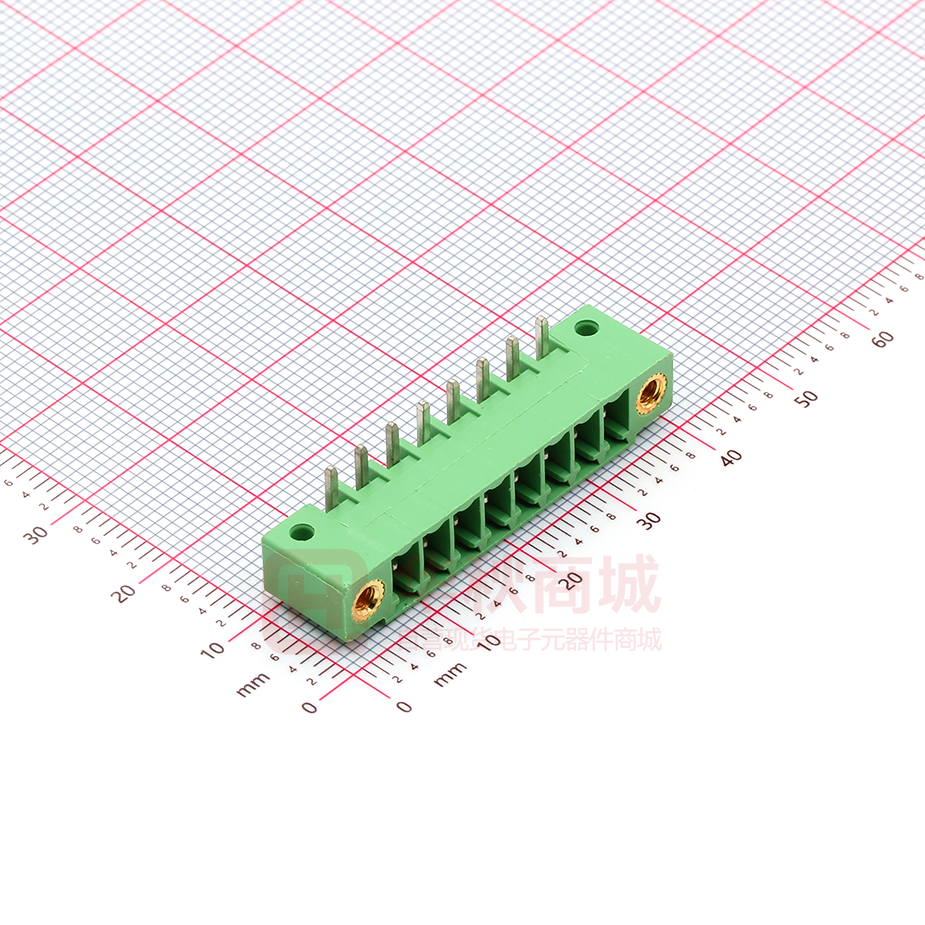

The figure shows a 10-position
version of the product
Product Features
Versions with engagement noses for locking plugs with self-locking flanges
Plug-in direction parallel and vertical to the PCB
Low-profile pin strips with compact pitches
Individual position coding by inserting coding profiles
Key Commercial Data
Packing unit
1 pc
GTIN
Weight per Piece (excluding packing)
3.13 g
Custom tariff number
85366990
Country of origin
Germany
Technical data
Dimensions
Length
9.2 mm
Pitch
3.50 mm
Dimension a
24.5 mm
Constructional height
8 mm
Length of the solder pin
3.4 mm
Pin dimensions
0,8 x 0,8 mm
Hole diameter
1.2 mm
11/25/2015 Page 1 / 7
https://www.phoenixcontact.com/us/products/1843855
Base strip - MC 1,5/ 8-GF-3,5 - 1843855
Technical data
General
Range of articles
MC 1,5/..-GF
Insulating material group
IIIa
Rated surge voltage (III/3)
2.5 kV
Rated surge voltage (III/2)
2.5 kV
Rated surge voltage (II/2)
2.5 kV
Rated voltage (III/3)
160 V
Rated voltage (III/2)
160 V
Rated voltage (II/2)
250 V
Connection in acc. with standard
EN-VDE
Nominal current IN
8A
Maximum load current
8A
Insulating material
PBT
Flammability rating according to UL 94
V0
Color
green
Number of positions
8
Standards and Regulations
Connection in acc. with standard
EN-VDE
CSA
Flammability rating according to UL 94
V0
Classifications
eCl@ss
eCl@ss 4.0
272607xx
eCl@ss 4.1
27260701
eCl@ss 5.0
27260701
eCl@ss 5.1
27260701
eCl@ss 6.0
27260704
eCl@ss 7.0
27440402
eCl@ss 8.0
27440402
ETIM
ETIM 3.0
EC001121
ETIM 4.0
EC002637
ETIM 5.0
EC002637
11/25/2015 Page 2 / 7
https://www.phoenixcontact.com/us/products/1843855
Base strip - MC 1,5/ 8-GF-3,5 - 1843855
Classifications
UNSPSC
UNSPSC 6.01
30211810
UNSPSC 7.0901
39121409
UNSPSC 11
39121409
UNSPSC 12.01
39121409
UNSPSC 13.2
39121409
Approvals
Approvals
Approvals
CSA / VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / CCA / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
CSA
B
D
Nominal current IN
8A
8A
Nominal voltage UN
300 V
300 V
VDE Gutachten mit Fertigungsüberwachung
Nominal current IN
8A
Nominal voltage UN
160 V
11/25/2015 Page 3 / 7
https://www.phoenixcontact.com/us/products/1843855
Base strip - MC 1,5/ 8-GF-3,5 - 1843855
Approvals
IECEE CB Scheme
Nominal current IN
8A
Nominal voltage UN
160 V
CCA
Nominal current IN
8A
Nominal voltage UN
160 V
EAC
cULus Recognized
B
D
Nominal current IN
8A
8A
Nominal voltage UN
300 V
300 V
Drawings
16
14
12
10
8
6
4
2
0
Dimensional drawing
18,7
a+13,8
0
10
20
30
40
50
60
70
80
90 100 110
Ambient temperature [°C]
7,1
8
3,4
= 2-pos.
= 5-pos.
= 12-pos.
= 20-pos.
7,25
9,2
11,1
Current strength [A]
Diagram
3,5
4,3
a
Type: FK-MCP 1,5/...-STF-3,5 with MC 1,5/...-GF-3,5
11/25/2015 Page 4 / 7
https://www.phoenixcontact.com/us/products/1843855
Base strip - MC 1,5/ 8-GF-3,5 - 1843855
Drilling diagram
Diagram
Current strength [A]
a
2,4
6,9
8
0,9
4,3
16
14
12
10
8
6
4
2
0
= 2-pos.
= 5-pos.
= 10-pos.
0
1,2
20
40
60
80
100
Ambient temperature [°C]
Type: TFMC 1,5/...-STF-3,5 with MC 1,5/...-GF-3,5
Current strength [A]
Diagram
16
14
12
10
8
6
4
2
0
= 2-pos.
= 5-pos.
= 12-pos.
= 20-pos.
0
20
40
60
80
100
Ambient temperature [°C]
Type: MC 1,5/...-STF-3,5 with MC 1,5/...-GF-3,5
11/25/2015 Page 5 / 7
https://www.phoenixcontact.com/us/products/1843855
Base strip - MC 1,5/ 8-GF-3,5 - 1843855
Diagram
Diagram
11/25/2015 Page 6 / 7
https://www.phoenixcontact.com/us/products/1843855
Base strip - MC 1,5/ 8-GF-3,5 - 1843855
Diagram
Phoenix Contact 2015 © - all rights reserved
http://www.phoenixcontact.com
11/25/2015 Page 7 / 7
