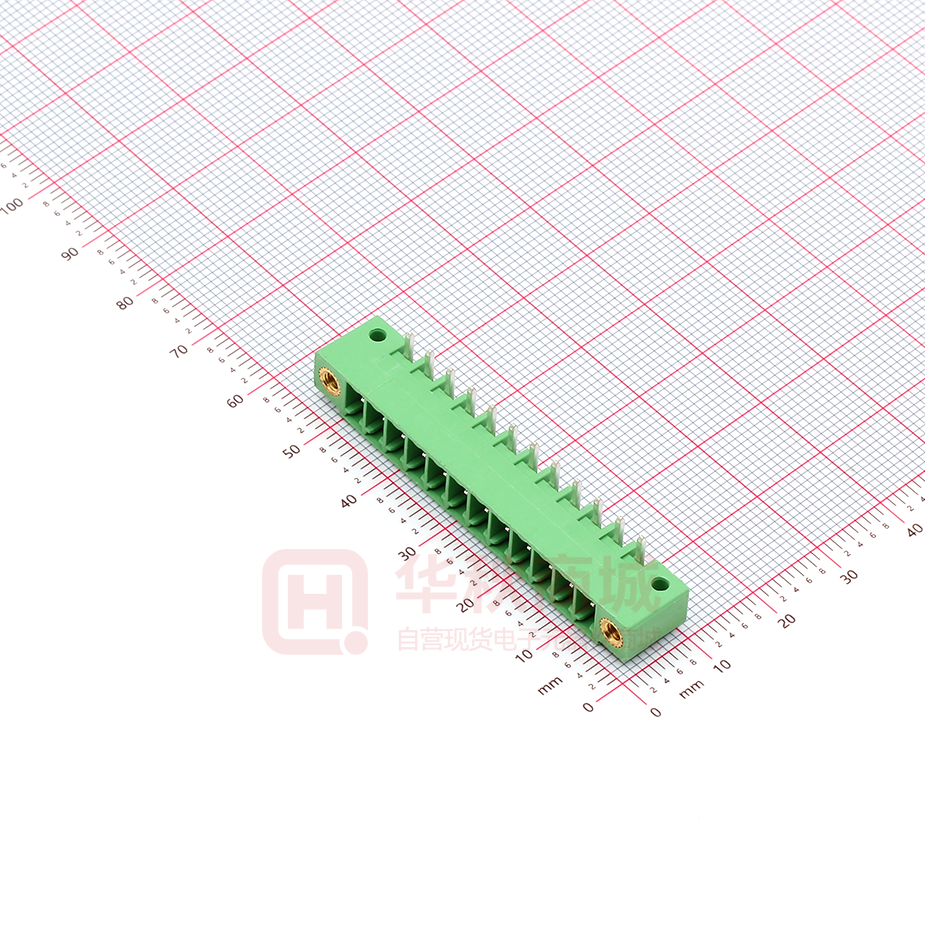

Base strip - MC 1.5/12-GF-3.5 - 1843897
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 12, Pitch: 3.5 mm,
Color: green, Contact surface: Tin, Assembly: Soldering
The figure shows a 10-position
version of the product
Why buy this product
Versions with engagement noses for locking plugs with self-locking flanges
Plug-in direction parallel and vertical to the PCB
Low-profile pin strips with compact pitches
Individual position keying by inserting keying profiles
Key commercial data
Packing unit
1
Minimum order quantity
50
Catalog page
Page 213 (CC-2011)
GTIN
Custom tariff number
85366990
Country of origin
GERMANY
Technical data
Dimensions / positions
Length
9.2 mm
Height
7.7 mm
Pitch
3.5 mm
Dimension a
38.5 mm
Number of positions
12
Pin dimensions
0,8 x 0,8 mm
Hole diameter
1.2 mm
Technical data
Range of articles
MC 1,5/..-GF
Insulating material group
IIIa
26.10.2012 Page 1 / 6
https://www.phoenixcontact.com/us/produkte/1843897
Base strip - MC 1.5/12-GF-3.5 - 1843897
Technical data
Technical data
Rated surge voltage (III/3)
2.5 kV
Rated surge voltage (III/2)
2.5 kV
Rated surge voltage (II/2)
2.5 kV
Rated voltage (III/2)
160 V
Rated voltage (II/2)
250 V
Connection in acc. with standard
EN-VDE
Nominal current IN
8A
Nominal voltage UN
160 V
Maximum load current
8A
Insulating material
PBT
Inflammability class according to UL 94
V0
Color
green
Nominal voltage, UL/CUL Use Group B
300 V
Nominal current, UL/CUL Use Group B
8A
Nominal voltage, UL/CUL Use Group D
300 V
Nominal current, UL/CUL Use Group D
8A
Classifications
eclass
eCl@ss 4.0
272607xx
eCl@ss 4.1
27260701
eCl@ss 5.0
27260701
eCl@ss 5.1
27260701
eCl@ss 6.0
27260704
eCl@ss 7.0
27440402
etim
ETIM 3.0
EC001121
ETIM 4.0
EC002637
ETIM 5.0
EC002637
unspsc
UNSPSC 6.01
30211810
UNSPSC 7.0901
39121409
UNSPSC 11
39121409
UNSPSC 12.01
39121409
UNSPSC 13.2
39121409
Approvals
Approvals
26.10.2012 Page 2 / 6
https://www.phoenixcontact.com/us/produkte/1843897
Base strip - MC 1.5/12-GF-3.5 - 1843897
Approvals
Approvals
CSA / UL Recognized / VDE report with production monitoring / cUL Recognized / GOST / IECEE CB Scheme / GOST / cULus
Recognized
Ex Approvals
Approvals submitted
Approval details
CSA
B
D
Nominal current IN
8A
8A
Nominal voltage UN
300 V
300 V
B
D
Nominal current IN
8A
8A
Nominal voltage UN
300 V
300 V
UL Recognized
VDE report with production monitoring
Nominal current IN
8A
Nominal voltage UN
160 V
cUL Recognized
B
D
Nominal current IN
8A
8A
Nominal voltage UN
300 V
300 V
GOST
26.10.2012 Page 3 / 6
https://www.phoenixcontact.com/us/produkte/1843897
Base strip - MC 1.5/12-GF-3.5 - 1843897
Approvals
IECEE CB Scheme
Nominal current IN
8A
Nominal voltage UN
160 V
GOST
cULus Recognized
Accessories
Accessories
Marking
Marker cards - SK 3,5/2,8:FORTL.ZAHLEN - 0804073
Marker cards, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 99,
Mounting type: Adhesive, For terminal block width: 3.5 mm
Plug/Adapter
Coding profile - CP-MSTB - 1734634
Keying profile, is inserted into the slot on the plug or inverted header, red insulating material
Fiber optics - MC 1,5/10-LWL 1,5-3,5 - 1841161
Fiber optics, Pitch: 3.5 mm, Number of positions: 10, Dimension a: 1.5 mm, Color: transparent
26.10.2012 Page 4 / 6
https://www.phoenixcontact.com/us/produkte/1843897
Base strip - MC 1.5/12-GF-3.5 - 1843897
Accessories
Fiber optics - MC 1,5/10-LWL 2,3-3,5 - 1841187
Fiber optics, Pitch: 3.5 mm, Number of positions: 10, Dimension a: 2.3 mm, Color: transparent
Fiber optics - MC 1,5/10-LWL 4-3,5 - 1841200
Fiber optics, Pitch: 3.5 mm, Number of positions: 10, Dimension a: 4 mm, Color: transparent
Additional products
Printed-circuit board connector - MCVR 1,5/12-STF-3,5 - 1863408
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 12, Pitch: 3.5 mm,
Connection method: Screw connection, Color: green, Contact surface: Tin
Printed-circuit board connector - MC 1,5/12-STF-3,5 - 1847220
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 12, Pitch: 3.5 mm,
Connection method: Screw connection, Color: green, Contact surface: Tin
Printed-circuit board connector - MCVW 1,5/12-STF-3,5 - 1863107
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 12, Pitch: 3.5 mm,
Connection method: Screw connection, Color: green, Contact surface: Tin
Drawings
26.10.2012 Page 5 / 6
https://www.phoenixcontact.com/us/produkte/1843897
Base strip - MC 1.5/12-GF-3.5 - 1843897
Drilling diagram
Dimensioned drawing
a
6,9
18,7
7,25
8
3,4
11,1
8
7,1
1,2
a+13,85
9,2
2,4
0,9
4,3
3,5
4,3
a
© Phoenix Contact 2012 - all rights reserved
