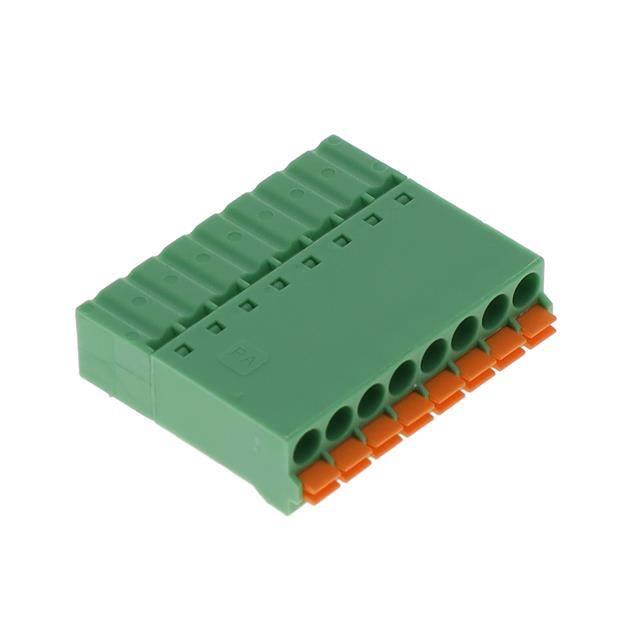

https://www.phoenixcontact.com/us/products/1844057 Printed-circuit board connector - IFMC 1,5/ 8-ST-3,5 - 1844057 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Plug component, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 8, pitch: 3.5 mm, connection method: Push-in spring connection, color: green, contact surface: Tin The figure shows a 10-position version of the product Why buy this product  Time saving push-in connection, tools not required  Defined contact force ensures that contact remains stable over the long term  Intuitive use through colour coded actuation lever  Operation and conductor connection from one direction enable integration into front of device  Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections Key Commercial Data Packing unit 1 STK GTIN GTIN 4046356947299 Weight per Piece (excluding packing) 5.200 g Custom tariff number 85366990 Country of origin Slovakia Technical data Dimensions Length [ l ] 24.6 mm Width [ w ] 28.7 mm Height [ h ] 7.8 mm Pitch 3.5 mm 01/06/2018   Page 1 / 11 https://www.phoenixcontact.com/us/products/1844057 Printed-circuit board connector - IFMC 1,5/ 8-ST-3,5 - 1844057 Technical data Dimensions Dimension a 24.5 mm General Range of articles IFMC 1,5/..-ST Type of contact Male connector Number of positions 8 Connection method Push-in spring connection Insulating material group I Rated surge voltage (III/3) 2.5 kV Rated surge voltage (III/2) 2.5 kV Rated surge voltage (II/2) 2.5 kV Rated voltage (III/3) 160 V Rated voltage (III/2) 160 V Rated voltage (II/2) 320 V Connection in acc. with standard EN-VDE Nominal current IN 8A Nominal cross section 1.5 mm² Maximum load current 8A Insulating material PA Flammability rating according to UL 94 V0 Internal cylindrical gage A1 Stripping length 10 mm Connection data Conductor cross section solid min. 0.14 mm² Conductor cross section solid max. 1.5 mm² Conductor cross section flexible min. 0.14 mm² Conductor cross section flexible max. 1.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max. 1.5 mm² Conductor cross section flexible, with ferrule with plastic sleeve min. 0.14 mm² Conductor cross section flexible, with ferrule with plastic sleeve max. 0.75 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 16 Specifications for ferrules Ferrules without insulating collar, according to DIN 46228‑1 Cross section: 0.25 mm²; Length: 5 mm ... 7 mm Cross section: 0.34 mm²; Length: 7 mm Cross section: 0.5 mm²; Length: 8 mm ... 10 mm 01/06/2018   Page 2 / 11 https://www.phoenixcontact.com/us/products/1844057 Printed-circuit board connector - IFMC 1,5/ 8-ST-3,5 - 1844057 Technical data Specifications for ferrules Cross section: 0.75 mm²; Length: 8 mm ... 10 mm Cross section: 1 mm²; Length: 8 mm ... 10 mm Cross section: 1.5 mm²; Length: 10 mm Ferrules with insulating collar, according to DIN 46228‑4 Cross section: 0.14 mm²; Length: 8 mm Cross section: 0.34 mm²; Length: 8 mm ... 10 mm Cross section: 0.5 mm²; Length: 8 mm ... 10 mm Cross section: 0.75 mm²; Length: 8 mm ... 10 mm Standards and Regulations Connection in acc. with standard EN-VDE Flammability rating according to UL 94 V0 Environmental Product Compliance China RoHS Environmentally friendly use period: unlimited = EFUP-e No hazardous substances above threshold values Drawings 16 14 12 10 8 6 4 2 0 Diagram Current strength [A] Current strength [A] Diagram = 2-pos. = 5-pos. = 12-pos. 0 10 20 30 40 50 60 70 80 18 16 14 12 10 8 6 4 2 0 90 100 110 = 2-pos. = 5-pos. = 12-pos. 0 Ambient temperature [°C] 10 20 30 40 50 60 70 80 90 100 110 Ambient temperature [°C] Type: FMC 1,5/...-ST-3,5 with IFMC 1,5/...-ST-3,5 Type: IFMC 1,5/...-ST-3,5 with IMC 1,5/...-G-3,5 P20 THR Dimensional drawing 24,6 7,8 a+4,2 2,1 3,5 a 01/06/2018   Page 3 / 11 https://www.phoenixcontact.com/us/products/1844057 Printed-circuit board connector - IFMC 1,5/ 8-ST-3,5 - 1844057 Classifications eCl@ss eCl@ss 5.1 27260701 eCl@ss 6.0 27261101 eCl@ss 8.0 27440309 eCl@ss 9.0 27440309 ETIM ETIM 5.0 EC002637 ETIM 6.0 EC002638 UNSPSC UNSPSC 13.2 39121409 Approvals Approvals Approvals cULus Recognized / VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / EAC Ex Approvals Approval details cULus Recognized    http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm   B C mm²/AWG/kcmil 24-16 24-16 Nominal current IN 8A 8A Nominal voltage UN 150 V 50 V VDE Gutachten mit Fertigungsüberwachung    http://www.vde.com/en/Institute/OnlineService/ VDE-approved-products/Pages/Online-Search.aspx     mm²/AWG/kcmil 0.2-1.5 Nominal current IN 8A  E60425-19920306  40011723 01/06/2018   Page 4 / 11 https://www.phoenixcontact.com/us/products/1844057 Printed-circuit board connector - IFMC 1,5/ 8-ST-3,5 - 1844057 Approvals     Nominal voltage UN 160 V  IECEE CB Scheme   http://www.iecee.org/     mm²/AWG/kcmil 0.2-1.5 Nominal current IN 8A Nominal voltage UN 160 V  EAC     DE1-59621-B1B2  B.01742 Accessories Accessories Connector Ferrule - A 0,25- 5 - 3202465 Ferrule, sleeve length: 5 mm, length: 5 mm, color: silver     Ferrule - A 0,25- 7 - 3202478 Ferrule, sleeve length: 7 mm, length: 7 mm, color: silver     01/06/2018   Page 5 / 11 https://www.phoenixcontact.com/us/products/1844057 Printed-circuit board connector - IFMC 1,5/ 8-ST-3,5 - 1844057 Accessories Ferrule - A 0,34- 7 - 3009202 Ferrule, sleeve length: 7 mm, length: 7 mm, color: silver     Ferrule - A 0,5 - 8 - 3202481 Ferrule, sleeve length: 8 mm, length: 8 mm, color: silver     Ferrule - A 0,5 -10 - 3202494 Ferrule, sleeve length: 10 mm, length: 10 mm, color: silver     Ferrule - A 0,75- 8 - 3202504 Ferrule, sleeve length: 8 mm, length: 8 mm, color: silver     Ferrule - A 0,75-10 - 3200234 Ferrule, sleeve length: 10 mm, length: 10 mm, color: silver     01/06/2018   Page 6 / 11 https://www.phoenixcontact.com/us/products/1844057 Printed-circuit board connector - IFMC 1,5/ 8-ST-3,5 - 1844057 Accessories Ferrule - A 1 - 8 - 3202517 Ferrule, sleeve length: 8 mm, length: 8 mm, color: silver     Ferrule - A 1 -10 - 3200250 Ferrule, sleeve length: 10 mm, length: 10 mm, color: silver     Ferrule - A 1,5 -10 - 3200276 Ferrule, sleeve length: 10 mm, length: 10 mm, color: silver     Ferrule - AI 0,14- 8 GY -1000 - 3203011 Ferrule, sleeve length: 8 mm, length: 12.5 mm, color: gray     Ferrule - AI 0,34- 8 TQ - 3203066 Ferrule, sleeve length: 8 mm, length: 12.5 mm, color: turquoise     01/06/2018   Page 7 / 11 https://www.phoenixcontact.com/us/products/1844057 Printed-circuit board connector - IFMC 1,5/ 8-ST-3,5 - 1844057 Accessories Ferrule - AI 0,34-10 TQ - 3241129 Ferrule, sleeve length: 10 mm, length: 14.5 mm, color: turquoise     Ferrule - AI 0,5 - 8 WH - 3200014 Ferrule, sleeve length: 8 mm, length: 14 mm, color: white     Ferrule - AI 0,5 -10 WH - 3201275 Ferrule, sleeve length: 10 mm, length: 16 mm, color: white     Ferrule - AI 0,75- 8 GY - 3200519 Ferrule, sleeve length: 8 mm, length: 14 mm, color: gray     Ferrule - AI 0,75-10 GY - 3201288 Ferrule, sleeve length: 10 mm, length: 16 mm, color: gray     01/06/2018   Page 8 / 11 https://www.phoenixcontact.com/us/products/1844057 Printed-circuit board connector - IFMC 1,5/ 8-ST-3,5 - 1844057 Accessories Ferrule - AI 0,25- 8 YE - 3203037 Ferrule, sleeve length: 8 mm, length: 12.5 mm, color: yellow     Crimping tool Crimping pliers - CRIMPFOX 6 - 1212034 Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm² ... 6.0 mm², lateral entry, trapezoidal crimp     Labeled terminal marker Marker card - SK 3,5/2,8:FORTL.ZAHLEN - 0804073 Marker card, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 99, mounting type: adhesive, for terminal block width: 3.5 mm, lettering field size: 3.5 x 2.8 mm     Marker pen Marker pen - B-STIFT - 1051993 Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm     Screwdriver tools 01/06/2018   Page 9 / 11 https://www.phoenixcontact.com/us/products/1844057 Printed-circuit board connector - IFMC 1,5/ 8-ST-3,5 - 1844057 Accessories Screwdriver - SZS 0,4X2,5 VDE - 1205037 Screwdriver, slot-headed, VDE insulated, size: 0.4 x 2.5 x 80 mm, 2-component grip, with non-slip grip     Terminal marking Marker card - SK U/2,8 WH:UNBEDRUCKT - 0803883 Marker card, Sheet, white, unlabeled, can be labeled with: CMS-P1-PLOTTER, PLOTMARK, Office printing systems, mounting type: adhesive, for terminal block width: 210 mm, lettering field size: 186 x 2.8 mm     Additional products Printed-circuit board connector - FMC 1,5/ 8-ST-3,5 - 1952322 Plug component, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 8, pitch: 3.5 mm, connection method: Push-in spring connection, color: green, contact surface: Tin     Base strip - IMC 1,5/ 8-G-3,5 P20 THR - 1830472 Header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 8, pitch: 3.5 mm, color: black, contact surface: Tin, mounting: THR soldering     Base strip - IMCV 1,5/ 8-G-3,5 P20 THR - 1830773 Header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 8, pitch: 3.5 mm, color: black, contact surface: Tin, mounting: THR soldering     01/06/2018   Page 10 / 11 https://www.phoenixcontact.com/us/products/1844057 Printed-circuit board connector - IFMC 1,5/ 8-ST-3,5 - 1844057 Accessories Phoenix Contact 2018 © - all rights reserved http://www.phoenixcontact.com 01/06/2018   Page 11 / 11
