Printed-circuit board connector - IFMC 1,5/ 9-ST-3,5-RN - 1844170
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
PCB connector, nominal current: 8 A, number of positions: 9, pitch: 3.5 mm, connection method: Push-in spring
connection, color: green, contact surface: Tin

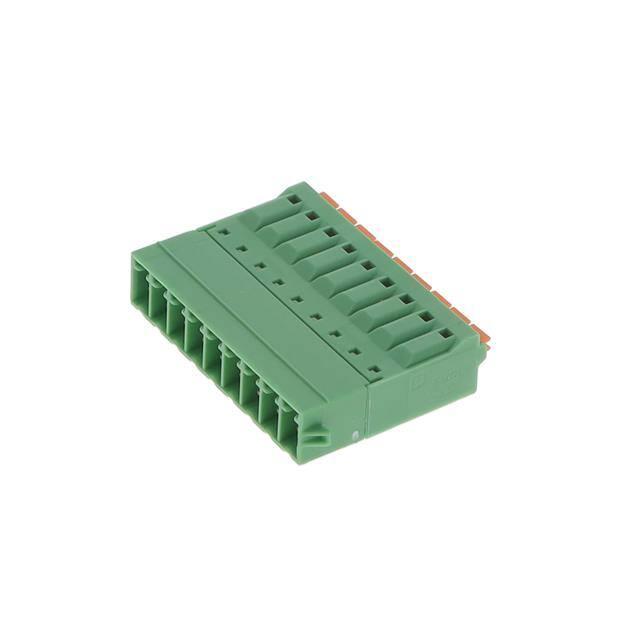

The figure shows a 10-position
version of the product
Your advantages
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive use through colour coded actuation lever
Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections
Intuitive locking mechanism prevents accidental disconnection
Key Commercial Data
Packing unit
1 pc
GTIN
GTIN
4046356947527
Weight per Piece (excluding packing)
5.600 g
Custom tariff number
85366990
Country of origin
Slovakia
Technical data
Dimensions
Length [ l ]
24.6 mm
Width [ w ]
35.1 mm
Height [ h ]
7.8 mm
Pitch
3.5 mm
09/08/2019 Page 1 / 10
https://www.phoenixcontact.com/us/products/1844170
Printed-circuit board connector - IFMC 1,5/ 9-ST-3,5-RN - 1844170
Technical data
Dimensions
Dimension a
28 mm
General
Range of articles
IFMC 1,5/..-ST-RN
Number of positions
9
Connection method
Push-in spring connection
Insulating material group
I
Rated surge voltage (III/3)
2.5 kV
Rated surge voltage (III/2)
2.5 kV
Rated surge voltage (II/2)
2.5 kV
Rated voltage (III/3)
160 V
Rated voltage (III/2)
160 V
Rated voltage (II/2)
320 V
Connection in acc. with standard
EN-VDE
Nominal current IN
8A
Nominal cross section
1.5 mm²
Maximum load current
8A
Insulating material
PA
Flammability rating according to UL 94
V0
Internal cylindrical gage
A1
Stripping length
10 mm
Connection data
Conductor cross section solid min.
0.14 mm²
Conductor cross section solid max.
1.5 mm²
Conductor cross section flexible min.
0.14 mm²
Conductor cross section flexible max.
1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.
0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.
1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.
0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.
0.75 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
16
Specifications for ferrules
Recommended crimping pliers
1212034 CRIMPFOX 6
Ferrules without insulating collar, according to DIN 46228‑1
Cross section: 0.25 mm²; Length: 5 mm ... 7 mm
Cross section: 0.34 mm²; Length: 7 mm
Cross section: 0.5 mm²; Length: 8 mm ... 10 mm
09/08/2019 Page 2 / 10
https://www.phoenixcontact.com/us/products/1844170
Printed-circuit board connector - IFMC 1,5/ 9-ST-3,5-RN - 1844170
Technical data
Specifications for ferrules
Cross section: 0.75 mm²; Length: 8 mm ... 10 mm
Cross section: 1 mm²; Length: 8 mm ... 10 mm
Cross section: 1.5 mm²; Length: 10 mm
Standards and Regulations
Connection in acc. with standard
EN-VDE
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Diagram
Type: FMC 1,5/...-ST-3,5-RF with IFMC 1,5/...-ST-3,5-RN
09/08/2019 Page 3 / 10
https://www.phoenixcontact.com/us/products/1844170
Printed-circuit board connector - IFMC 1,5/ 9-ST-3,5-RN - 1844170
Dimensional drawing
Classifications
eCl@ss
eCl@ss 4.0
27260700
eCl@ss 4.1
27260700
eCl@ss 5.0
27260700
eCl@ss 5.1
27260700
eCl@ss 6.0
27260700
eCl@ss 7.0
27440309
eCl@ss 8.0
27440309
eCl@ss 9.0
27440309
ETIM
ETIM 5.0
EC002637
ETIM 6.0
EC002638
ETIM 7.0
EC002638
UNSPSC
UNSPSC 13.2
39121409
Approvals
Approvals
Approvals
IECEE CB Scheme / VDE Gutachten mit Fertigungsüberwachung / EAC / cULus Recognized
09/08/2019 Page 4 / 10
https://www.phoenixcontact.com/us/products/1844170
Printed-circuit board connector - IFMC 1,5/ 9-ST-3,5-RN - 1844170
Approvals
Ex Approvals
Approval details
IECEE CB Scheme
http://www.iecee.org/
Nominal voltage UN
160 V
Nominal current IN
8A
mm²/AWG/kcmil
0.2-1.5
VDE Gutachten mit
Fertigungsüberwachung
DE1-60987-B1B2
http://www2.vde.com/de/Institut/Online-Service/
VDE-gepruefteProdukte/Seiten/Online-Suche.aspx
Nominal voltage UN
160 V
Nominal current IN
8A
mm²/AWG/kcmil
0.2-1.5
40011723
EAC
B.01742
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
E60425-19920306
B
C
Nominal voltage UN
150 V
50 V
Nominal current IN
8A
8A
mm²/AWG/kcmil
24-16
24-16
Accessories
Accessories
Cable end sleeve
09/08/2019 Page 5 / 10
https://www.phoenixcontact.com/us/products/1844170
Printed-circuit board connector - IFMC 1,5/ 9-ST-3,5-RN - 1844170
Accessories
Ferrule - A 0,25- 5 - 3202465
Ferrule, length: 5 mm, color: silver
Ferrule - A 0,25- 7 - 3202478
Ferrule, length: 7 mm, color: silver
Ferrule - A 0,34- 7 - 3009202
Ferrule, length: 7 mm, color: silver
Ferrule - A 0,5 - 8 - 3202481
Ferrule, length: 8 mm, color: silver
Ferrule - A 0,5 -10 - 3202494
Ferrule, length: 10 mm, color: silver
09/08/2019 Page 6 / 10
https://www.phoenixcontact.com/us/products/1844170
Printed-circuit board connector - IFMC 1,5/ 9-ST-3,5-RN - 1844170
Accessories
Ferrule - A 0,75- 8 - 3202504
Ferrule, length: 8 mm, color: silver
Ferrule - A 0,75-10 - 3200234
Ferrule, length: 10 mm, color: silver
Ferrule - A 1 - 8 - 3202517
Ferrule, length: 8 mm, color: silver
Ferrule - A 1 -10 - 3200250
Ferrule, length: 10 mm, color: silver
Ferrule - A 1,5 -10 - 3200276
Ferrule, length: 10 mm, color: silver
09/08/2019 Page 7 / 10
https://www.phoenixcontact.com/us/products/1844170
Printed-circuit board connector - IFMC 1,5/ 9-ST-3,5-RN - 1844170
Accessories
Ferrule - AI 0,14- 8 GY -1000 - 3203011
Ferrule, sleeve length: 8 mm, length: 12.5 mm, color: gray
Ferrule - AI 0,34- 8 TQ - 3203066
Ferrule, sleeve length: 8 mm, length: 12.5 mm, color: turquoise
Ferrule - AI 0,34-10 TQ - 3241129
Ferrule, sleeve length: 10 mm, length: 14.5 mm, color: turquoise
Ferrule - AI 0,5 - 8 WH - 3200014
Ferrule, sleeve length: 8 mm, length: 14 mm, color: white
Ferrule - AI 0,5 -10 WH - 3201275
Ferrule, sleeve length: 10 mm, length: 16 mm, color: white
09/08/2019 Page 8 / 10
https://www.phoenixcontact.com/us/products/1844170
Printed-circuit board connector - IFMC 1,5/ 9-ST-3,5-RN - 1844170
Accessories
Ferrule - AI 0,75- 8 GY - 3200519
Ferrule, sleeve length: 8 mm, length: 14 mm, color: gray
Ferrule - AI 0,75-10 GY - 3201288
Ferrule, sleeve length: 10 mm, length: 16 mm, color: gray
Ferrule - AI 0,25- 8 YE - 3203037
Ferrule, sleeve length: 8 mm, length: 12.5 mm, color: yellow
Crimping tool
Crimping pliers - CRIMPFOX 6 - 1212034
Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar
according to DIN 46228 Part 4, 0.25 mm² ... 6.0 mm², lateral entry, trapezoidal crimp
Marker pen
Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
09/08/2019 Page 9 / 10
https://www.phoenixcontact.com/us/products/1844170
Printed-circuit board connector - IFMC 1,5/ 9-ST-3,5-RN - 1844170
Accessories
Screwdriver tools
Screwdriver - SZS 0,4X2,5 VDE - 1205037
Screwdriver, slot-headed, VDE insulated, size: 0.4 x 2.5 x 80 mm, 2-component grip, with non-slip grip
Terminal marking
Marker card - SK U/2,8 WH:UNBEDRUCKT - 0803883
Marker card, Sheet, white, unlabeled, can be labeled with: PLOTMARK, CMS-P1-PLOTTER, Office printing systems,
mounting type: adhesive, for terminal block width: 210 mm, lettering field size: 186 x 2.8 mm, Number of individual labels:
3600
Marker card - SK U/2,8 WH:UNBEDRUCKT - 0803883
Marker card, Sheet, white, unlabeled, can be labeled with: PLOTMARK, CMS-P1-PLOTTER, Office printing systems,
mounting type: adhesive, for terminal block width: 210 mm, lettering field size: 186 x 2.8 mm, Number of individual labels:
3600
Additional products
Printed-circuit board connector - FMC 1,5/ 9-ST-3,5-RF - 1952092
PCB connector, nominal current: 8 A, number of positions: 9, pitch: 3.5 mm, connection method: Push-in spring
connection, color: green, contact surface: Tin
