MC 1,5/ 3-G-3,5
Order No.: 1844223

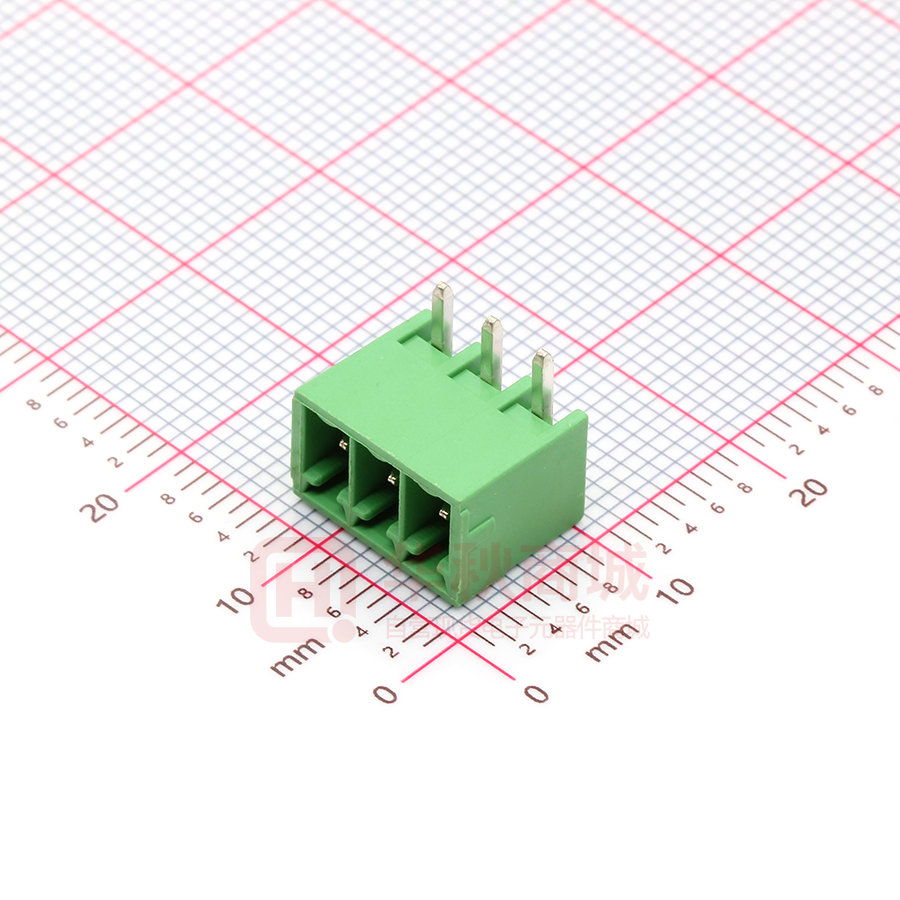

The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1844223
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.5 mm,
Number of positions: 3, Color: green, Assembly: Soldering
Product notes
WEEE/RoHS-compliant since:
01/01/2003
Commercial data
EAN
4017918113261
Pack
50 pcs.
Customs tariff
85366990
Weight/Piece
0.000963 KG
Catalog page information
Page 174 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions / positions
Length
9.2 mm
Pitch
3.5 mm
Dimension a
7 mm
Number of positions
3
Pin dimensions
0,8 x 0,8 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 5
Mar 11, 2010
MC 1,5/ 3-G-3,5 Order No.: 1844223
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1844223
Hole diameter
1.2 mm
Technical data
Insulating material group
IIIa
Rated surge voltage (III/3)
2.5 kV
Rated surge voltage (III/2)
2.5 kV
Rated surge voltage (II/2)
2.5 kV
Rated voltage (III/2)
160 V
Rated voltage (II/2)
250 V
Connection in acc. with standard
EN-VDE
Nominal current IN
8A
Nominal voltage UN
160 V
Maximum load current
8A
Insulating material
PBT
Inflammability class acc. to UL 94
V0
Certificates / Approvals
Certification
CB, CSA, CUL, GOST, UL, VDE-PZI
CSA
Nominal voltage UN
300 V
Nominal current IN
8A
CUL
Nominal voltage UN
300 V
Nominal current IN
8A
UL
Nominal voltage UN
300 V
Nominal current IN
8A
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 5
Mar 11, 2010
MC 1,5/ 3-G-3,5 Order No.: 1844223
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1844223
Accessories
Item
Designation
Description
1841161
MC 1,5/10-LWL 1,5-3,5
Fiber optics, Pitch: 3.5 mm, Number of positions: 10, Dimension a:
1.5 mm, Color: transparent
1841187
MC 1,5/10-LWL 2,3-3,5
Fiber optics, Pitch: 3.5 mm, Number of positions: 10, Dimension a:
2.3 mm, Color: transparent
1841200
MC 1,5/10-LWL 4-3,5
Fiber optics, Pitch: 3.5 mm, Number of positions: 10, Dimension a:
4 mm, Color: transparent
SK 3,5/2,8:FORTL.ZAHLEN
Marker card, printed horizontally, self-adhesive, 10-section marker
strip, 14 identical decades marked 1-10, 11-20 etc. up to 91-100,
sufficient for 140 terminal blocks
CP-MSTB
Keying profile, is inserted into the slot on the plug or inverted
header, red insulating material
General
Marking
0804073
Plug/Adapter
1734634
Additional products
Item
Designation
Description
1840379
MC 1,5/ 3-ST-3,5
Plug component, Nominal current: 8 A, Nom. voltage: 160 V,
Pitch: 3.5 mm, Number of positions: 3, Connection type: Screw
connection, Color: green
1863165
MCVR 1,5/ 3-ST-3,5
Plug component, Nominal current: 8 A, Nom. voltage: 160 V,
Pitch: 3.5 mm, Number of positions: 3, Connection type: Screw
connection, Color: green
1862865
MCVW 1,5/ 3-ST-3,5
Plug component, Nominal current: 8 A, Nom. voltage: 160 V,
Pitch: 3.5 mm, Number of positions: 3, Connection type: Screw
connection, Color: green
General
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 5
Mar 11, 2010
MC 1,5/ 3-G-3,5 Order No.: 1844223
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1844223
Diagrams/Drawings
Drilling plan/solder pad geometry
Diagram
Dimensioned drawing
