Printed-circuit board connector - MC 1,5/ 9-STF-3,5 - 1847194
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in
the user's documentation. Our General Terms of Use for Downloads are valid
(http://download.phoenixcontact.com)
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 9, Pitch: 3.5
mm, Connection method: Screw connection, Color: green, Contact surface: Tin

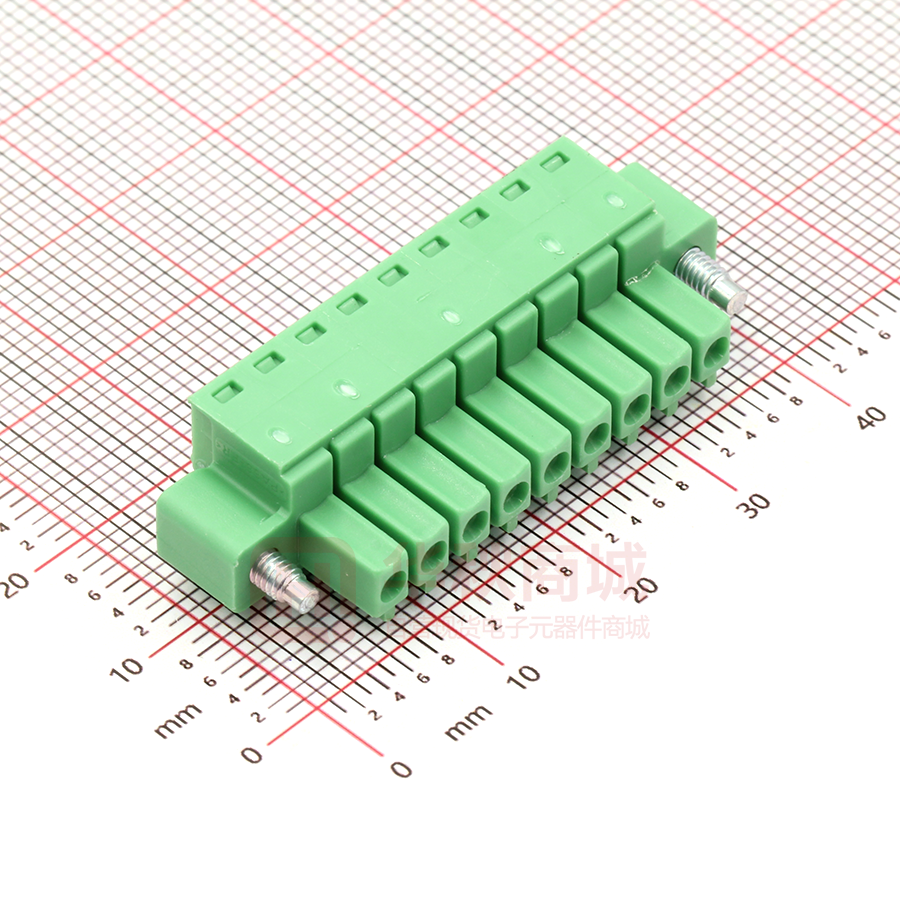

The figure shows a 10-position
version of the product
Why buy this product
Generously dimensioned wiring space
Plug-in direction parallel to the conductor axis
Low design height of the MC 1,5 plug range
Individual position keying by removing the keying tab and connecting the keying profile to the header
Key commercial data
Packing unit
1
Minimum order quantity
1000
Catalog page
Page 179 (CC-2011)
GTIN
Custom tariff number
85366990
Country of origin
GERMANY
Technical data
Dimensions / positions
Height
11.1 mm
Pitch
3.5 mm
Dimension a
28 mm
Number of positions
9
Screw thread
M2
Tightening torque, min
0.22 Nm
Tightening torque max
0.25 Nm
Technical data
Range of articles
MC 1,5/..-STF
Insulating material group
I
18.10.2012 Page 1 / 7
https://www.phoenixcontact.com/us/produkte/1847194
Printed-circuit board connector - MC 1,5/ 9-STF-3,5 - 1847194
Technical data
Technical data
Rated surge voltage (III/3)
2.5 kV
Rated surge voltage (III/2)
2.5 kV
Rated surge voltage (II/2)
2.5 kV
Rated voltage (III/2)
160 V
Rated voltage (II/2)
320 V
Connection in acc. with standard
EN-VDE
Nominal current IN
8A
Nominal voltage UN
160 V
Nominal cross section
1.5 mm²
Maximum load current
8 A (with 1.5 mm2 conductor cross section)
Insulating material
PA
Inflammability class according to UL 94
V0
Internal cylindrical gage
A1
Stripping length
7 mm
Nominal voltage, UL/CUL Use Group B
300 V
Nominal current, UL/CUL Use Group B
8A
Nominal voltage, UL/CUL Use Group D
300 V
Nominal current, UL/CUL Use Group D
8A
Connection data
Conductor cross section solid min.
0.14 mm²
Conductor cross section solid max.
1.5 mm²
Conductor cross section stranded min.
0.14 mm²
Conductor cross section stranded max.
1.5 mm²
Conductor cross section stranded, with ferrule without plastic
sleeve min.
0.25 mm²
Conductor cross section stranded, with ferrule without plastic
sleeve max.
1.5 mm²
Conductor cross section stranded, with ferrule with plastic sleeve
min.
0.25 mm²
Conductor cross section stranded, with ferrule with plastic sleeve
max.
0.5 mm²
Conductor cross section AWG/kcmil min.
28
Conductor cross section AWG/kcmil max
16
2 conductors with same cross section, solid min.
0.08 mm²
2 conductors with same cross section, solid max.
0.5 mm²
2 conductors with same cross section, stranded min.
0.08 mm²
2 conductors with same cross section, stranded max.
0.75 mm²
2 conductors with same cross section, stranded, ferrules without
plastic sleeve, min.
0.25 mm²
2 conductors with same cross section, stranded, ferrules without
plastic sleeve, max.
0.34 mm²
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, min.
0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules
with plastic sleeve, max.
0.5 mm²
18.10.2012 Page 2 / 7
https://www.phoenixcontact.com/us/produkte/1847194
Printed-circuit board connector - MC 1,5/ 9-STF-3,5 - 1847194
Technical data
Connection data
Minimum AWG according to UL/CUL
30
Maximum AWG according to UL/CUL
14
Classifications
eclass
eCl@ss 4.0
272607xx
eCl@ss 4.1
27260701
eCl@ss 5.0
27260701
eCl@ss 5.1
27260701
eCl@ss 6.0
27260704
eCl@ss 7.0
27440402
etim
ETIM 3.0
EC001121
ETIM 4.0
EC002638
ETIM 5.0
EC002638
unspsc
UNSPSC 6.01
30211810
UNSPSC 7.0901
39121409
UNSPSC 11
39121409
UNSPSC 12.01
39121409
UNSPSC 13.2
39121409
Approvals
Approvals
Approvals
CSA / UL Recognized / VDE report with production monitoring / cUL Recognized / GOST / IECEE CB Scheme / GOST / cULus
Recognized
Ex Approvals
Approvals submitted
Approval details
18.10.2012 Page 3 / 7
https://www.phoenixcontact.com/us/produkte/1847194
Printed-circuit board connector - MC 1,5/ 9-STF-3,5 - 1847194
Approvals
CSA
B
D
mm²/AWG/kcmil
28-16
28-16
Nominal current IN
8A
8A
Nominal voltage UN
300 V
300 V
B
D
mm²/AWG/kcmil
30-14
30-14
Nominal current IN
8A
8A
Nominal voltage UN
300 V
300 V
UL Recognized
VDE report with production monitoring
mm²/AWG/kcmil
0.2-1.5
Nominal current IN
8A
Nominal voltage UN
160 V
cUL Recognized
B
D
mm²/AWG/kcmil
30-14
30-14
Nominal current IN
8A
8A
Nominal voltage UN
300 V
300 V
GOST
IECEE CB Scheme
mm²/AWG/kcmil
0.2-1.5
Nominal current IN
8A
Nominal voltage UN
160 V
18.10.2012 Page 4 / 7
https://www.phoenixcontact.com/us/produkte/1847194
Printed-circuit board connector - MC 1,5/ 9-STF-3,5 - 1847194
Approvals
GOST
cULus Recognized
Accessories
Accessories
Marking
Marker cards - SK 3,5/2,8:FORTL.ZAHLEN - 0804073
Marker cards, Card, white, labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 99,
Mounting type: Adhesive, For terminal block width: 3.5 mm
Marker cards - SK U/2,8 WH:UNBEDRUCKT - 0803883
Marker cards, Sheet, white, Unlabeled, Can be labeled with: Plotter, Office-Drucksysteme, Mounting type:
Adhesive
Marker pen - B-STIFT - 1051993
Marker pen, for manual labeling of unprinted Zack strips, smear-proof and waterproof, line thickness 0.5 mm
Tools
Screwdriver - SZS 0,4X2,5 VDE - 1205037
Screwdriver, bladed, VDE insulated, size: 0.4 x 2.5 x 80 mm, 2-component grip, with non-slip grip
18.10.2012 Page 5 / 7
https://www.phoenixcontact.com/us/produkte/1847194
Printed-circuit board connector - MC 1,5/ 9-STF-3,5 - 1847194
Accessories
Cable housing - KGG-MC 1,5/ 9 - 1834411
Cable housing, Pitch: 0 mm, Number of positions: 9, Dimension a: 36.68 mm, Color: green
Additional products
Base strip - MCV 1,5/ 9-GF-3,5 - 1843295
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 9, Pitch: 3.5 mm, Color:
green, Contact surface: Tin, Assembly: Soldering
Base strip - MC 1,5/ 9-GF-3,5 - 1843868
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 9, Pitch: 3.5 mm, Color:
green, Contact surface: Tin, Assembly: Soldering
Base strip - EMCV 1,5/ 9-GF-3,5 - 1911237
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 9, Pitch: 3.5 mm, Color:
green, Contact surface: Tin, Assembly: Press-in
Base strip - EMC 1,5/ 9-GF-3,5 - 1897319
Header, Nominal current: 8 A, Rated voltage (III/2): 160 V, Number of positions: 9, Pitch: 3.5 mm, Color:
green, Contact surface: Tin, Assembly: Press-in
Drawings
18.10.2012 Page 6 / 7
https://www.phoenixcontact.com/us/produkte/1847194
Printed-circuit board connector - MC 1,5/ 9-STF-3,5 - 1847194
Dimensioned drawing
5,1
a+3,5
11,1
16,1
6,6
4,3
3,5
a
© Phoenix Contact 2012 - all rights reserved
