FK-MCP 1,5/ 3-ST-3,81
Order No.: 1851054
The figure shows a 10-position version of the product
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1851054

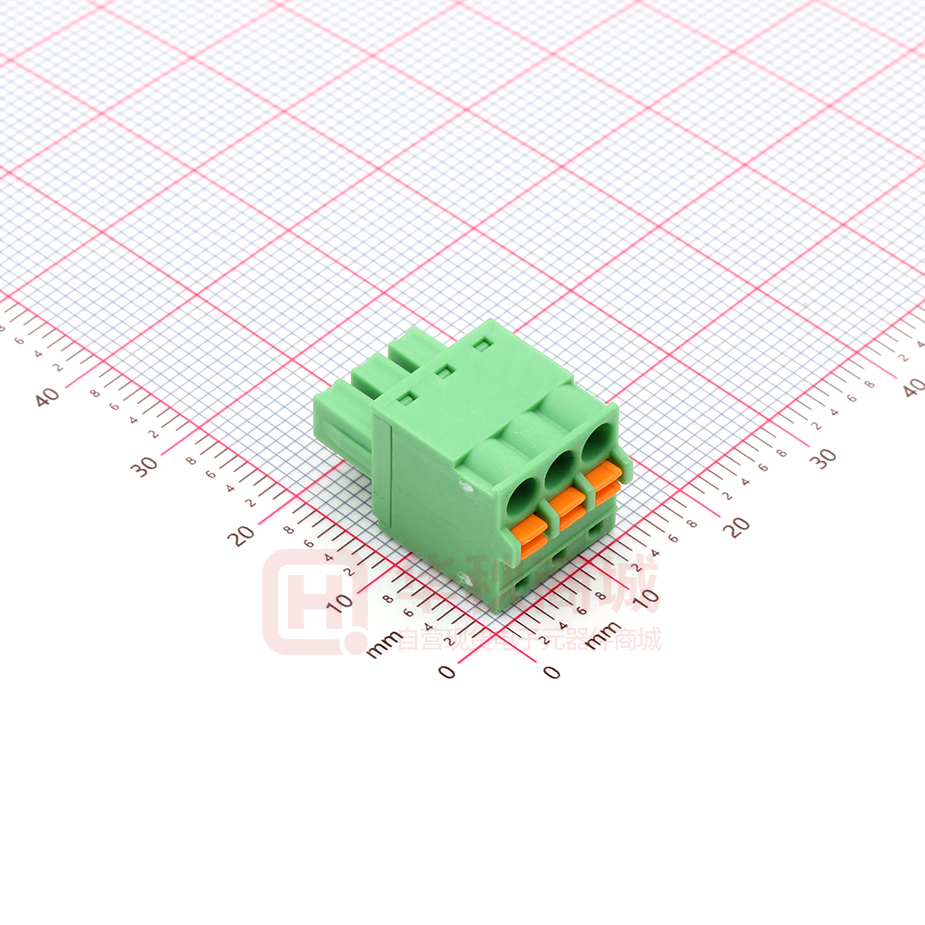

Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch:
3.81 mm, Number of positions: 3, Connection type: Spring-cage conn.,
Color: green
Product notes
WEEE/RoHS-compliant since:
01/01/2003
Commercial data
EAN
4017918109950
Pack
50 pcs.
Customs tariff
85366990
Weight/Piece
0.003072 KG
Catalog page information
Page 150 (CC-2009)
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions / positions
Pitch
3.81 mm
Dimension a
7.62 mm
Number of positions
3
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 1 / 6
Mar 11, 2010
FK-MCP 1,5/ 3-ST-3,81 Order No.: 1851054
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1851054
Technical data
Insulating material group
I
Rated surge voltage (III/3)
2.5 kV
Rated surge voltage (III/2)
2.5 kV
Rated surge voltage (II/2)
2.5 kV
Rated voltage (III/2)
160 V
Rated voltage (II/2)
320 V
Connection in acc. with standard
EN-VDE
Nominal current IN
8A
Nominal voltage UN
160 V
Nominal cross section
1.5 mm²
Maximum load current
8 A (with 1.5 mm conductor cross section)
Insulating material
PA
Inflammability class acc. to UL 94
V0
Internal cylindrical gage
A1
Stripping length
9 mm
2
Connection data
Conductor cross section solid min.
0.14 mm²
Conductor cross section solid max.
1.5 mm²
Conductor cross section stranded min.
0.14 mm²
Conductor cross section stranded max.
1.5 mm²
Conductor cross section stranded, with ferrule
without plastic sleeve min.
0.25 mm²
Conductor cross section stranded, with ferrule
without plastic sleeve max.
1.5 mm²
Conductor cross section stranded, with ferrule
with plastic sleeve min.
0.25 mm²
Conductor cross section stranded, with ferrule
with plastic sleeve max.
0.5 mm²
Conductor cross section AWG/kcmil min.
26
Conductor cross section AWG/kcmil max
16
Certificates / Approvals
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 2 / 6
Mar 11, 2010
FK-MCP 1,5/ 3-ST-3,81 Order No.: 1851054
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1851054
Certification
CB, CSA, CUL, GOST, UL, VDE-PZI
CSA
Nominal voltage UN
300 V
Nominal current IN
8A
AWG/kcmil
28-16
CUL
Nominal voltage UN
300 V
Nominal current IN
8A
AWG/kcmil
28-16
UL
Nominal voltage UN
300 V
Nominal current IN
8A
AWG/kcmil
28-16
Accessories
Item
Designation
Description
1051993
B-STIFT
Marker pen, for manual labeling of unprinted Zack strips, smearproof and waterproof, line thickness 0.5 mm
0804109
SK 3,81/2,8:FORTL.ZAHLEN
Marker card, printed horizontally, self-adhesive, 10-section marker
strip, 14 identical decades marked 1-10, 11-20 etc. up to 91(99)100, sufficient for 140 terminal blocks
0805056
SK 3,81/2,8:SO
Marker card, special printing, self-adhesive, labeled acc. to
customer requirements, 14 identical marker strips per card, max.
25-position labeling per strip, color: White
0803883
SK U/2,8 WH:UNBEDRUCKT
Unprinted marker cards, DIN A4 format, pitch as desired, selfadhesive, with 50 stamped marker strips, 185 mm strip length, can
be labeled with the CMS system or manually with the M-PEN
SZS 0,4X2,5
Screwdriver, bladed, matches all screw terminal blocks up to 1.5
mm² connection cross section, blade: 0.4 x 2.5 mm
Marking
Tools
1205037
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.de
Page 3 / 6
Mar 11, 2010
FK-MCP 1,5/ 3-ST-3,81 Order No.: 1851054
http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1851054
Additional products
Item
Designation
Description
1897814
EMC 1,5/ 3-G-3,81
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Color: green, Assembly: Press-in
1860650
EMCV 1,5/ 3-G-3,81
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Color: green, Assembly: Press-in
1857896
IMC 1,5/ 3-ST-3,81
Plug component, Nominal current: 8 A, Nom. voltage: 160 V,
Pitch: 3.81 mm, Number of positions: 3, Connection type: Screw
connection, Color: green
1803280
MC 1,5/ 3-G-3,81
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Color: green, Assembly: Soldering
1908774
MC 1,5/ 3-G-3,81 THT
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Color: black, Assembly: SMD/THT/
THR
1829963
MCD 1,5/ 3-G-3,81
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Color: green, Assembly: Soldering
1843088
MCD 1,5/ 3-G1-3,81
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Color: green, Assembly: Soldering
1830415
MCDV 1,5/ 3-G-3,81
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Color: green, Assembly: Soldering
1847738
MCDV 1,5/ 3-G1-3,81
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Color: green, Assembly: Soldering
1861730
MCO 1,5/ 3-GL-3,81
Header, Nominal current: 8 A, Nom. voltage: 125 V, Pitch: 3.81
mm, Number of positions: 3, Color: green, Assembly: Soldering
1861659
MCO 1,5/ 3-GR-3,81
Header, Nominal current: 8 A, Nom. voltage: 125 V, Pitch: 3.81
mm, Number of positions: 3, Color: green, Assembly: Soldering
1803439
MCV 1,5/ 3-G-3,81
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Color: green, Assembly: Soldering
1832701
MCVDU 1,5/ 3-G-3,81
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Color: green, Assembly: Soldering
1832743
MCVK 1,5/ 3-G-3,81
Plug component, Nominal current: 8 A, Nom. voltage: 160 V,
Pitch: 3.81 mm, Number of positions: 3, Assembly: DIN rail,
Color: green
1827282
SMC 1,5/ 3-G-3,81
Header, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81
mm, Number of positions: 3, Color: green, Assembly: Soldering
General
