Printed-circuit board connector - FK-MCP 1,5/10-ST-3,81 - 1851122
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Plug component, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.81 mm,
connection method: Push-in spring connection, color: green, contact surface: Tin

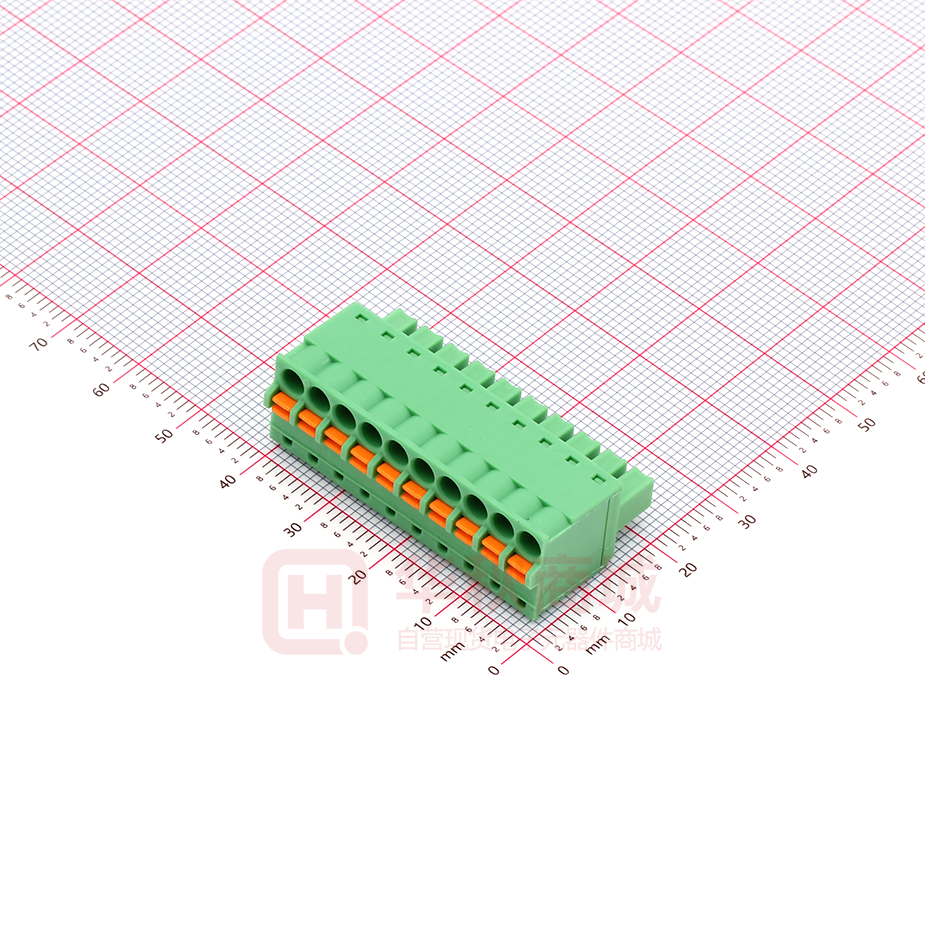

The figure shows a 10-position
version of the product
Why buy this product
Time saving push-in connection, tools not required
Defined contact force ensures that contact remains stable over the long term
Intuitive use through colour coded actuation lever
Operation and conductor connection from one direction enable integration into front of device
Quick and convenient testing using integrated test option
Key Commercial Data
Packing unit
1 STK
GTIN
GTIN
4017918109677
Weight per Piece (excluding packing)
9.620 g
Custom tariff number
85366990
Country of origin
Germany
Technical data
Dimensions
Length [ l ]
21 mm
Width [ w ]
38.89 mm
Height [ h ]
12.4 mm
Pitch
3.81 mm
04/12/2018 Page 1 / 10
https://www.phoenixcontact.com/us/products/1851122
Printed-circuit board connector - FK-MCP 1,5/10-ST-3,81 - 1851122
Technical data
Dimensions
Dimension a
34.29 mm
General
Range of articles
FK-MCP 1,5/..-ST
Type of contact
Female connector
Number of positions
10
Connection method
Push-in spring connection
Insulating material group
I
Rated surge voltage (III/3)
2.5 kV
Rated surge voltage (III/2)
2.5 kV
Rated surge voltage (II/2)
2.5 kV
Rated voltage (III/3)
160 V
Rated voltage (III/2)
160 V
Rated voltage (II/2)
320 V
Connection in acc. with standard
EN-VDE
Nominal current IN
8A
Nominal cross section
1.5 mm²
Maximum load current
8 A (with 1.5 mm² conductor cross section)
Insulating material
PA
Flammability rating according to UL 94
V0
Internal cylindrical gage
A1
Stripping length
9 mm
Connection data
Conductor cross section solid min.
0.14 mm²
Conductor cross section solid max.
1.5 mm²
Conductor cross section flexible min.
0.14 mm²
Conductor cross section flexible max.
1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.
0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.
1.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.
0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.
0.75 mm²
Conductor cross section AWG min.
26
Conductor cross section AWG max.
16
Minimum AWG according to UL/CUL
28
Maximum AWG according to UL/CUL
16
Standards and Regulations
Connection in acc. with standard
EN-VDE
04/12/2018 Page 2 / 10
https://www.phoenixcontact.com/us/products/1851122
Printed-circuit board connector - FK-MCP 1,5/10-ST-3,81 - 1851122
Technical data
Standards and Regulations
CSA
Flammability rating according to UL 94
V0
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
16
14
12
10
8
6
4
2
0
Dimensional drawing
20,8
"
! = 2-pos.
" = 5-pos.
# = 12-pos.
$ = 20-pos.
0
20
!
a+4,6
12,4
Current strength [A]
Diagram
#
$
40
60
80
6,6
100
Ambient temperature [°C]
2,3
3,81
a
Type: FK-MCP 1,5/...-ST(F)-3,81 with MC 1,5/...-G(F)-3,81 P.. THR(R...)
Classifications
eCl@ss
eCl@ss 4.0
272607xx
eCl@ss 4.1
27260701
eCl@ss 5.0
27260701
eCl@ss 5.1
27260701
eCl@ss 6.0
27260704
eCl@ss 7.0
27440402
eCl@ss 8.0
27440309
eCl@ss 9.0
27440309
ETIM
ETIM 3.0
EC001121
ETIM 4.0
EC002638
ETIM 5.0
EC002638
ETIM 6.0
EC002638
04/12/2018 Page 3 / 10
https://www.phoenixcontact.com/us/products/1851122
Printed-circuit board connector - FK-MCP 1,5/10-ST-3,81 - 1851122
Classifications
UNSPSC
UNSPSC 6.01
30211810
UNSPSC 7.0901
39121409
UNSPSC 11
39121409
UNSPSC 12.01
39121409
UNSPSC 13.2
39121409
Approvals
Approvals
Approvals
CSA / VDE Gutachten mit Fertigungsüberwachung / IECEE CB Scheme / CCA / cULus Recognized / EAC
Ex Approvals
Approval details
CSA
http://www.csagroup.org/services-industries/product-listing/
B
mm²/AWG/kcmil
28-16
Nominal current IN
8A
Nominal voltage UN
300 V
VDE Gutachten mit
Fertigungsüberwachung
http://www.vde.com/en/Institute/OnlineService/
VDE-approved-products/Pages/Online-Search.aspx
mm²/AWG/kcmil
0.2-1.5
Nominal current IN
8A
Nominal voltage UN
160 V
13631
40011723
04/12/2018 Page 4 / 10
https://www.phoenixcontact.com/us/products/1851122
Printed-circuit board connector - FK-MCP 1,5/10-ST-3,81 - 1851122
Approvals
IECEE CB Scheme
http://www.iecee.org/
mm²/AWG/kcmil
0.2-1.5
Nominal current IN
8A
Nominal voltage UN
160 V
CCA
CCA/ DE1 34219
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
E60425-19920306
mm²/AWG/kcmil
0.2-1.5
Nominal current IN
8A
Nominal voltage UN
160 V
cULus Recognized
B
mm²/AWG/kcmil
28-16
Nominal current IN
8A
Nominal voltage UN
300 V
EAC
DE1-59621-B1B2
B.01742
Accessories
Accessories
Crimping tool
Crimping pliers - CRIMPFOX 6 - 1212034
Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar
according to DIN 46228 Part 4, 0.25 mm² ... 6.0 mm², lateral entry, trapezoidal crimp
Labeled terminal marker
04/12/2018 Page 5 / 10
https://www.phoenixcontact.com/us/products/1851122
Printed-circuit board connector - FK-MCP 1,5/10-ST-3,81 - 1851122
Accessories
Marker card - SK 3,81/2,8:FORTL.ZAHLEN - 0804109
Marker card, Card, white, labeled, Horizontal: consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - (99)100, mounting
type: adhesive, for terminal block width: 3.81 mm, lettering field size: 3.81 x 2.8 mm
Screwdriver tools
Screwdriver - SZS 0,4X2,5 VDE - 1205037
Screwdriver, slot-headed, VDE insulated, size: 0.4 x 2.5 x 80 mm, 2-component grip, with non-slip grip
Terminal marking
Marker card - SK U/2,8 WH:UNBEDRUCKT - 0803883
Marker card, Sheet, white, unlabeled, can be labeled with: CMS-P1-PLOTTER, PLOTMARK, Office printing systems,
mounting type: adhesive, for terminal block width: 210 mm, lettering field size: 186 x 2.8 mm
Test plugs - MPS-MT 1-S - 1944372
Test plugs, consisting of Ø 1 mm test pin, 150 mm conductor length, and Ø 2 mm socket
Additional products
04/12/2018 Page 6 / 10
https://www.phoenixcontact.com/us/products/1851122
Printed-circuit board connector - FK-MCP 1,5/10-ST-3,81 - 1851122
Accessories
Header - MCV 1,5/10-G-3,81 P14 THR - 1707081
Header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.81 mm, color: black, contact
surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology
can be found under “Downloads”
Header - MCV 1,5/10-G-3,81 P26 THR - 1707502
Header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.81 mm, color: black, contact
surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology
can be found under “Downloads”
Header - MCV 1,5/10-G-3,81 P26 THRR56 - 1712966
Header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.81 mm, color: black, contact
surface: Tin, mounting: THR soldering, User information and design recommendations for through hole reflow technology
can be found under “Downloads”
Printed-circuit board connector - MC 1,5/10-G-3,81 P20 THRR56 - 1782653
Header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.81 mm, color: black, contact
surface: Tin, mounting: THR soldering
Printed-circuit board connector - MC 1,5/10-G-3,81 - 1803358
Header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.81 mm, color: green, contact
surface: Tin, mounting: Wave soldering
04/12/2018 Page 7 / 10
https://www.phoenixcontact.com/us/products/1851122
Printed-circuit board connector - FK-MCP 1,5/10-ST-3,81 - 1851122
Accessories
Printed-circuit board connector - MCV 1,5/10-G-3,81 - 1803507
Header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.81 mm, color: green, contact
surface: Tin, mounting: Wave soldering
Printed-circuit board connector - SMC 1,5/10-G-3,81 - 1827350
Header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.81 mm, color: green, contact
surface: Tin, mounting: Wave soldering
Header - MCD 1,5/10-G-3,81 - 1830033
Header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.81 mm, color: green, contact
surface: Tin, mounting: Wave soldering, In combination with MCV plug components, both an MCVW and an MCVR plug
must be used.
Header - MCDV 1,5/10-G-3,81 - 1830486
Header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.81 mm, color: green, contact
surface: Tin, mounting: Wave soldering, In combination with MCV plug components, both an MCVW and an MCVR plug
must be used.
Header - MCVDU 1,5/10-G-3,81 - 1837515
Header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.81 mm, color: green, contact
surface: Tin, mounting: Wave soldering
04/12/2018 Page 8 / 10
https://www.phoenixcontact.com/us/products/1851122
Printed-circuit board connector - FK-MCP 1,5/10-ST-3,81 - 1851122
Accessories
Printed-circuit board connector - MCD 1,5/10-G1-3,81 - 1843156
Header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.81 mm, color: green, contact
surface: Tin, mounting: Wave soldering, In combination with MCV plug components, both an MCVW and an MCVR plug
must be used.
Header - MCDV 1,5/10-G1-3,81 - 1847819
Header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.81 mm, color: green, contact
surface: Tin, mounting: Wave soldering, In combination with MCV plug components, both an MCVW and an MCVR plug
must be used.
Header - EMCV 1,5/10-G-3,81 - 1860728
Header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.81 mm, color: green, contact
surface: Tin, mounting: Press-in technology
Header - MCO 1,5/10-GR-3,81 - 1861727
Header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.81 mm, color: green, contact
surface: Tin, mounting: Wave soldering
Header - MCO 1,5/10-GL-3,81 - 1861808
Header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.81 mm, color: green, contact
surface: Tin, mounting: Wave soldering
04/12/2018 Page 9 / 10
https://www.phoenixcontact.com/us/products/1851122
Printed-circuit board connector - FK-MCP 1,5/10-ST-3,81 - 1851122
Accessories
Header - EMC 1,5/10-G-3,81 - 1897885
Header, nominal current: 8 A, rated voltage (III/2): 160 V, number of positions: 10, pitch: 3.81 mm, color: green, contact
surface: Tin, mounting: Press-in technology
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
04/12/2018 Page 10 / 10
