1851371

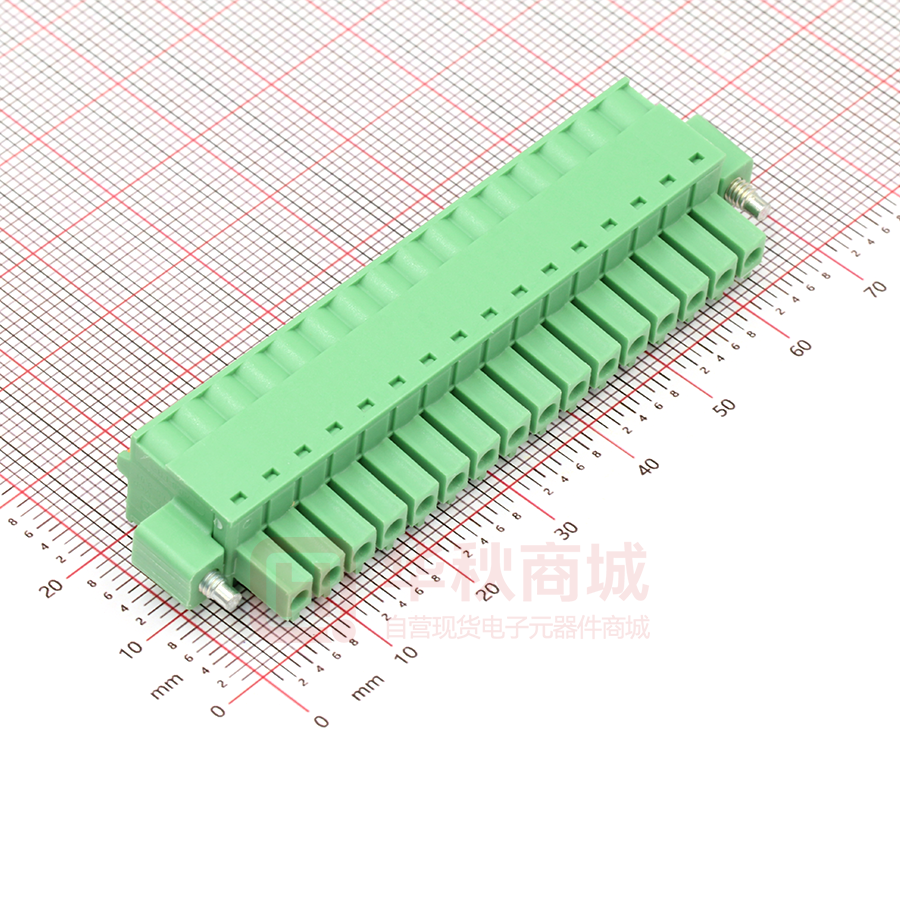

Extract from the online catalog     FK-MCP 1,5/16-STF-3,81 Order No.: 1851371 The figure shows a 10-position version of the product   nt s. Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch: 3.81 mm, Number of positions: 16, Connection type: Spring-cage conn., Color: green co   m http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1851371 ne Commercial data 4017918110130 Pack 50 pcs. Customs tariff 85366990 Weight/Piece 0.01608 KG WEEE/RoHS-compliant since: 01/01/2003 Page 151 (CC-2009) on l in ec Catalog page information om po EAN Product notes http:// www.download.phoenixcontact.com Please note that the data given here has been taken from the online catalog. For comprehensive information and data, please refer to the user documentation. The General Terms and Conditions of Use apply to Internet downloads. Technical data Dimensions / positions Pitch 3.81 mm Dimension a 57.15 mm Number of positions 16 PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 1 / 4 Feb 23, 2010 FK-MCP 1,5/16-STF-3,81 Order No.: 1851371 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1851371 Technical data I Rated surge voltage (III/3) 2.5 kV Rated surge voltage (III/2) 2.5 kV Rated surge voltage (II/2) 2.5 kV Rated voltage (III/2) 160 V Rated voltage (II/2) 320 V Connection in acc. with standard EN-VDE Nominal current IN 8A Nominal voltage UN 160 V Nominal cross section 1.5 mm² Maximum load current 8 A (with 1.5 mm conductor cross section) Insulating material PA Inflammability class acc. to UL 94 V0 Internal cylindrical gage A1 Stripping length 9 mm ne nt s. 2 co m Insulating material group po Connection data Conductor cross section solid max. 0.14 mm² om Conductor cross section solid min. 1.5 mm² 0.14 mm² Conductor cross section stranded max. 1.5 mm² in ec Conductor cross section stranded min. 0.25 mm² Conductor cross section stranded, with ferrule without plastic sleeve max. 1.5 mm² on l Conductor cross section stranded, with ferrule without plastic sleeve min. Conductor cross section stranded, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section stranded, with ferrule with plastic sleeve max. 0.5 mm² Conductor cross section AWG/kcmil min. 26 Conductor cross section AWG/kcmil max 16 Certificates / Approvals PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 2 / 4 Feb 23, 2010 FK-MCP 1,5/16-STF-3,81 Order No.: 1851371 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1851371 Certification CB, CSA, CUL, GOST, UL, VDE-PZI CSA Nominal voltage UN 300 V Nominal current IN 8A AWG/kcmil 28-16 300 V Nominal current IN 8A AWG/kcmil 28-16 co Nominal voltage UN m CUL Nominal current IN 8A AWG/kcmil 28-16 nt 300 V ne Nominal voltage UN s. UL Diagrams/Drawings on l in ec om po Dimensioned drawing PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 3 / 4 Feb 23, 2010 FK-MCP 1,5/16-STF-3,81 Order No.: 1851371 http://eshop.phoenixcontact.de/phoenix/treeViewClick.do?UID=1851371 Address s. co m PHOENIX CONTACT Deutschland GmbH Flachsmarktstr. 8 32825 Blomberg,Germany Phone +49 5235 3 12000 Fax +49 5235 3 41200 http://www.phoenixcontact.de on l in ec om po ne nt © 2010 Phoenix Contact Technical modifications reserved; PHOENIX CONTACT Deutschland GmbH http://www.phoenixcontact.de Page 4 / 4 Feb 23, 2010
