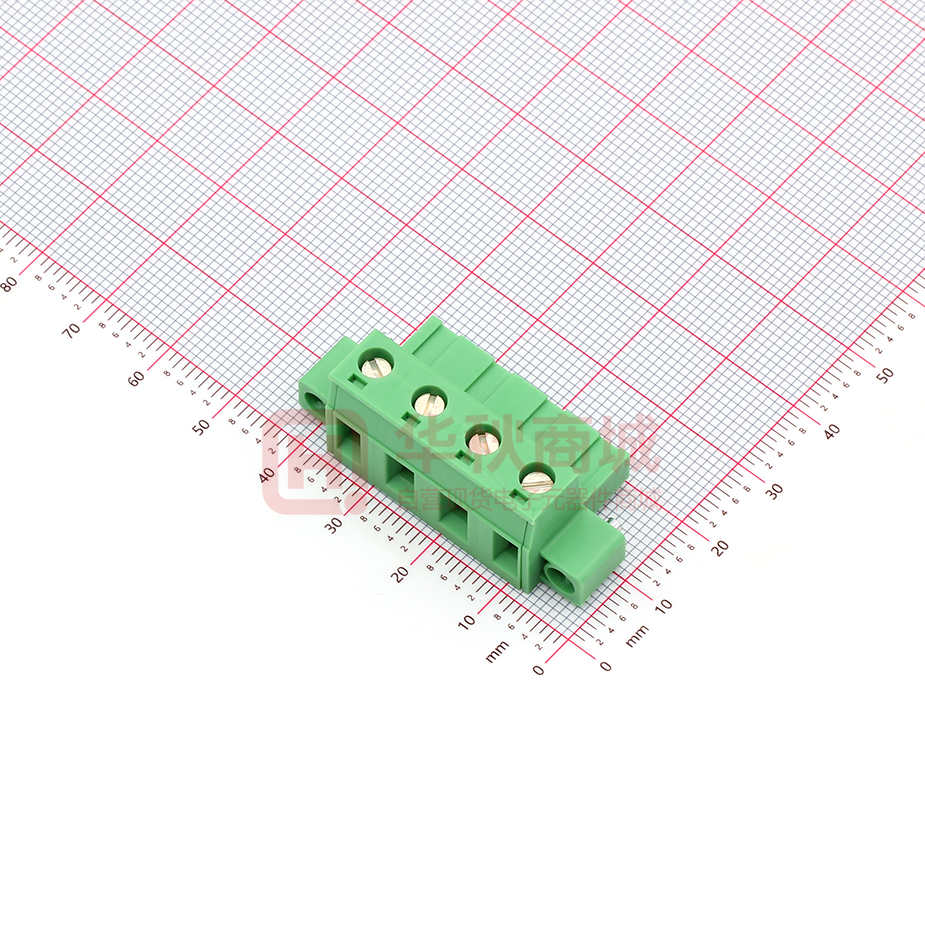

https://www.phoenixcontact.com/us/produkte/1858785 Printed-circuit board connector - GMSTB 2,5/ 4-STF-7,62 - 1858785 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://download.phoenixcontact.com) Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 4, Pitch: 7.62 mm, Connection method: Screw connection, Color: green, Contact surface: Tin The figure shows a 10-position version of the product Why buy this product  Plug-in direction parallel to the conductor axis  Plugs for 630 V applications (III/2)  FRONT-GMSTB 2,5 plug with front screw connection   Key commercial data Packing unit 1 Minimum order quantity 1 Catalog page Page 307 (CC-2011) GTIN Custom tariff number 85366990 Country of origin GERMANY Technical data Dimensions / positions Pitch 7.62 mm Dimension a 22.86 mm Number of positions 4 Screw thread M3 Tightening torque, min 0.5 Nm Tightening torque max 0.6 Nm Technical data Range of articles GMSTB 2,5/..-STF Insulating material group I Rated surge voltage (III/3) 6 kV Rated surge voltage (III/2) 6 kV 11.10.2012   Page 1 / 6 https://www.phoenixcontact.com/us/produkte/1858785 Printed-circuit board connector - GMSTB 2,5/ 4-STF-7,62 - 1858785 Technical data Technical data Rated surge voltage (II/2) 6 kV Rated voltage (III/2) 630 V Rated voltage (II/2) 1000 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Nominal voltage UN 400 V Nominal cross section 2.5 mm² Maximum load current 12 A Insulating material PA Inflammability class according to UL 94 V0 Internal cylindrical gage A3 Stripping length 7 mm Nominal voltage, UL/CUL Use Group B 250 V Nominal current, UL/CUL Use Group B 12 A Nominal voltage, UL/CUL Use Group D 300 V Nominal current, UL/CUL Use Group D 10 A Connection data Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section stranded min. 0.2 mm² Conductor cross section stranded max. 2.5 mm² Conductor cross section stranded, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section stranded, with ferrule without plastic sleeve max. 2.5 mm² Conductor cross section stranded, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section stranded, with ferrule with plastic sleeve max. 2.5 mm² Conductor cross section AWG/kcmil min. 24 Conductor cross section AWG/kcmil max 12 2 conductors with same cross section, solid min. 0.2 mm² 2 conductors with same cross section, solid max. 1 mm² 2 conductors with same cross section, stranded min. 0.2 mm² 2 conductors with same cross section, stranded max. 1.5 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. 0.25 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. 1 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. 0.5 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. 1 mm² Minimum AWG according to UL/CUL 30 11.10.2012   Page 2 / 6 https://www.phoenixcontact.com/us/produkte/1858785 Printed-circuit board connector - GMSTB 2,5/ 4-STF-7,62 - 1858785 Technical data Connection data Maximum AWG according to UL/CUL 12 Classifications eclass eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 etim ETIM 3.0 EC001121 ETIM 4.0 EC002638 ETIM 5.0 EC002638 unspsc UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals UL Recognized / VDE report with production monitoring / cUL Recognized / GOST / IECEE CB Scheme / GOST / cULus Recognized Ex Approvals Approvals submitted Approval details 11.10.2012   Page 3 / 6 https://www.phoenixcontact.com/us/produkte/1858785 Printed-circuit board connector - GMSTB 2,5/ 4-STF-7,62 - 1858785 Approvals UL Recognized    B D mm²/AWG/kcmil 30-12 30-12 Nominal current IN 12 A 10 A Nominal voltage UN 250 V 300 V VDE report with production monitoring      mm²/AWG/kcmil 0.2-2.5 Nominal current IN 12 A Nominal voltage UN 400 V cUL Recognized    B D mm²/AWG/kcmil 30-12 30-12 Nominal current IN 12 A 10 A Nominal voltage UN 250 V 300 V GOST  IECEE CB Scheme      mm²/AWG/kcmil 0.2-2.5 Nominal current IN 12 A Nominal voltage UN 400 V GOST  cULus Recognized  11.10.2012   Page 4 / 6 https://www.phoenixcontact.com/us/produkte/1858785 Printed-circuit board connector - GMSTB 2,5/ 4-STF-7,62 - 1858785 Accessories Accessories Marking Marker cards - SK 7,62/3,8:FORTL.ZAHLEN - 0804549 Marker cards, Card, white, Labeled, Horizontal: Consecutive numbers 1 - 10, 11 - 20, etc. up to 91 - 100, Mounting type: Adhesive, For terminal block width: 7.62 mm     Plug/Adapter Coding profile - CP-MSTB - 1734634 Keying profile, is inserted into the slot on the plug or inverted header, red insulating material     Tools Screwdriver - SZS 0,6X3,5 - 1205053 Actuation tool, for ST terminal blocks, insulated, also suitable for use as a bladed screwdriver, size: 0.6 x 3.5 x 100 mm, 2-component grip, with non-slip grip     Additional products Base strip - GMSTBV 2,5/ 4-GF-7,62 - 1829170 Header, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 4, Pitch: 7.62 mm, Color: green, Contact surface: Tin, Assembly: Soldering     Base strip - GMSTB 2,5/ 4-GF-7,62 - 1806245 Header, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 4, Pitch: 7.62 mm, Color: green, Contact surface: Tin, Assembly: Soldering     11.10.2012   Page 5 / 6 https://www.phoenixcontact.com/us/produkte/1858785 Printed-circuit board connector - GMSTB 2,5/ 4-STF-7,62 - 1858785 Accessories Printed-circuit board connector - GIC 2,5/ 4-STGF-7,62 - 1849901 Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 4, Pitch: 7.62 mm, Connection method: Screw connection, Color: green, Contact surface: Tin     Drawings Dimensioned drawing 5,92 a+6,17 15 18,2 8,3 6,1 7,62 a © Phoenix Contact 2012 - all rights reserved http://www.phoenixcontact.com 11.10.2012   Page 6 / 6
