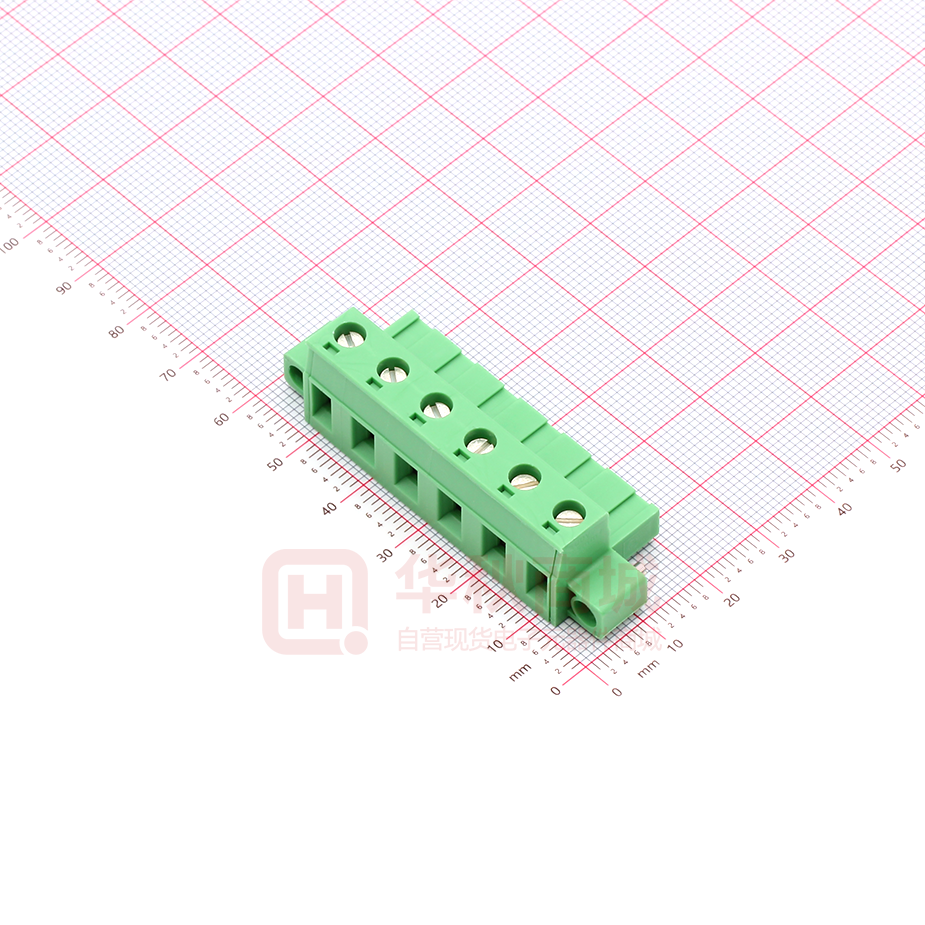

https://www.phoenixcontact.com/us/products/1858808 Printed-circuit board connector - GMSTB 2,5/ 6-STF-7,62 - 1858808 Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's documentation. Our General Terms of Use for Downloads are valid (http://phoenixcontact.com/download) Plug component, Nominal current: 12 A, Rated voltage (III/2): 630 V, Number of positions: 6, Pitch: 7.62 mm, Connection method: Screw connection with tension sleeve, Color: green, Contact surface: Tin The figure shows a 10-position version of the product Product Features ■ ■ ■ Plug-in direction parallel to the conductor axis Plugs for 630 V applications (III/2) FRONT-GMSTB 2,5 plug with front screw connection Key Commercial Data Packing unit 1 pc Weight per Piece (excluding packing) 12.75 g Custom tariff number 85366990 Country of origin Germany Technical data Dimensions Pitch 7.62 mm Dimension a 38.1 mm General Range of articles GMSTB 2,5/..-STF Insulating material group I Rated surge voltage (III/3) 6 kV Rated surge voltage (III/2) 6 kV Rated surge voltage (II/2) 6 kV 04/06/2016   Page 1 / 5 https://www.phoenixcontact.com/us/products/1858808 Printed-circuit board connector - GMSTB 2,5/ 6-STF-7,62 - 1858808 Technical data General Rated voltage (III/3) 400 V Rated voltage (III/2) 630 V Rated voltage (II/2) 1000 V Connection in acc. with standard EN-VDE Nominal current IN 12 A Nominal cross section 2.5 mm² Maximum load current 12 A Insulating material PA Flammability rating according to UL 94 V0 Internal cylindrical gage A3 Stripping length 7 mm Number of positions 6 Screw thread M3 Tightening torque, min 0.5 Nm Tightening torque max 0.6 Nm Connection data Conductor cross section solid min. 0.2 mm² Conductor cross section solid max. 2.5 mm² Conductor cross section flexible min. 0.2 mm² Conductor cross section flexible max. 2.5 mm² Conductor cross section flexible, with ferrule without plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule without plastic sleeve max. 2.5 mm² Conductor cross section flexible, with ferrule with plastic sleeve min. 0.25 mm² Conductor cross section flexible, with ferrule with plastic sleeve max. 2.5 mm² Conductor cross section AWG min. 24 Conductor cross section AWG max. 12 2 conductors with same cross section, solid min. 0.2 mm² 2 conductors with same cross section, solid max. 1 mm² 2 conductors with same cross section, stranded min. 0.2 mm² 2 conductors with same cross section, stranded max. 1.5 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. 0.25 mm² 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. 1 mm² 2 conductors with same cross section, stranded, TWIN ferrules with plastic 0.5 mm² sleeve, min. 2 conductors with same cross section, stranded, TWIN ferrules with plastic 1 mm² sleeve, max. 04/06/2016   Page 2 / 5 https://www.phoenixcontact.com/us/products/1858808 Printed-circuit board connector - GMSTB 2,5/ 6-STF-7,62 - 1858808 Technical data Connection data Minimum AWG according to UL/CUL 30 Maximum AWG according to UL/CUL 12 Standards and Regulations Connection in acc. with standard EN-VDE CUL Flammability rating according to UL 94 V0 Classifications eCl@ss eCl@ss 4.0 272607xx eCl@ss 4.1 27260701 eCl@ss 5.0 27260701 eCl@ss 5.1 27260701 eCl@ss 6.0 27260704 eCl@ss 7.0 27440402 eCl@ss 8.0 27440309 eCl@ss 9.0 27440309 ETIM ETIM 3.0 EC001121 ETIM 4.0 EC002638 ETIM 5.0 EC002638 UNSPSC UNSPSC 6.01 30211810 UNSPSC 7.0901 39121409 UNSPSC 11 39121409 UNSPSC 12.01 39121409 UNSPSC 13.2 39121409 Approvals Approvals Approvals UL Recognized / VDE Gutachten mit Fertigungsüberwachung / cUL Recognized / EAC / IECEE CB Scheme / EAC / cULus Recognized 04/06/2016   Page 3 / 5 https://www.phoenixcontact.com/us/products/1858808 Printed-circuit board connector - GMSTB 2,5/ 6-STF-7,62 - 1858808 Approvals Ex Approvals Approvals submitted Approval details UL Recognized    B D mm²/AWG/kcmil 30-12 30-12 Nominal current IN 15 A 10 A Nominal voltage UN 300 V 300 V VDE Gutachten mit Fertigungsüberwachung      mm²/AWG/kcmil 0.2-2.5 Nominal current IN 12 A Nominal voltage UN 400 V cUL Recognized    B D mm²/AWG/kcmil 30-12 30-12 Nominal current IN 15 A 10 A Nominal voltage UN 300 V 300 V EAC  04/06/2016   Page 4 / 5 https://www.phoenixcontact.com/us/products/1858808 Printed-circuit board connector - GMSTB 2,5/ 6-STF-7,62 - 1858808 Approvals IECEE CB Scheme      mm²/AWG/kcmil 0.2-2.5 Nominal current IN 12 A Nominal voltage UN 400 V EAC  cULus Recognized  Drawings Dimensional drawing 5,92 a+6,17 15 18,2 8,3 6,1 7,62 a Phoenix Contact 2016 © - all rights reserved http://www.phoenixcontact.com 04/06/2016   Page 5 / 5
